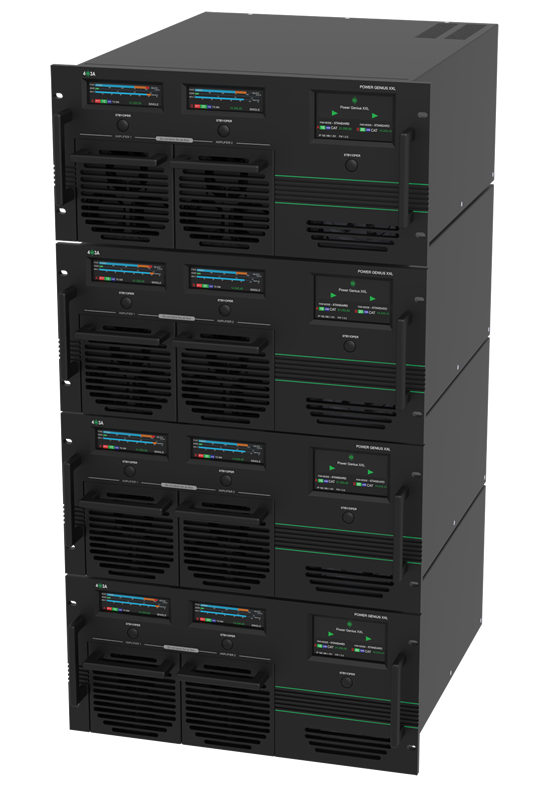

The Power Genius LNA10000 is a high-performance High-Frequency (HF) amplifier designed to deliver exceptional reliability and efficiency in continuous-duty operations.

It provides up to 10 kW Peak Envelope Power (PEP) and average power, integrating eight (8) Power Genius XXL-C units, each operating at 1300W in Continuous Commercial Service (CCS) mode. The amplifier incorporates the patented Maximum Efficiency Algorithm (MEffA™) system, enhancing efficiency in single-carrier modes such as CW, digital, and FM. An advanced protection system ensures rapid fault detection and significantly reduces failure rates, underscoring our commitment to quality and reliability.

Each Power Genius XXL-C unit utilizes four high-power NXP MRF1K50H LDMOS transistors, renowned for their robustness and efficiency. The inclusion of diplexer filter designs within each unit ensures superior harmonic suppression and optimal operating conditions for the LDMOS transistors. Independent protection circuits, equipped with precise directional couplers, monitor each pair of LDMOS transistors across the 16 RF modules, guaranteeing reliable protection and continuous operation.

The system features an auto-balancing circuit that adeptly manages imbalances between modules. In the unlikely event of a module failure, the system automatically reconfigures to exclude the faulty module, maintaining operation at -3 dB output power and promptly alerting the user

Electrical Specifications

Parameter	Specification
Frequency Range	1.5 – 30 MHz
Power Output and VSWR Performance	10 kW PEP and average ±1 dB for VSWR ≤ 2:1; Reduced power for VSWR ≤ 3:1; self-protected from open/short circuits
Duty Cycle	Continuous
Transmit Activation Time	7 ms maximum for 90% output power with band change per MIL-STD-188-203-1A
Modes of Operation	AME, NB-FM, USB, LSB, ISB, CW; Data Modes
Keying	Local or Remote
Remote Control	Remotely controllable through application
Output Impedance	50 Ω nominal, unbalanced
Output Connector	7/8 inches EIA flange (1 5/8 inches with adaptor)
Input Power	338 – 458 VAC 3-phase, 50/60 Hz
Power Consumption	≤ 35 kVA
Metering	9 x TFT Display



Mechanical specification

Parameter	Specification
Dimensions	185 H x 56 W x 80.0 L (cm)
Weight	350 kg estimated, unpacked
Cooling	Forced air; fan-cooled
Air Source and Volume	Clean filtered air

Environmental Specifications

Parameter	Specification
Operating Temperature	-20°C to +45°C (-4°F to 113°F); 45°C to 55°C (113°F to 131°F) at reduced duty cycle
Humidity	95% at +55°C, non-condensing

Performance Specifications

Parameter	Specification
Harmonic Suppression	At least 60 dB below carrier
Intermodulation Distortion	36 dBc or more, nominal



Maintenance and Support

Parameter	Specification
Spares Kits	Running spares, field modules, final tested sub-units



System Overview

The Power Genius LNA10000 exemplifies superior engineering in HF amplification, incorporating cutting-edge technology and unique patented features such as the MEffA™ system and an advanced protection mechanism. Building upon the renowned reliability and quality of its predecessor, the Power Genius XL, this model is designed to meet the rigorous demands of professional communication environments.

Key Features and Benefits:

​Exceptional Harmonic Suppression: Each of the eight units is equipped with diplexer filters, resulting in outstanding harmonic suppression. Each filter includes its own 500W dummy load on a heatsink, ensuring optimal performance and signal clarity. ​

• Modular and Maintenance-Friendly Design: The amplifier's modular architecture facilitates straightforward maintenance. Each Power Genius XXL-C module comprises easily replaceable submodules, allowing for swift servicing and minimal downtime. ​
• Uncompromising Quality Assurance: Our commitment to quality is unwavering. Each amplifier undergoes rigorous testing under demanding conditions to ensure reliability and performance. With thousands of units operational in the field, our amplifiers have consistently demonstrated exceptional durability and efficiency. ​

SDR Transceiver Integration:

Seamless Integration of Transceiver with Power Genius LNA10000 Amplifier

The integration of a transceiver with the Power Genius LNA10000 amplifier is designed for simplicity and efficiency, ensuring optimal performance in your communication setup. The amplifier communicates bi-directionally with the transceiver, continuously monitoring and adjusting critical parameters to maintain seamless operation. ​

Key Features of Integration:

• Bidirectional Communication: The Power Genius LNA10000 establishes a two-way communication link with the transceiver, allowing for real-time monitoring and control of operating parameters. This ensures that both devices work in harmony, adapting to changing conditions to maintain optimal performance. ​
• Transceiver-Controlled Output Power: Through this integrated communication, the transceiver can dynamically control the amplifier's output power. This coordination allows for precise power adjustments, enhancing signal quality and transmission efficiency. ​
• Adaptive Pre-Distortion (APD) Support: The amplifier features a -60 dBc output, specifically designed for transceivers equipped with Adaptive Pre-Distortion capabilities. APD is a technique used to improve the linearity of radio transmitter amplifiers by preemptively correcting distortions. By providing this dedicated output, the Power Genius LNA10000 enables transceivers to utilize APD effectively, resulting in cleaner transmissions with reduced spectral regrowth and intermodulation distortion.​

This thoughtful integration of the Power Genius LNA10000 with compatible transceivers ensures a robust and adaptable communication system, capable of delivering high-quality signals across various operating conditions.
