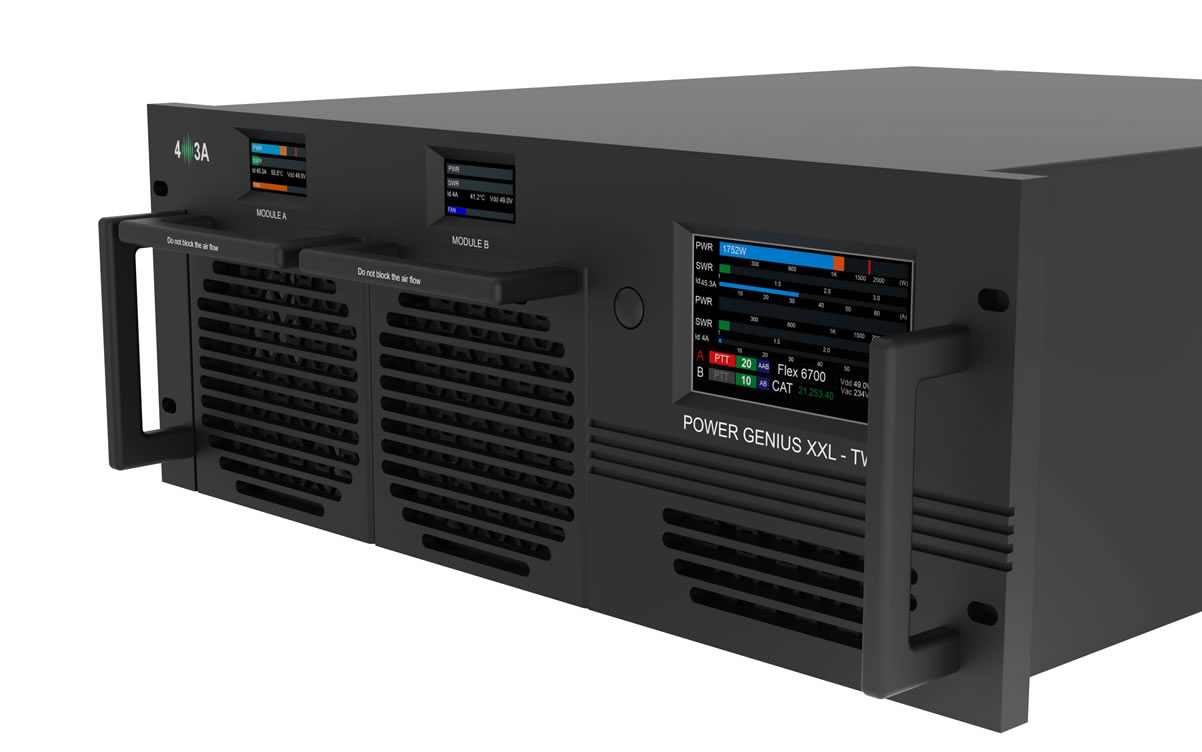

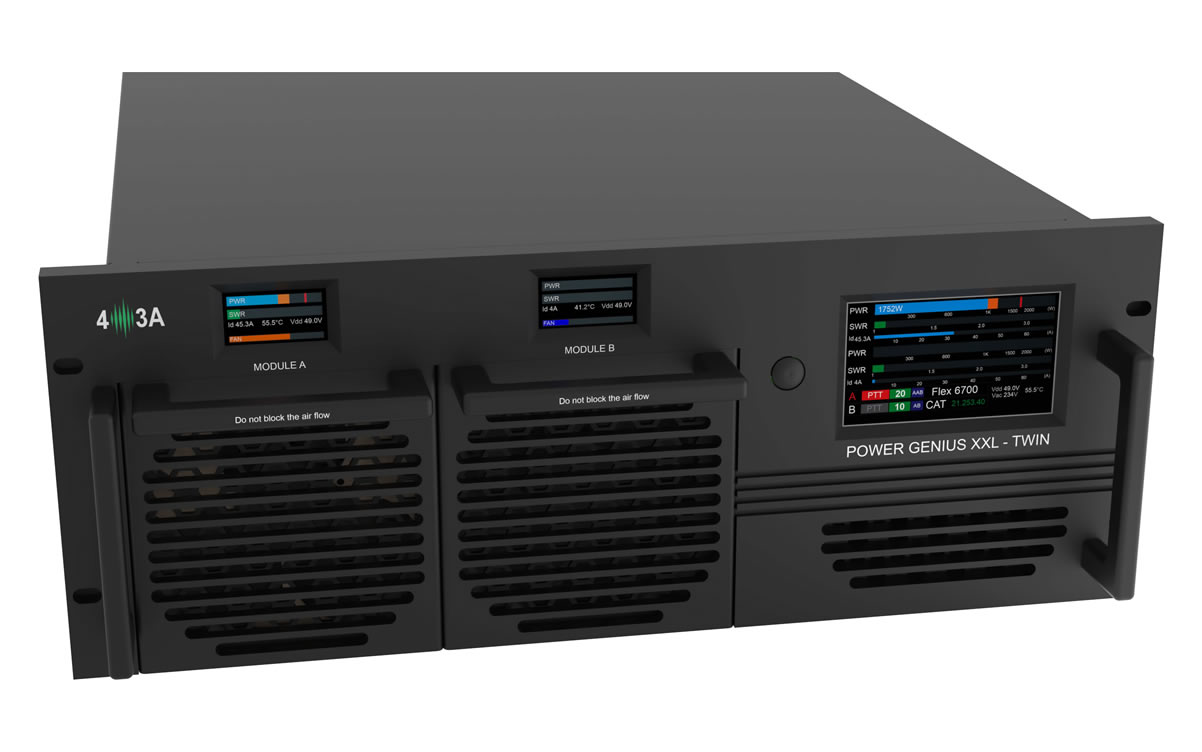

Power Genius XXL C - Commercial
The first 4O3A commercial amplifier. Continuous frequency coverage from 1 to 30MHz. Our TWIN topology provides guaranteed uptime through redundancy.If one out of the two RF modules fails for whatever reason, the amplifier will still remain on air uninterrupted, keeping half power through the second RF module. The damaged module can be hot swapped with a new one with absolutely no downtime.
Unleash unparalleled power and reliability with the world's first 4O3A commercial amplifier, boasting continuous frequency coverage from 1 to 30MHz. Engineered with revolutionary TWIN topology, this amplifier guarantees uninterrupted operation through redundancy.
Should one of the two RF modules fail for any reason, your broadcast remains on air without interruption, maintaining half power through the second RF module. This groundbreaking innovation ensures your transmission never falters.
This unprecedented feature eliminates service interruptions and maximizes operational efficiency, making it the ideal solution for demanding environments where uptime is paramount.
First ever features makes XXL C stand out
The first ever features built into the XXL C include the MEffATM algorithm and the first ever TWIN topology that combines two independent amplifier modules into one.
MEffATM system (Maximum Eciency Algorithm) controls efficiency as a function of output power. MEffA is a unique algorithm that changes the DC voltage level in the PA in to match the envelope of the exciting RF in order to hit the highest eciency.
US patent US10931237B2
TWIN topology provides guaranteed uptime through redundancy.
If one out of the two RF modules fails for whatever reason, the amplifier will still remain on air uninterrupted, keeping half power through the second RF module.
The damaged module can be hot swapped with a healthy one with absolutely no downtime.
PA SPECIFICATIONS
RF Power Output: 2 x 600W (ICAS)
Exciter Drive Level: 50W Typical (US version)
Transistors: MRF1K50H x 4

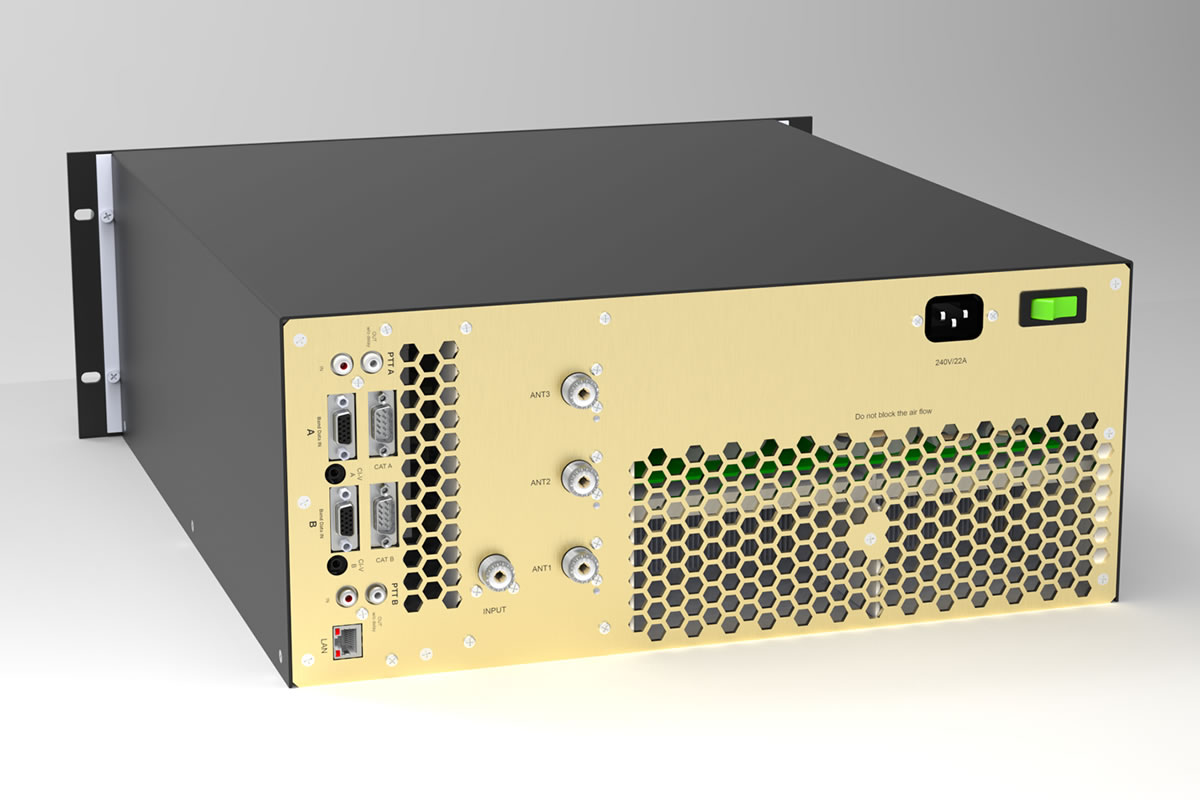

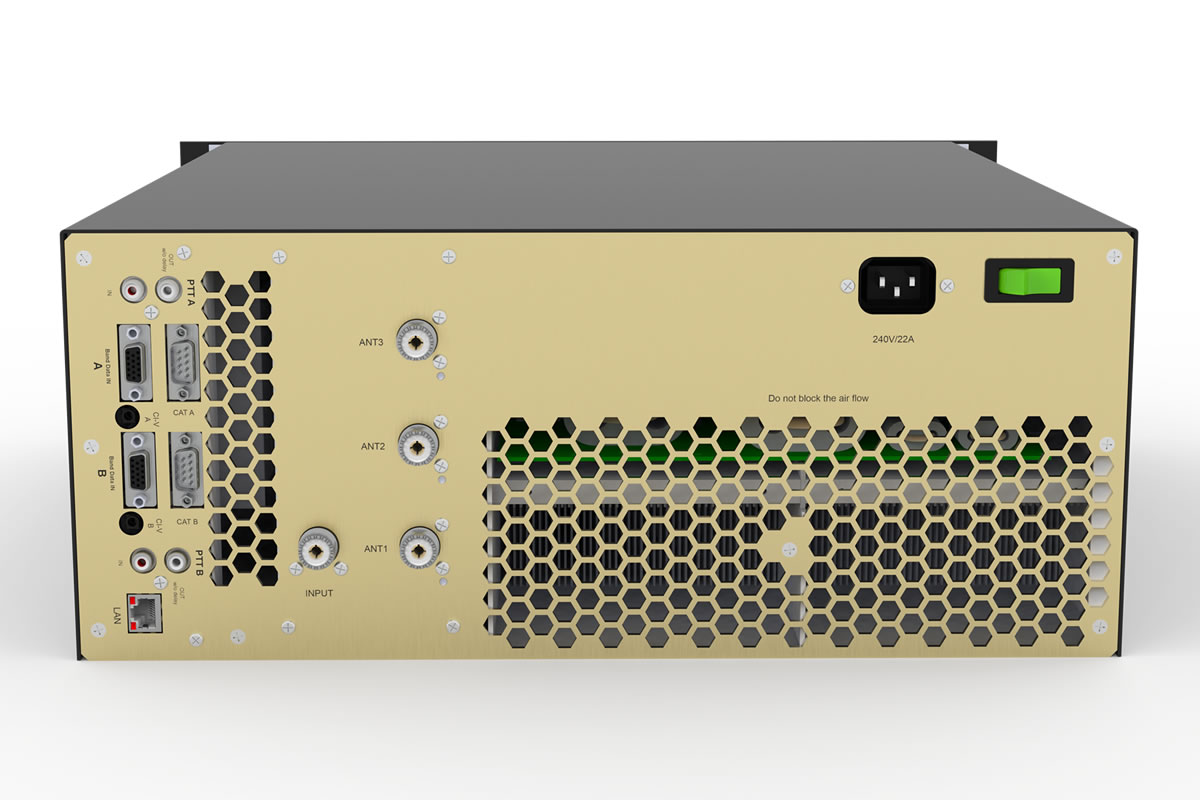

Exciter Inputs: SO-239 x 2
Antenna Outputs: SO-239 x 3
Antenna Impedance: 50 Ohm Unbalanced
Cooling: Thermally Controlled Fans
MECHANICAL
Dimensions: 19" x 4U x 50 cm
Weight: 25 kg (55 lbs)
Operating Temp: -25ºC to +50ºC
| Dimension (L x W x H) | 19.5 x 19 x 8.75 Inch |
| Weight | 29 Kilogram |
