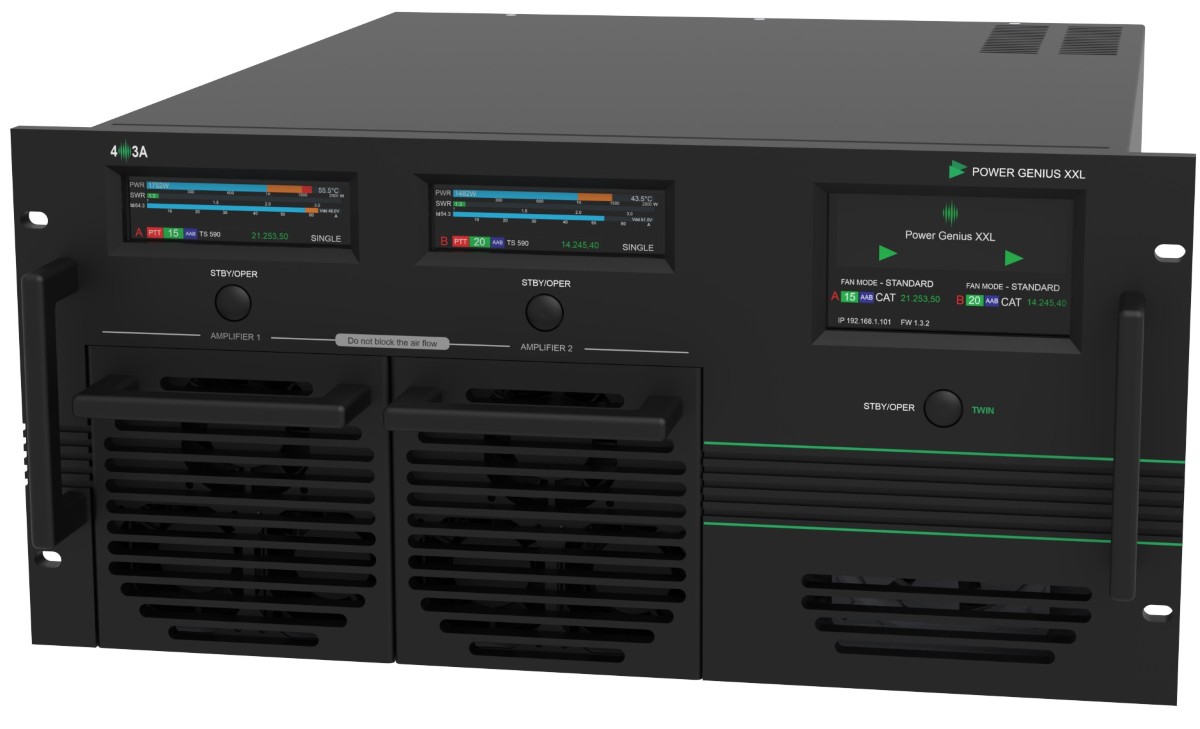

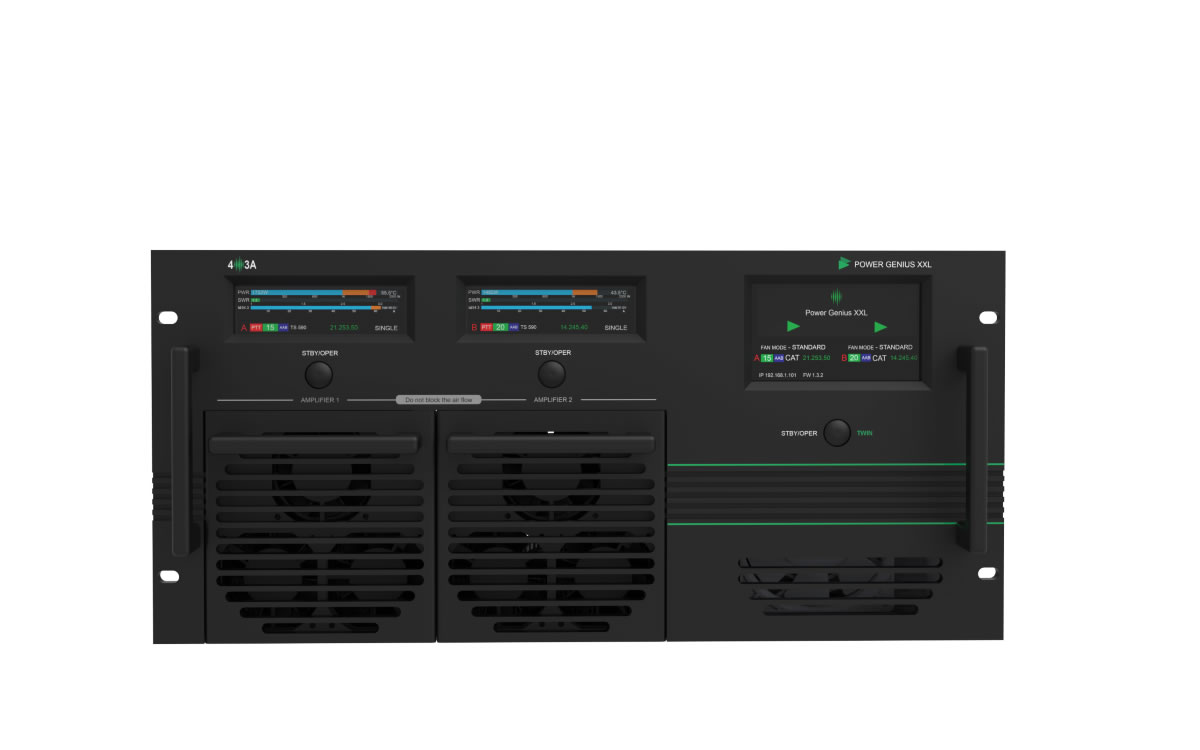

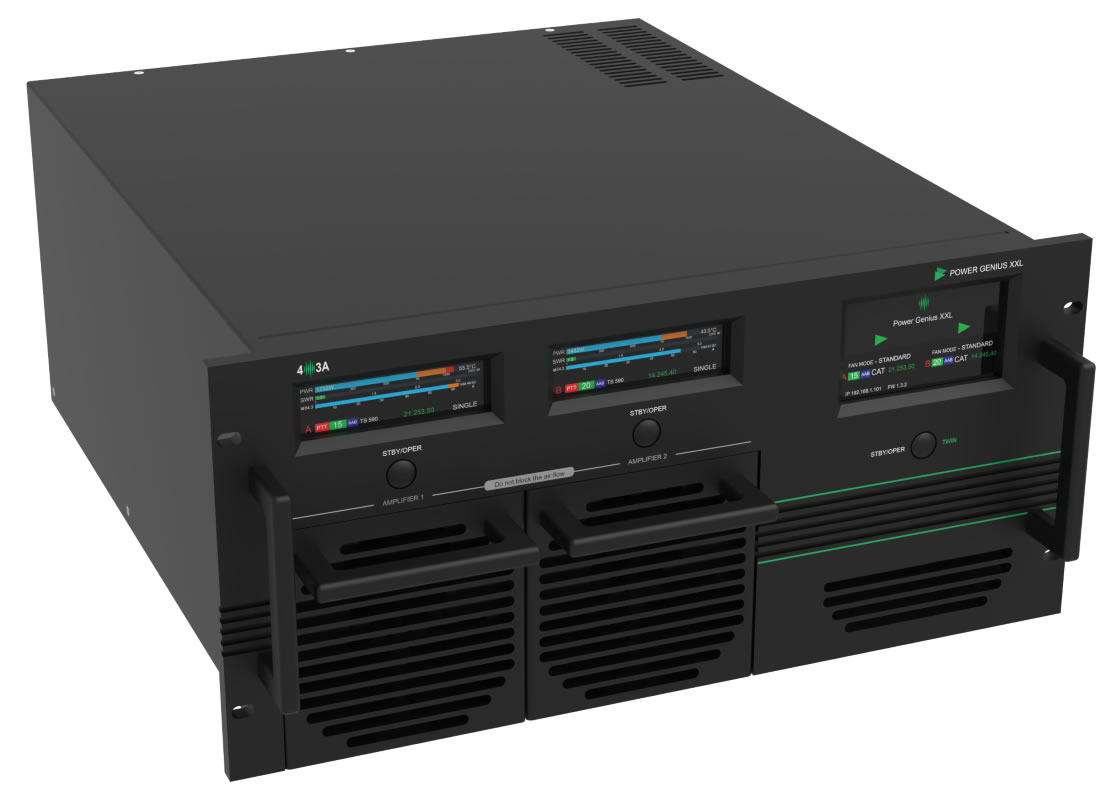

Power Genius XXL Twin
The revolutionary TWIN topology offers ultimate flexibility for your radio station, transforming with a press of a button to match your desired configuration.
Combine the two modules into a single powerful amplifier, delivering 3500 watts of power in SO2R configuration.
Alternatively use it as two fully independent amplifiers, each delivering up to a 2000W of output. Perfect for contest stations or specialized applications - this configuration offers maximum versatility and control.
First ever features makes XXL TWIN unique.
The first ever features built into the XXL TWIN include the MEffATM algorithm and the first ever TWIN topology that combines two independent amplifier modules into one.
MEffATM system (Maximum Eciency Algorithm) controls efficiency as a function of output power. MEffA is a unique algorithm that changes the DC voltage level in the PA in to match the envelope of the exciting RF in order to hit the highest eciency.
US patent US10931237B2
TWIN topology provides the user with incredible flexibility. Depending on the needs and radio station layout, this amplifier can operate either as two fully independent amplifiers (1500+ W each) or combined into one, providing 3500W of power with SO2R configuration
PA SPECIFICATIONS
RF Power Output: 2 x 1500W (ICAS)
Exciter Drive Level: 50W Typical (US version)
Transistors: MRF1K50H x 4
Exciter Inputs: SO-239 x 2
Antenna Outputs: SO-239 x 2
Antenna Impedance: 50 Ohm Unbalanced
Cooling: Thermally Controlled Fans
MECHANICAL
Dimensions: 19" x 4U x 50 cm
Weight: 29 kg (63 lbs)
Operating Temp: -25ºC to +40ºC
