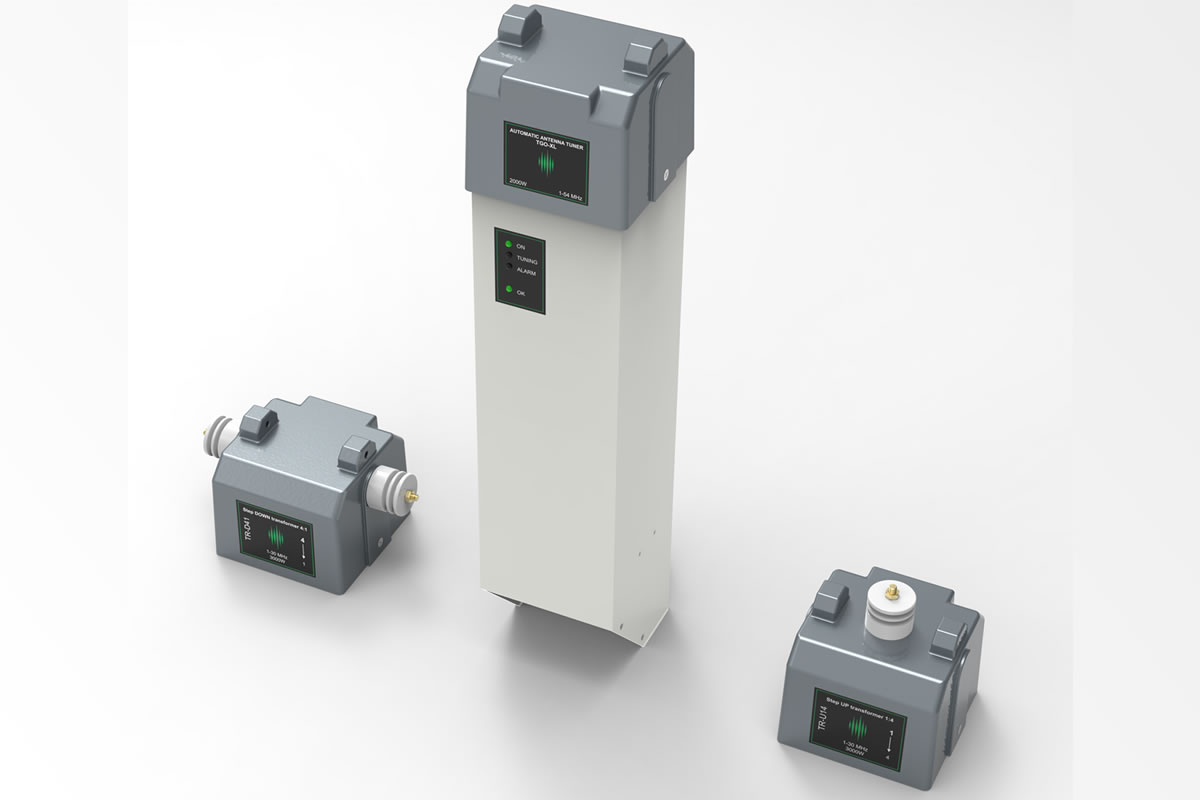

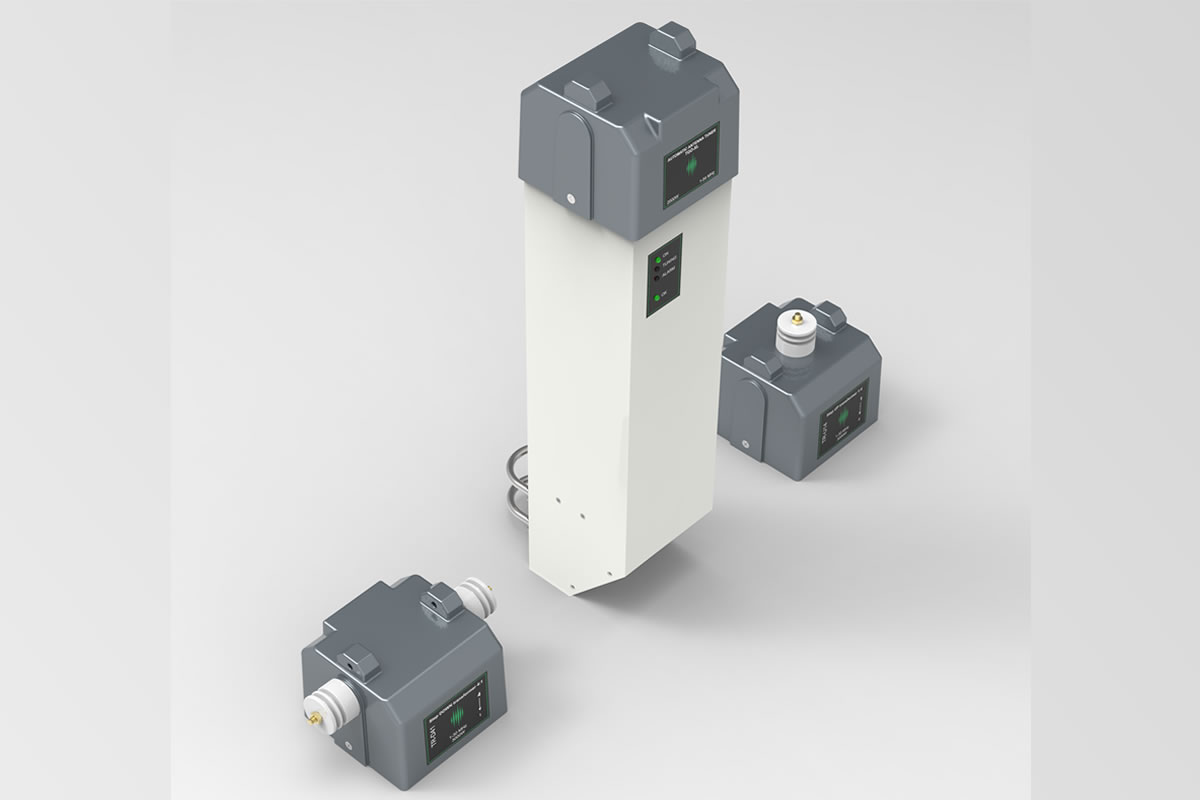

Tuner Genius - Outdoor

The TGXL-O effortlessly matches impedances up to 10:1, ensuring optimal power transfer and minimizing signal loss, while its robust design handles up to 2000W, catering to a wide range of applications.
With its LAN control capability, managing your antenna system becomes a breeze, allowing for remote operation and seamless integration into your existing setup. Experience the future of antenna tuning with the TGXL-O, where convenience meets performance.

Tune your antenna at the feed point!

Ideally you want your tuner at the antenna feed point.

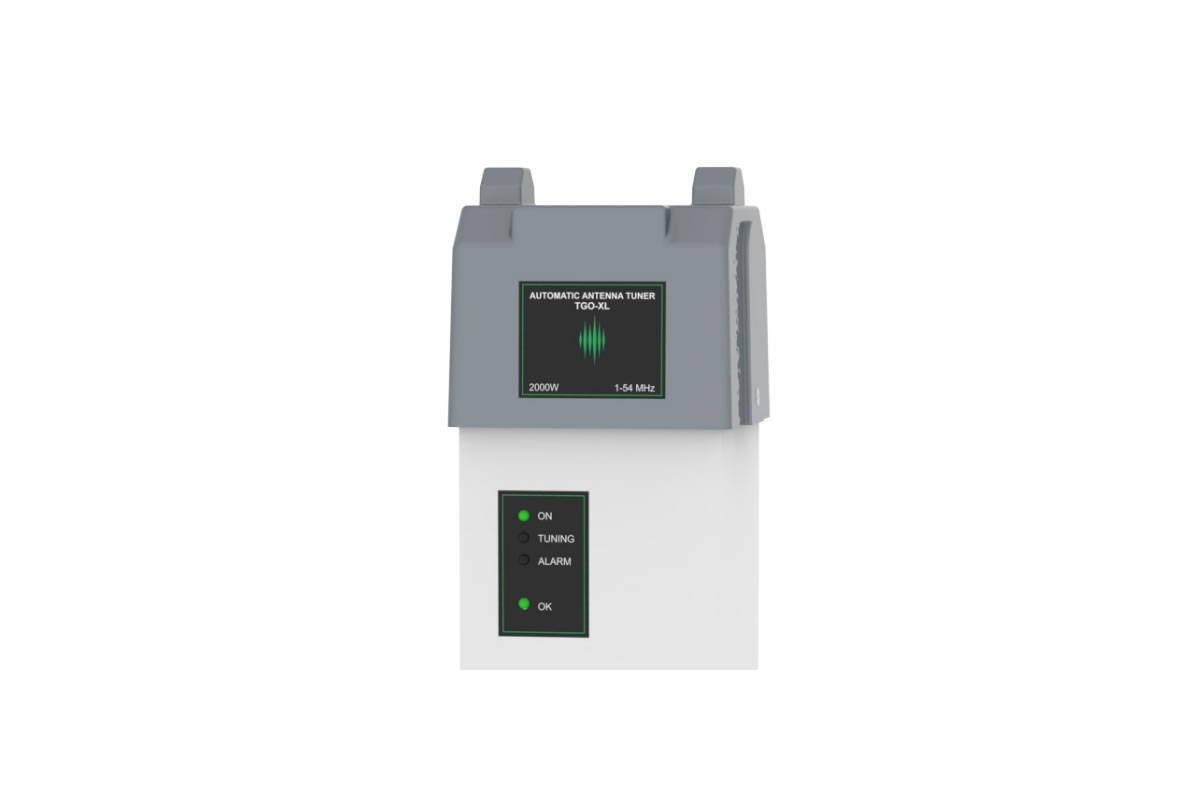

TGXL-O is LAN controlled, automatic antenna tuner.

Matches impedances up to 10:1, and handling up to 2000 W.

Designed for robustness

The Best, highest quality components are a guarantee for a long life time of a tuner.

RF Specifications

Max RF Power: up to the 2000W (ICAS)
Minimum tuning power: 10W Typical
RF connectors: 2x SO-239
Exciter Inputs: SO-239 x 2
Tuning Impedance: 10:1 to 50 Ohm
Cooling: Internal fan
RF heads: 4:1 BAL or 1:4 UNBAL

Mechanical

Dimensions: 60cm x 12cm x 12cm
Weight: 8kg (17 lbs)
Operating Temp: -25ºC to +50ºC

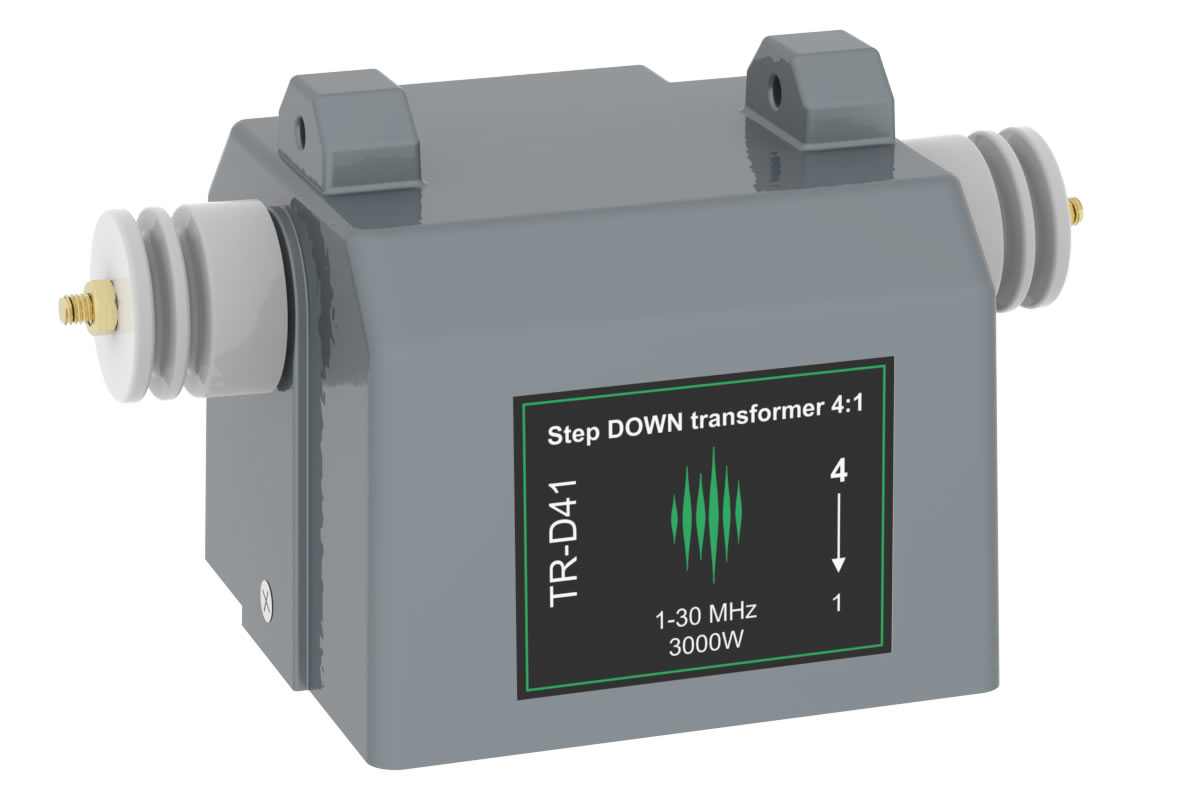

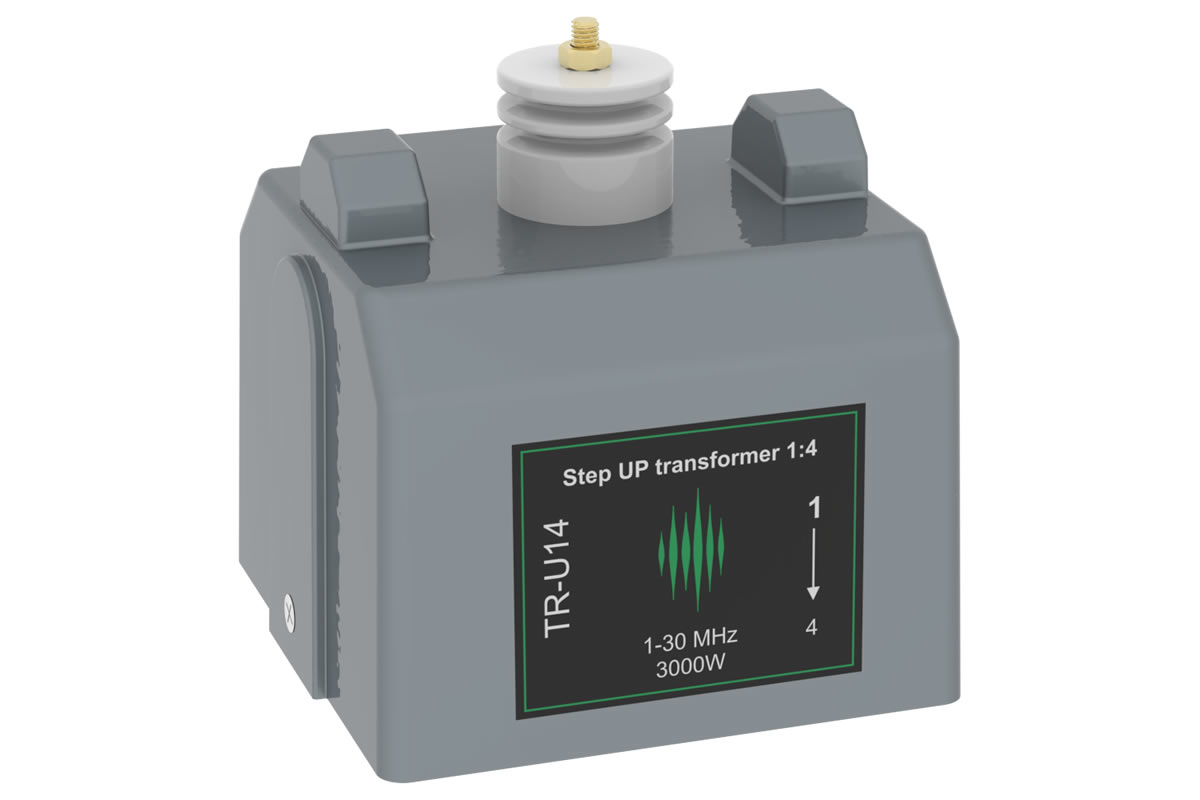

REPLACEABLE RF “HAT”

If impedance of your antenna is on an extreme, with the RF hat for impedance ratio 1:4 or 4:1, you can transform it to a range which will make tuning much easier, and will keep voltage and currents inside the tuner in a good range.
