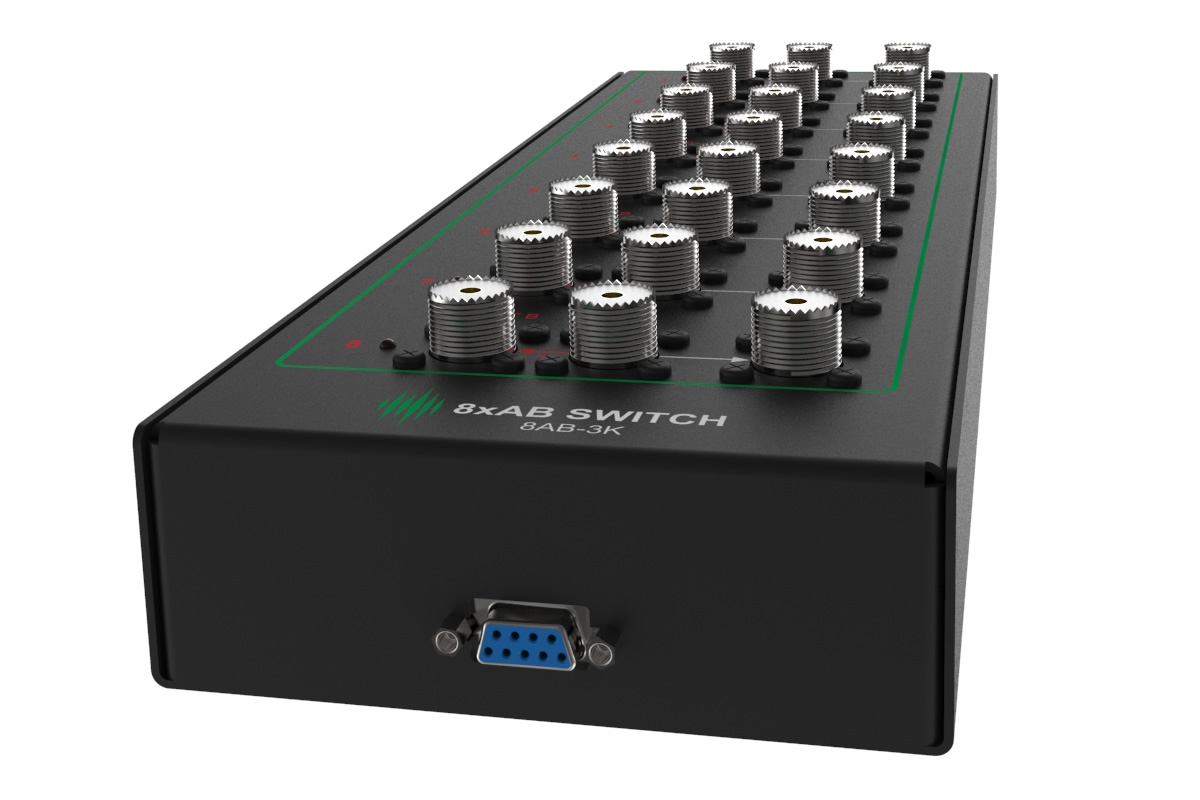

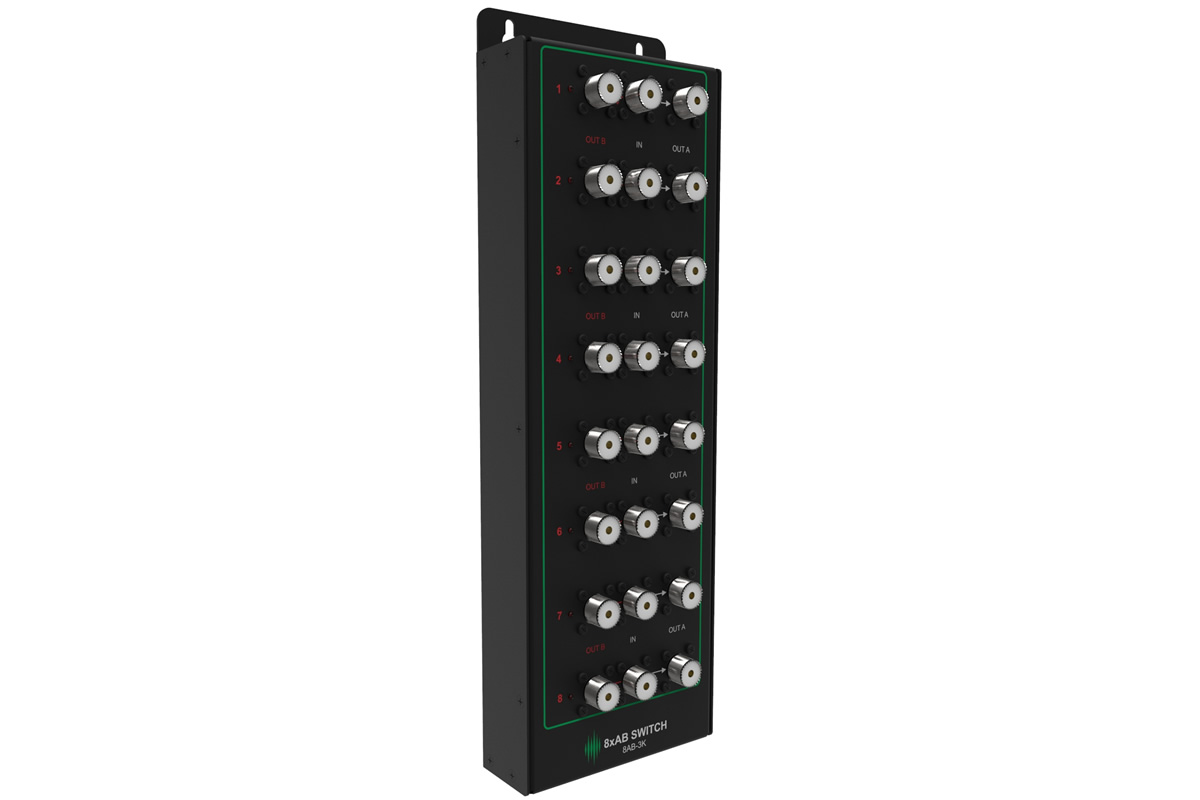

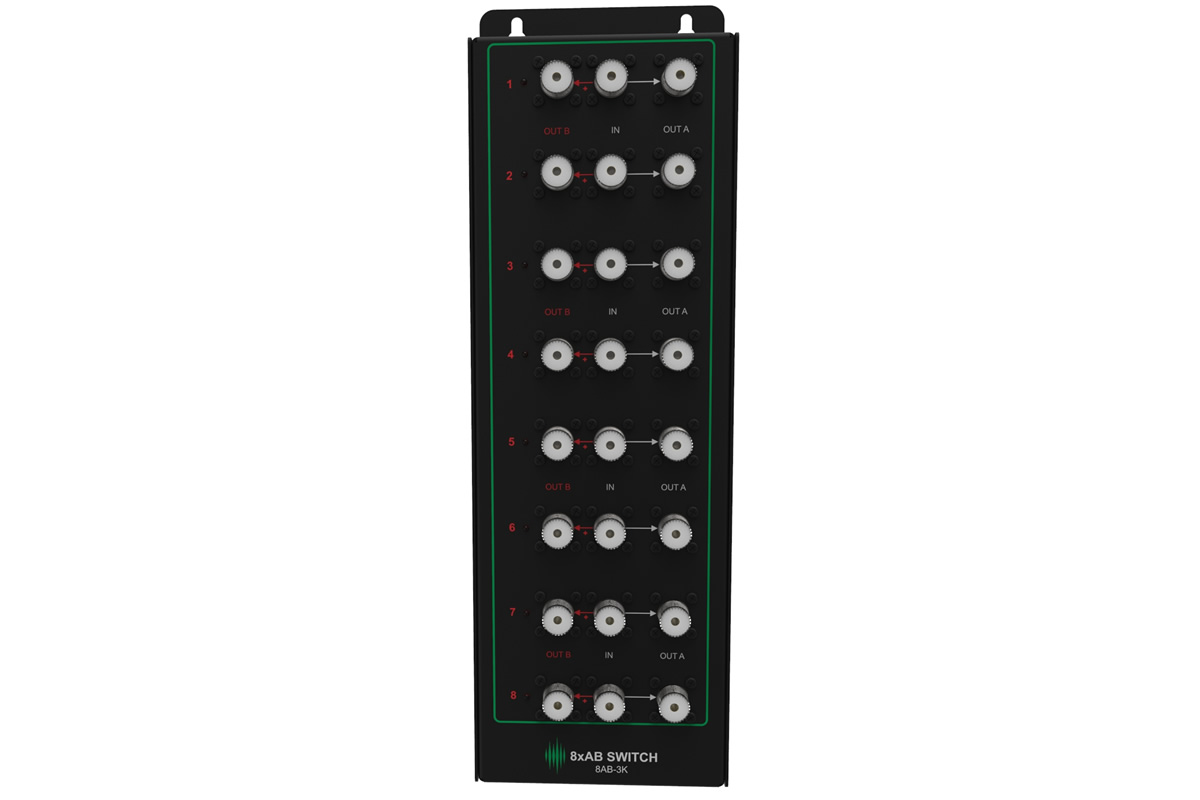

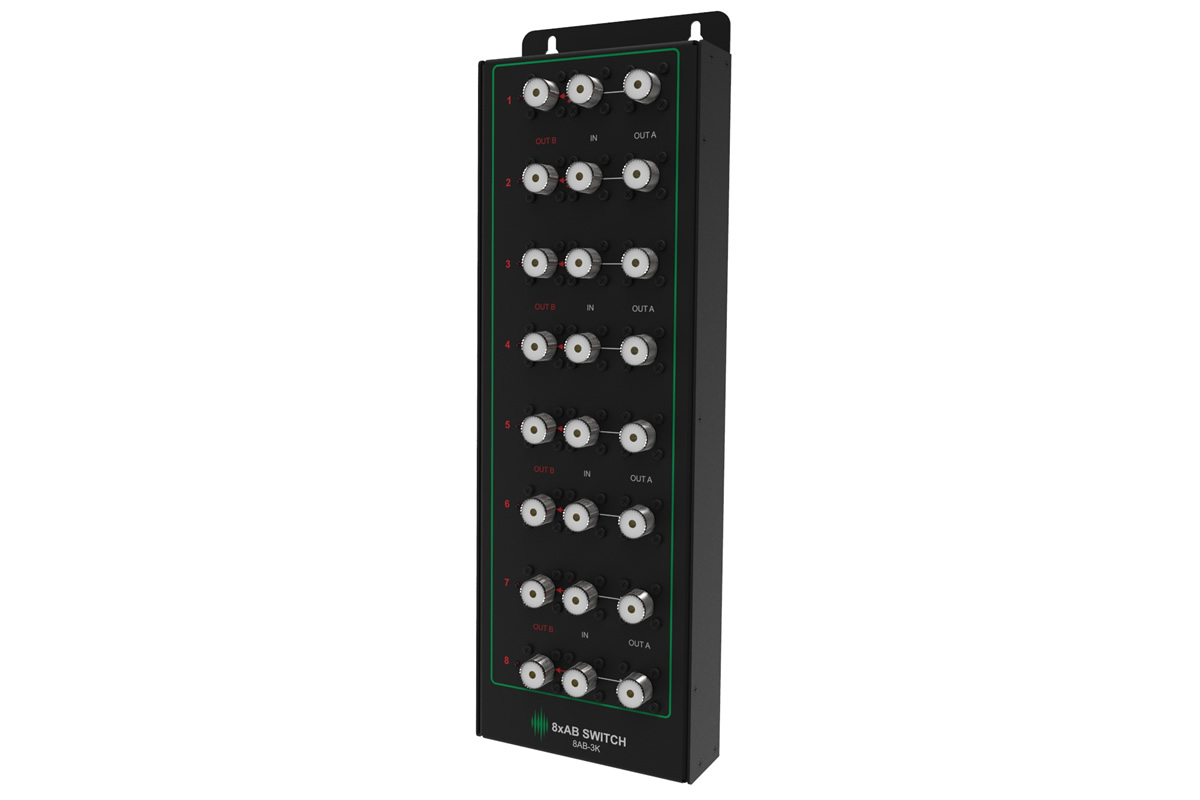

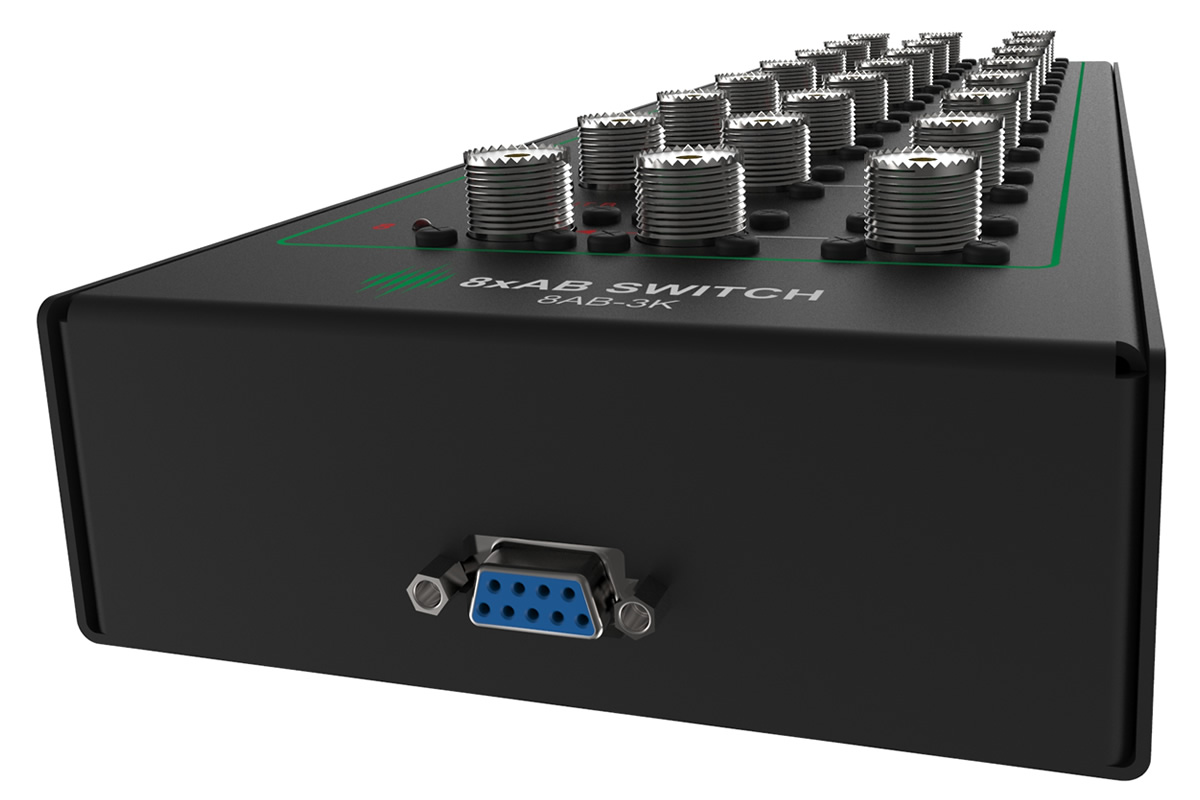

8xAB Switch

With two Antenna Genius Switches it can form high a isolation 8×4 antenna matrix for 8 antennas to 4 radios. Clean, flexible, easy to maintain.

Isolation on unused port at 30MHz: 56db to 70 dB (On/Off status)

Input Power: 3500W

Connectors: PL or N type

Power voltage: + 12V DC

Power consumption: 120mA

Power Indication: LED

The 8×4 Superswitch

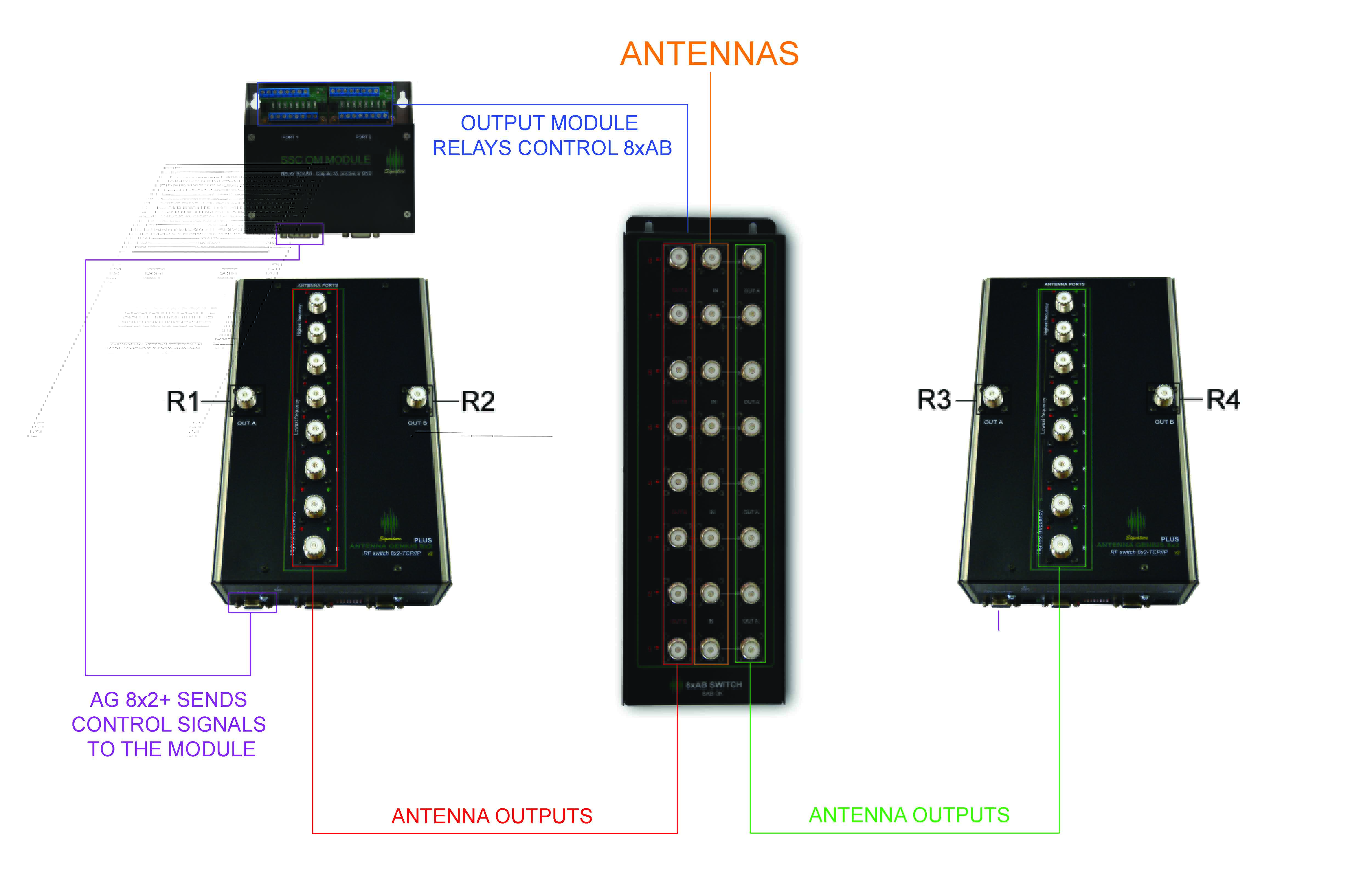

The main motivation behind the 8xAB switch is integration of two Antenna Genius smart switches into an 8×4 Super Switch. See the diagram below.

Additional notes

• The AG that’s connected to the OM module has the priority when selecting antennas.
• All unselected antennas are routed to R3 and R4 automatically.
• When R1 or R2 select a port, the output module will route the antenna trough the AB switch.
• There is no special protection in place meaning R1 and R2 can select any antenna at any time.
