Automation Diagrams

Basic SO2R setup with Multi extension
Basic SO2R/M2 setup with In Band stations
SO2R/MS full configuration
SO2R/MS with new Genius products and 4 radios
SO2R/MS setup with 3 Flex radios and maximum possibilities
SO2R station, ready for MS
SO2R/Multi single with Genius devices and 7 operators at any time
SO2R configuration for a limited space, using one tribander/40M and antennas for 80 and 160
SO2R station ready for MS, all on LAN
SO2R with Flex and PGXL and tribander basic
SO2R with switching
SO2R with switching and rotor
SO2R with switching, rotor, Power Genius XL and Flex
SOnR with Flex and PGXL
SO2R with Flex and PGXL and filters basic
SO2R with Flex, PGXL, TGXL and filters basic
SO2R MS M2 using two FlexRadios
SO2R in two directions with four tribanders
SO2R with TB and two IC-7610
SO2R with WARC TB and two IC-7610
SO2R basic setup with AG, PGXL and FlexRadio
Standard M2 setup with two In Band stations on each RUN band
M2 antenna / HP BPF switching
Antenna and HP BPF switching for 3 directions

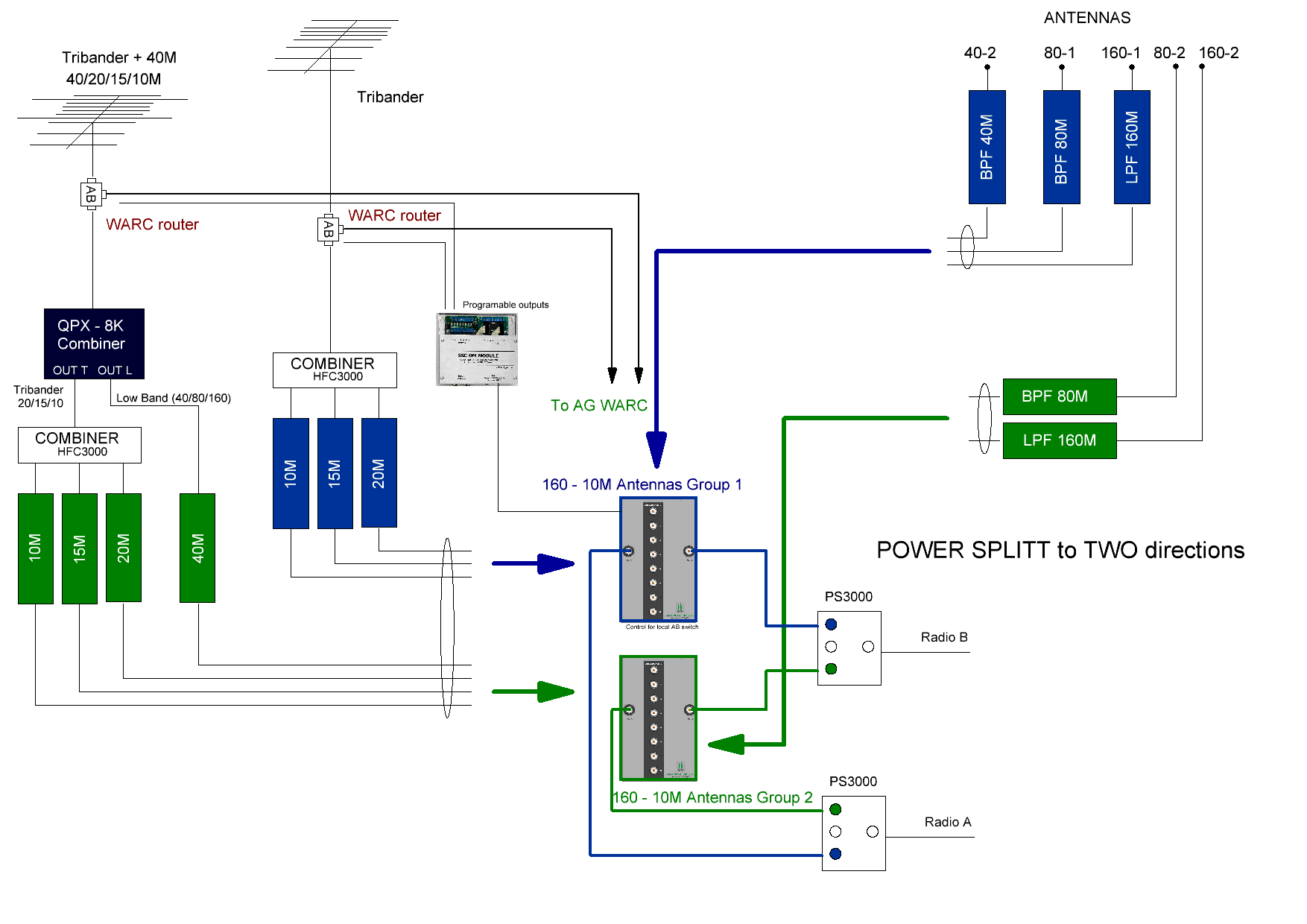

DK3BK switching ver C power splitting final

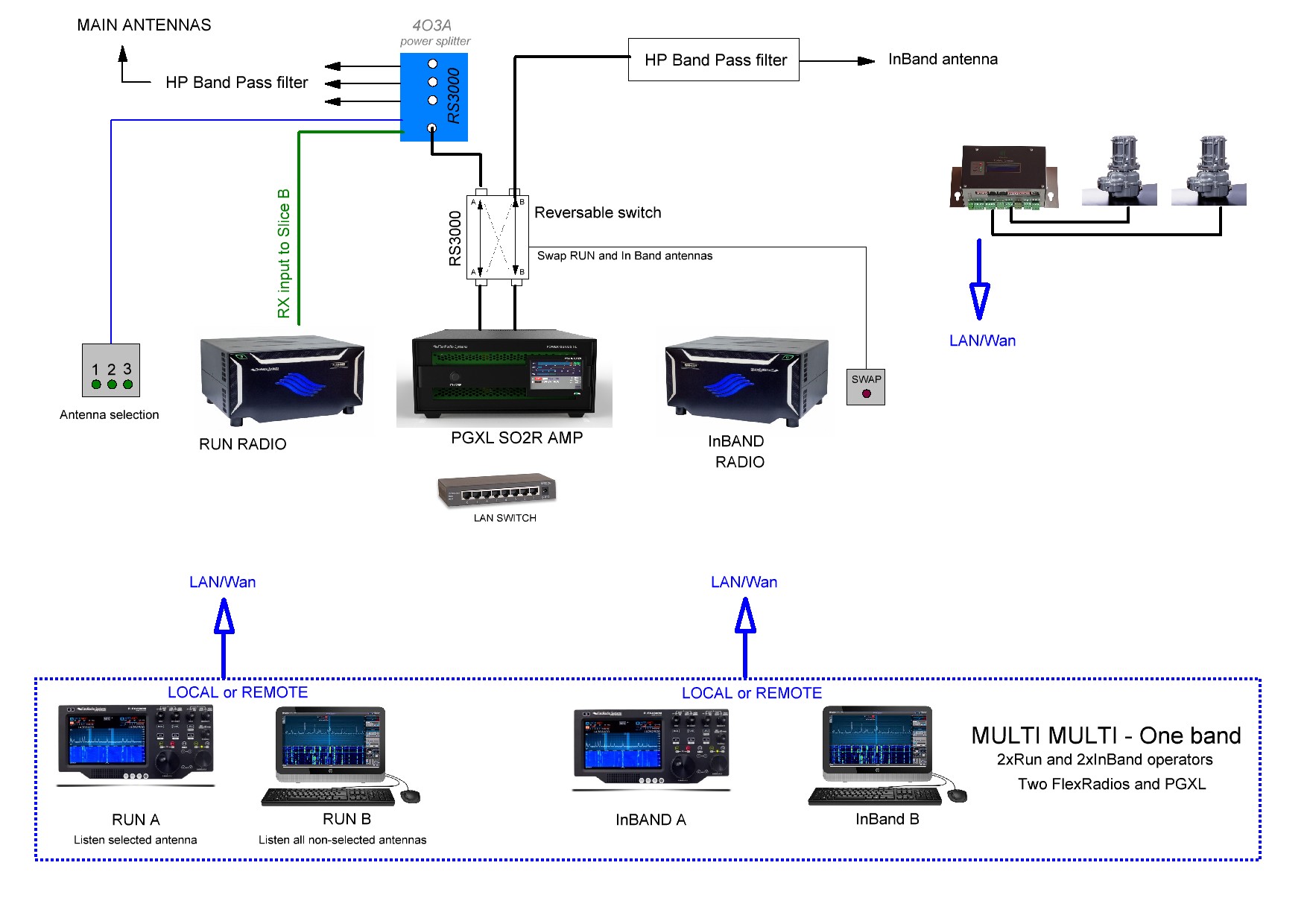

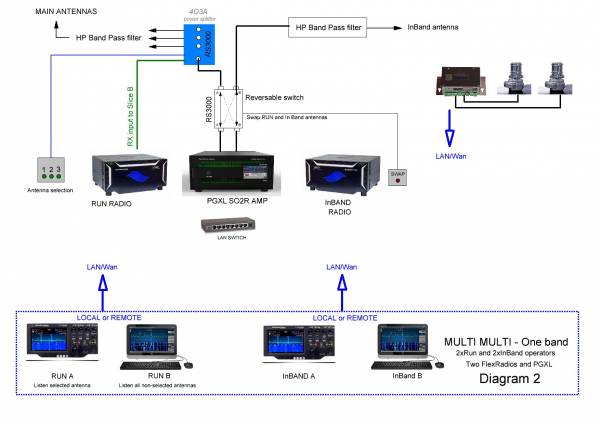

MM with Flex and PGXL

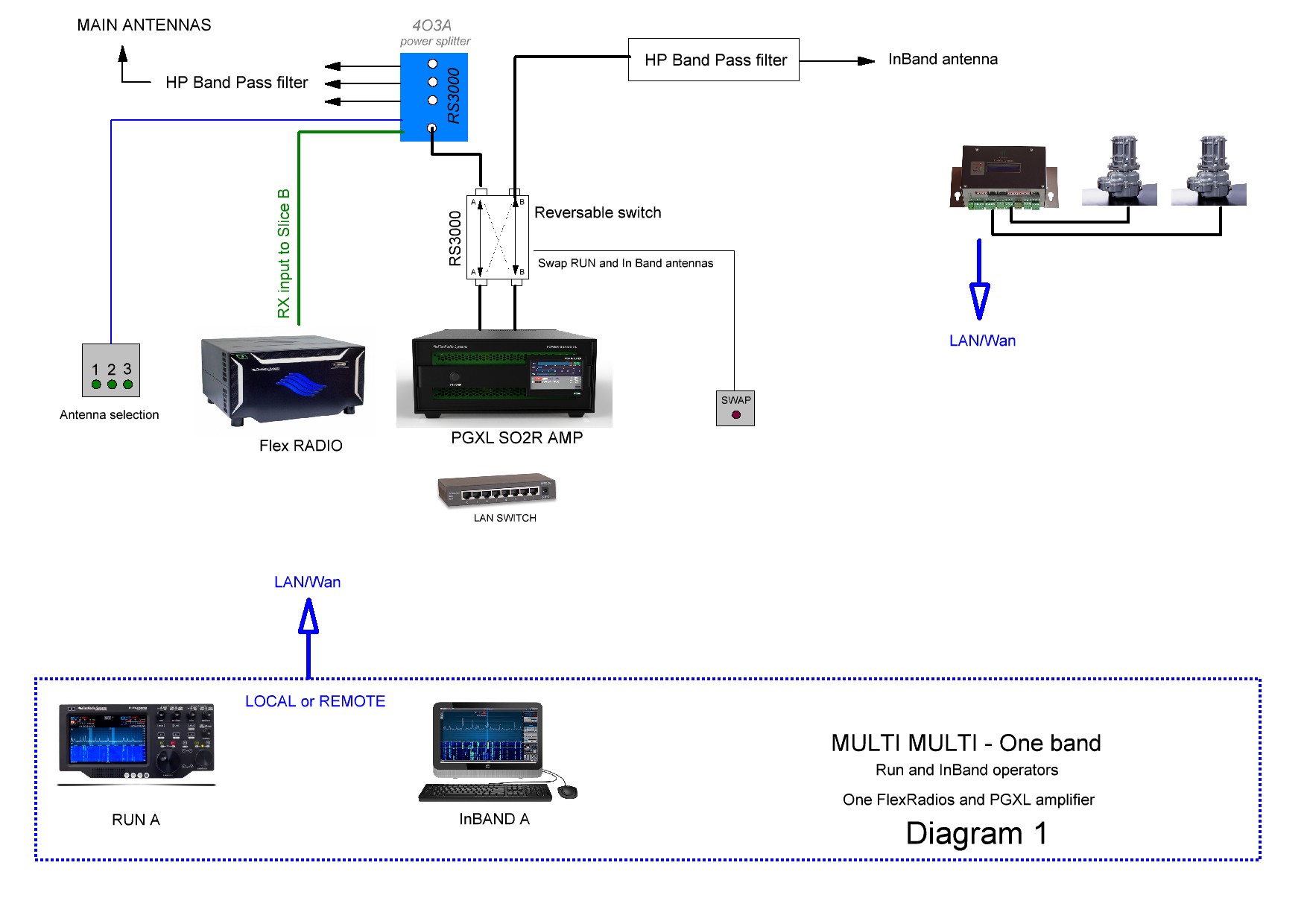

MM with Flex and PGXL one radio
MM with Flex and PGXL

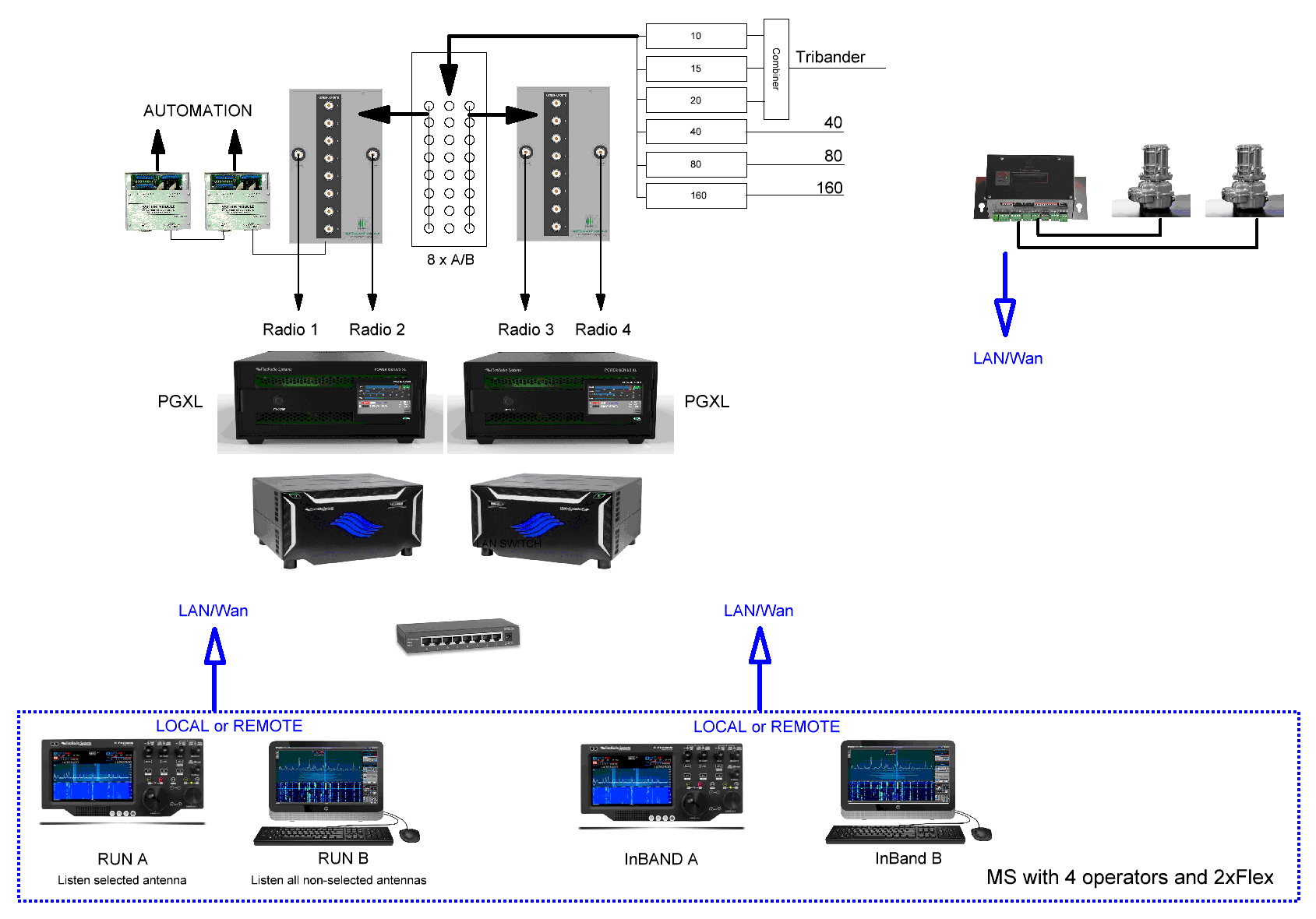

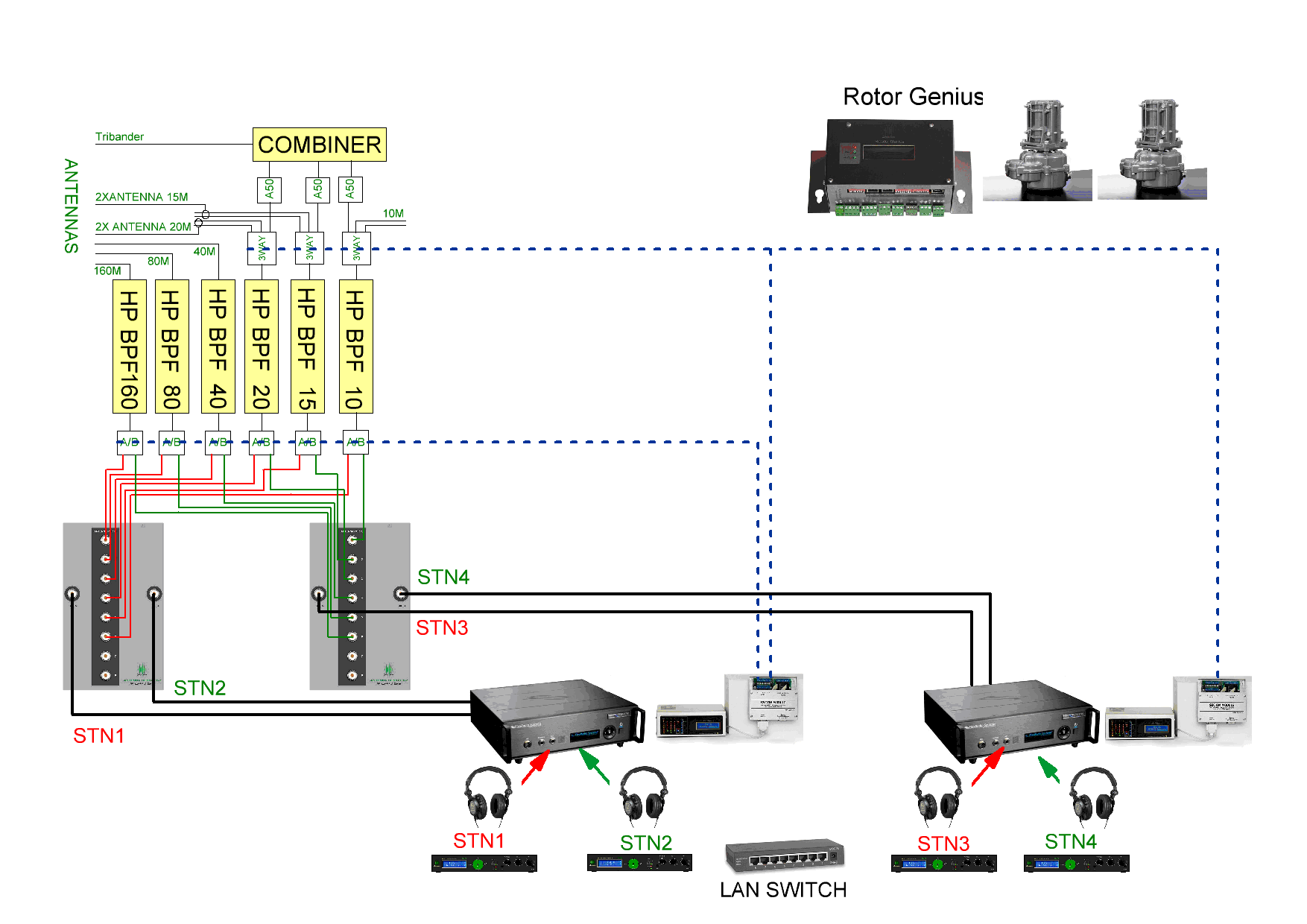

MS with 4 operators and two Flex

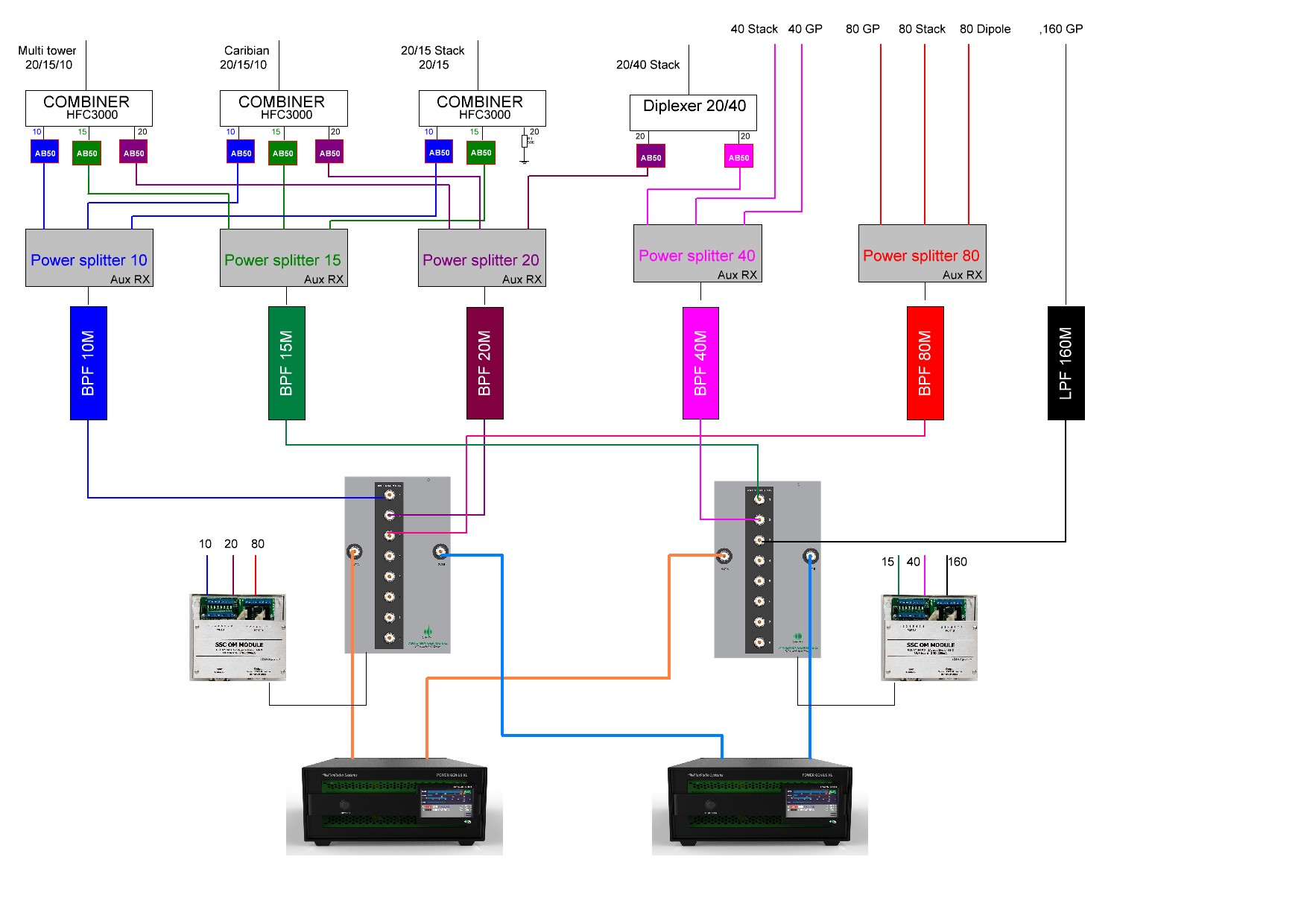

WV4P

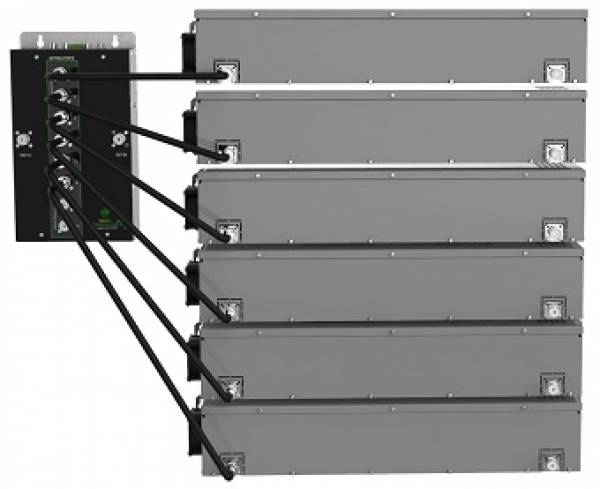

AG and 6 Band Pass Filters

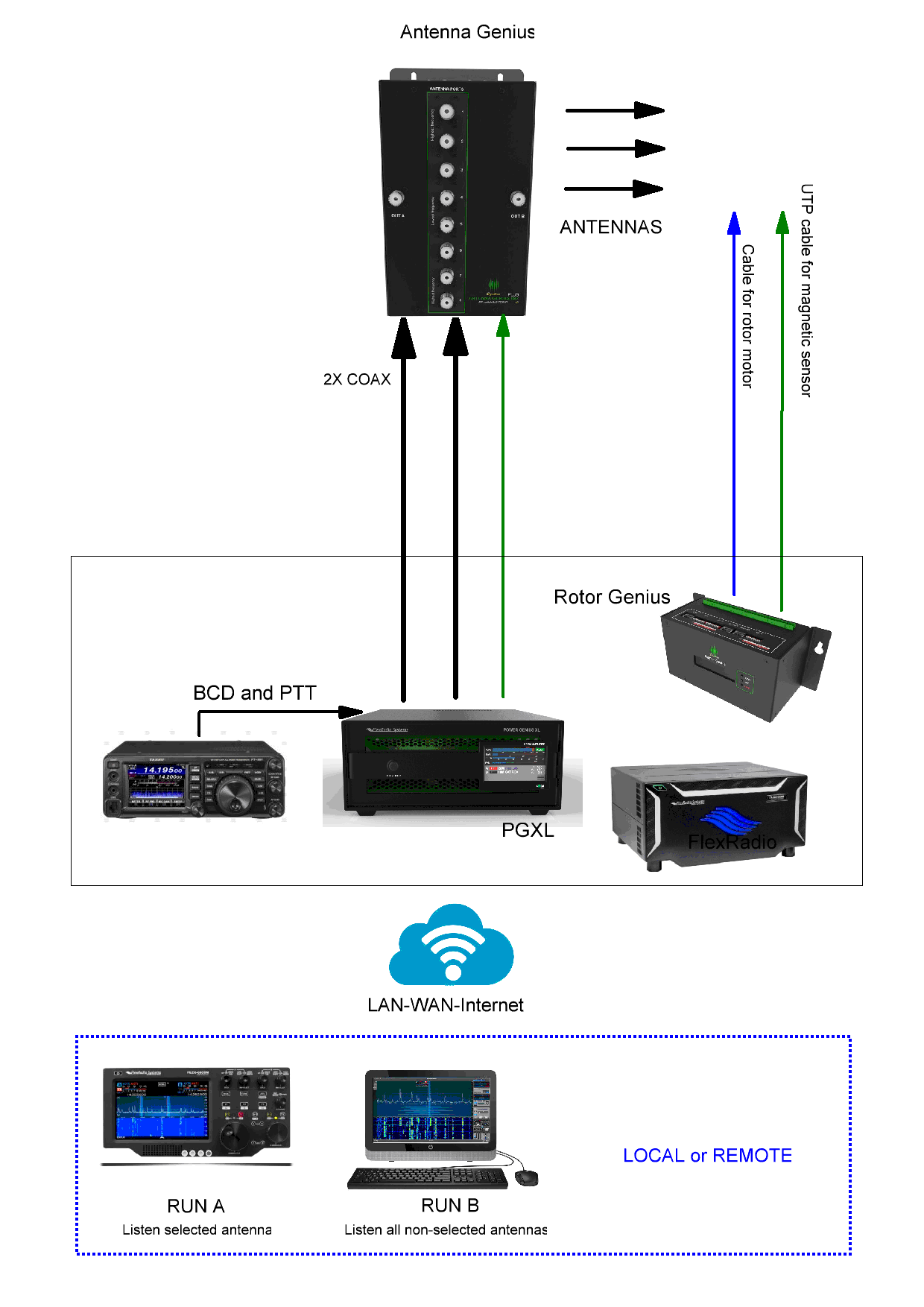

Remote station for DX-ing

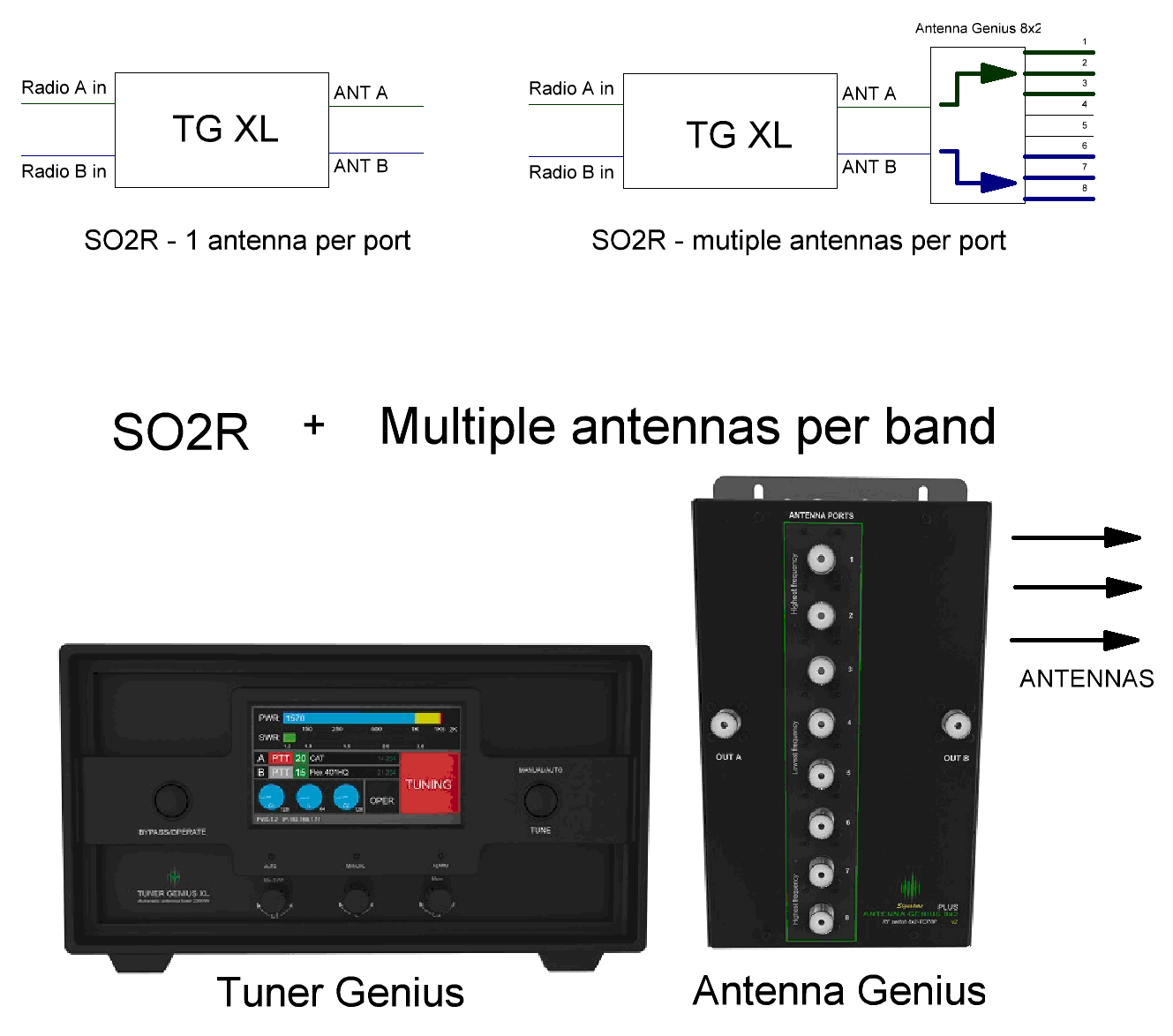

TGXL and AG pics plus block-diagram

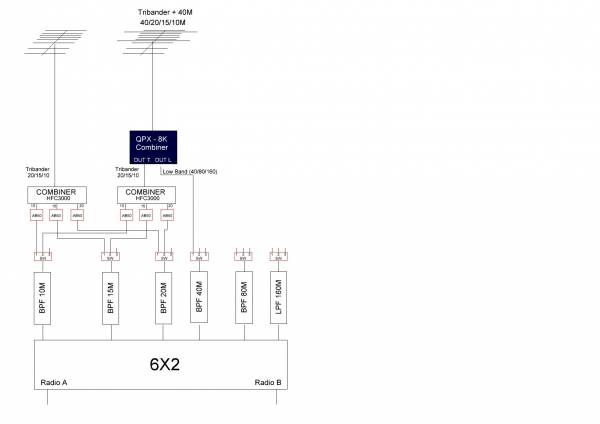

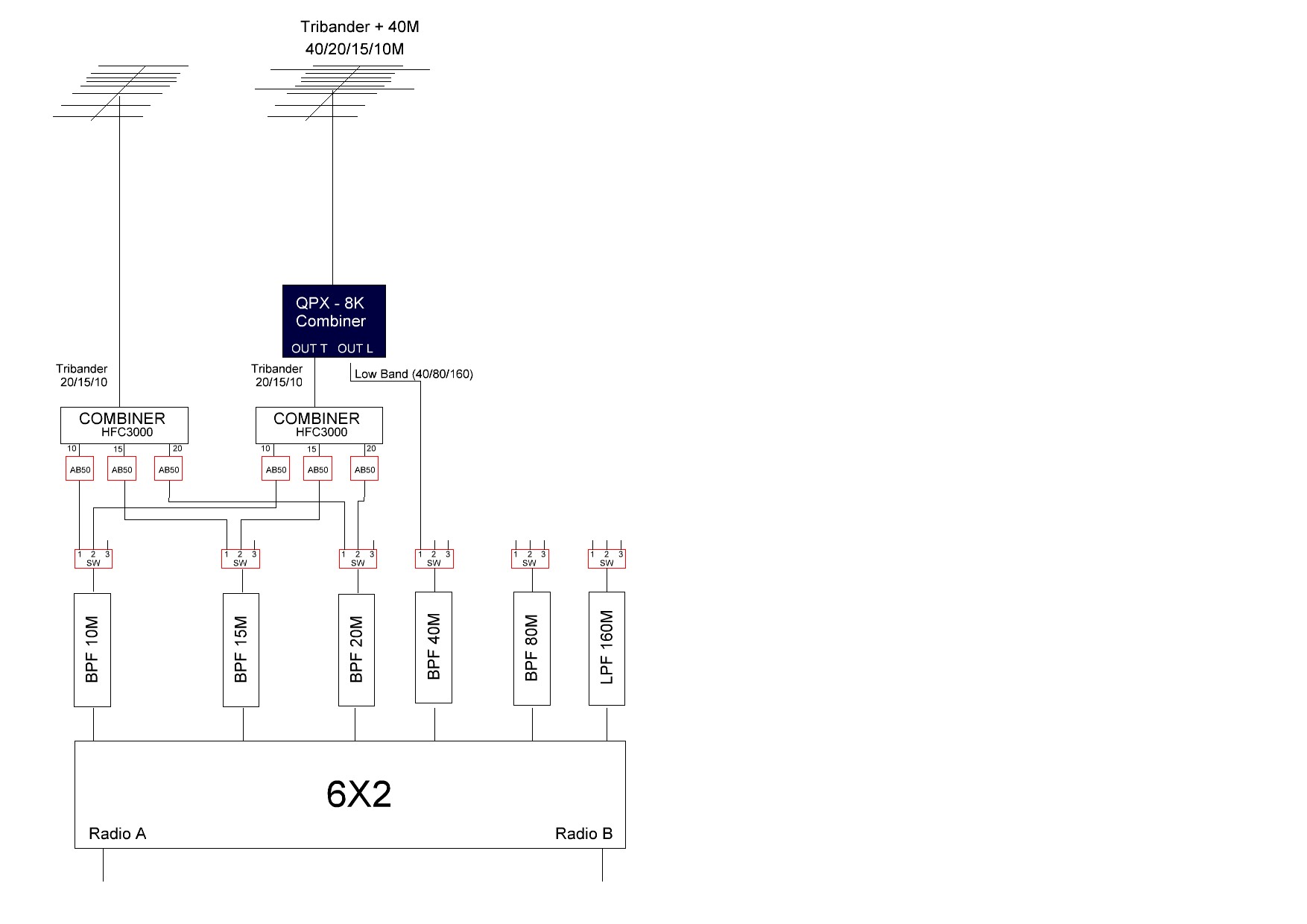

Tribander and fourbander and three antennas per band

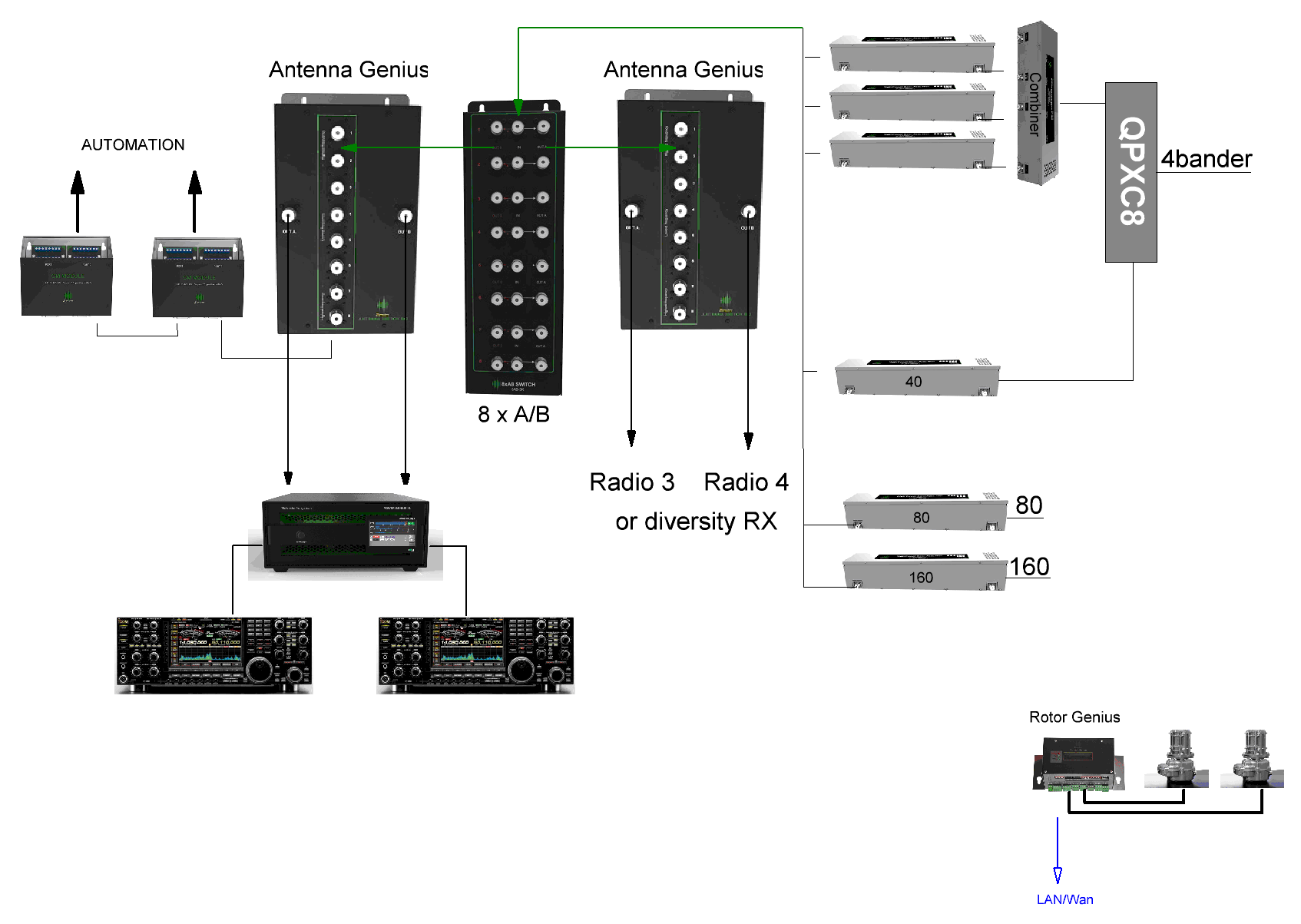

Four radios and four bander

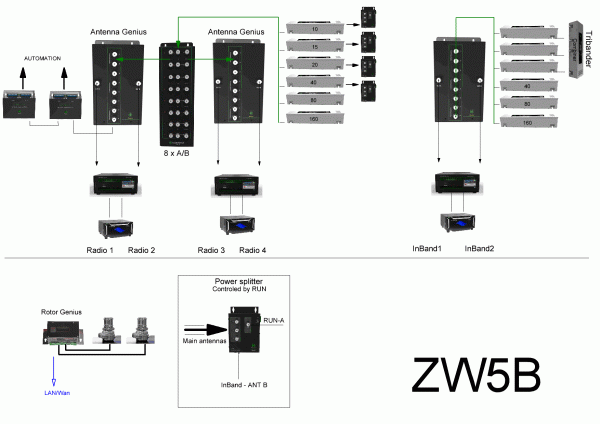

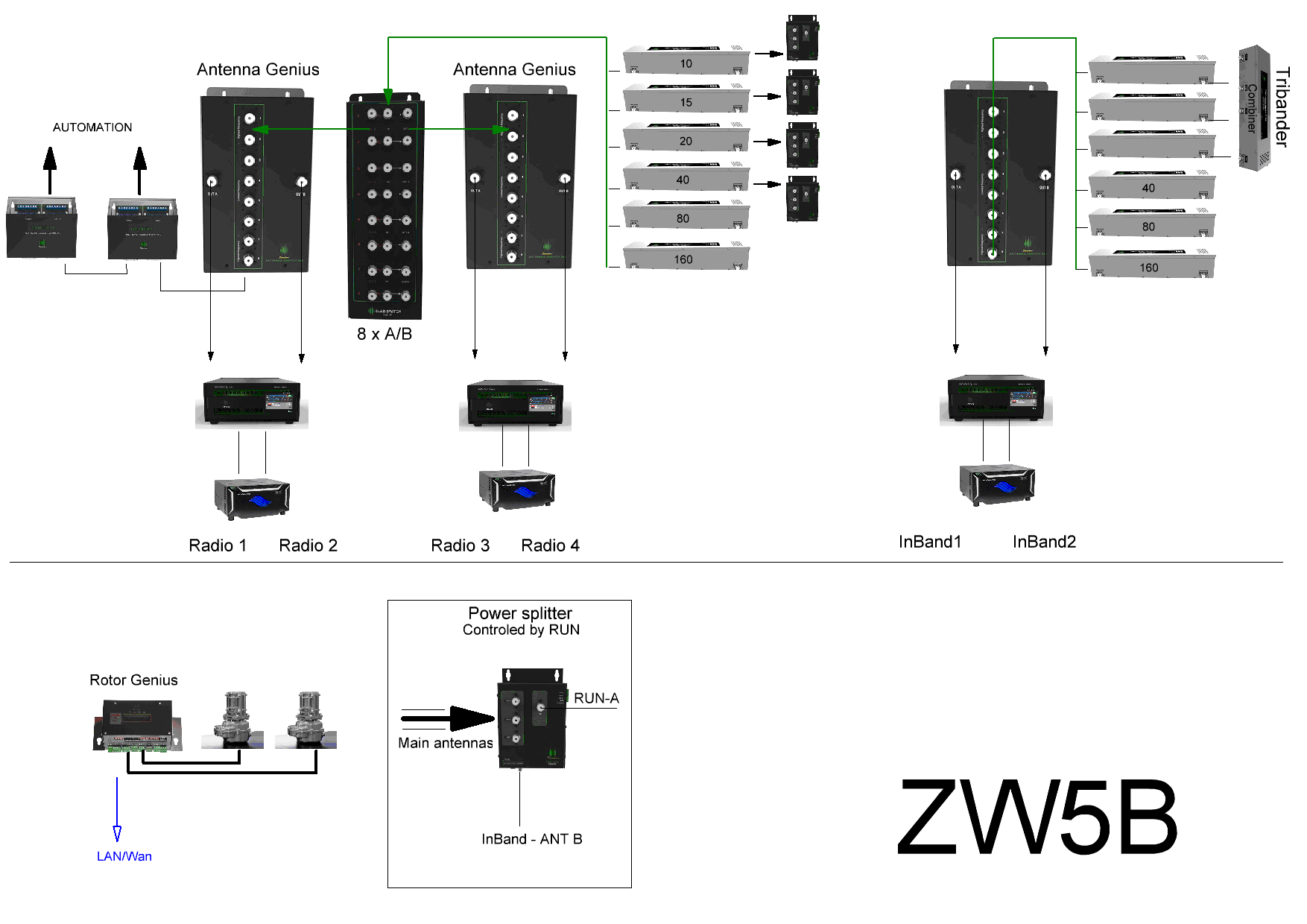

Four radios and two inband radios

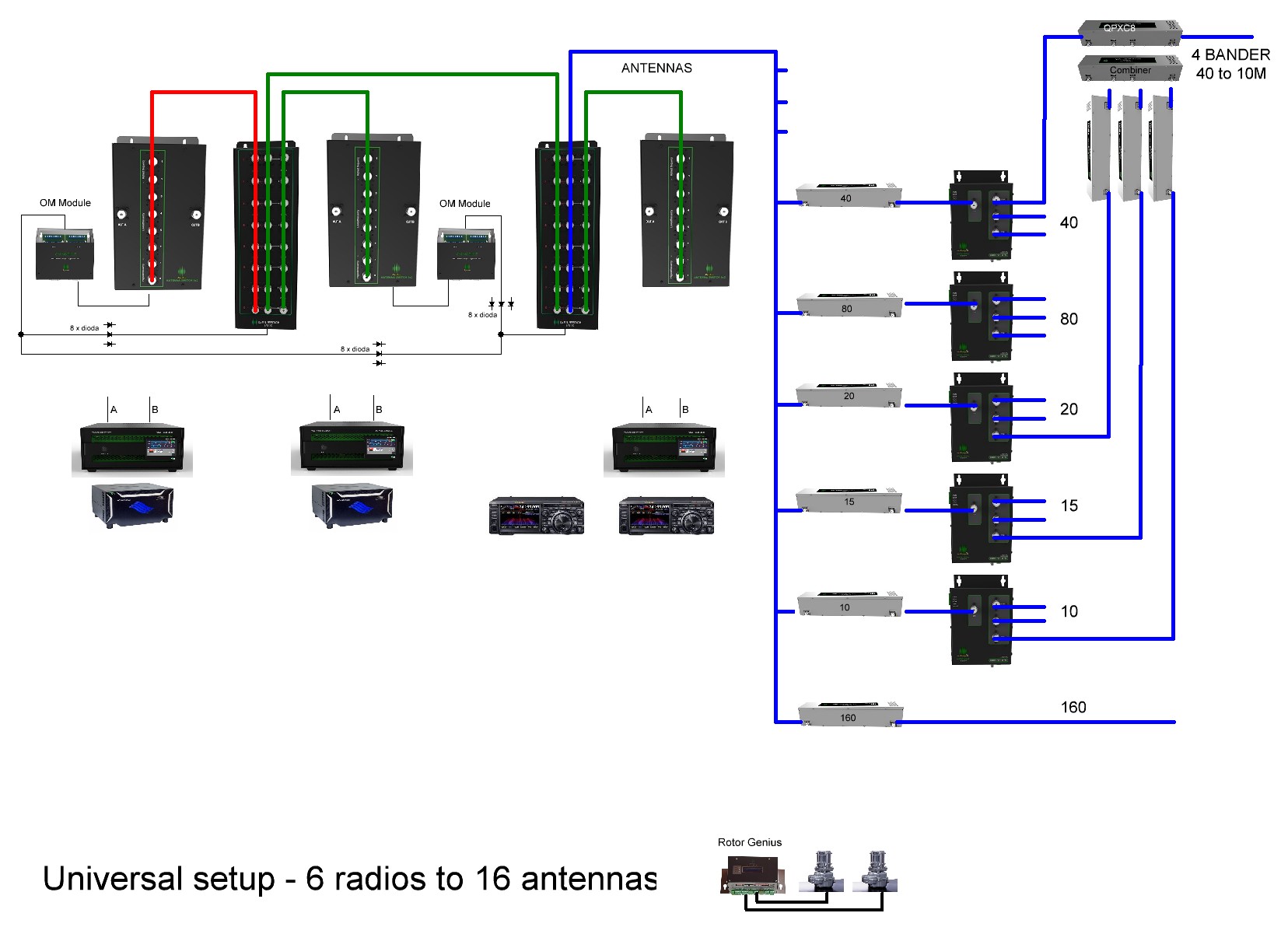

Six radios and 8 antennas with power splitting in 3 directions

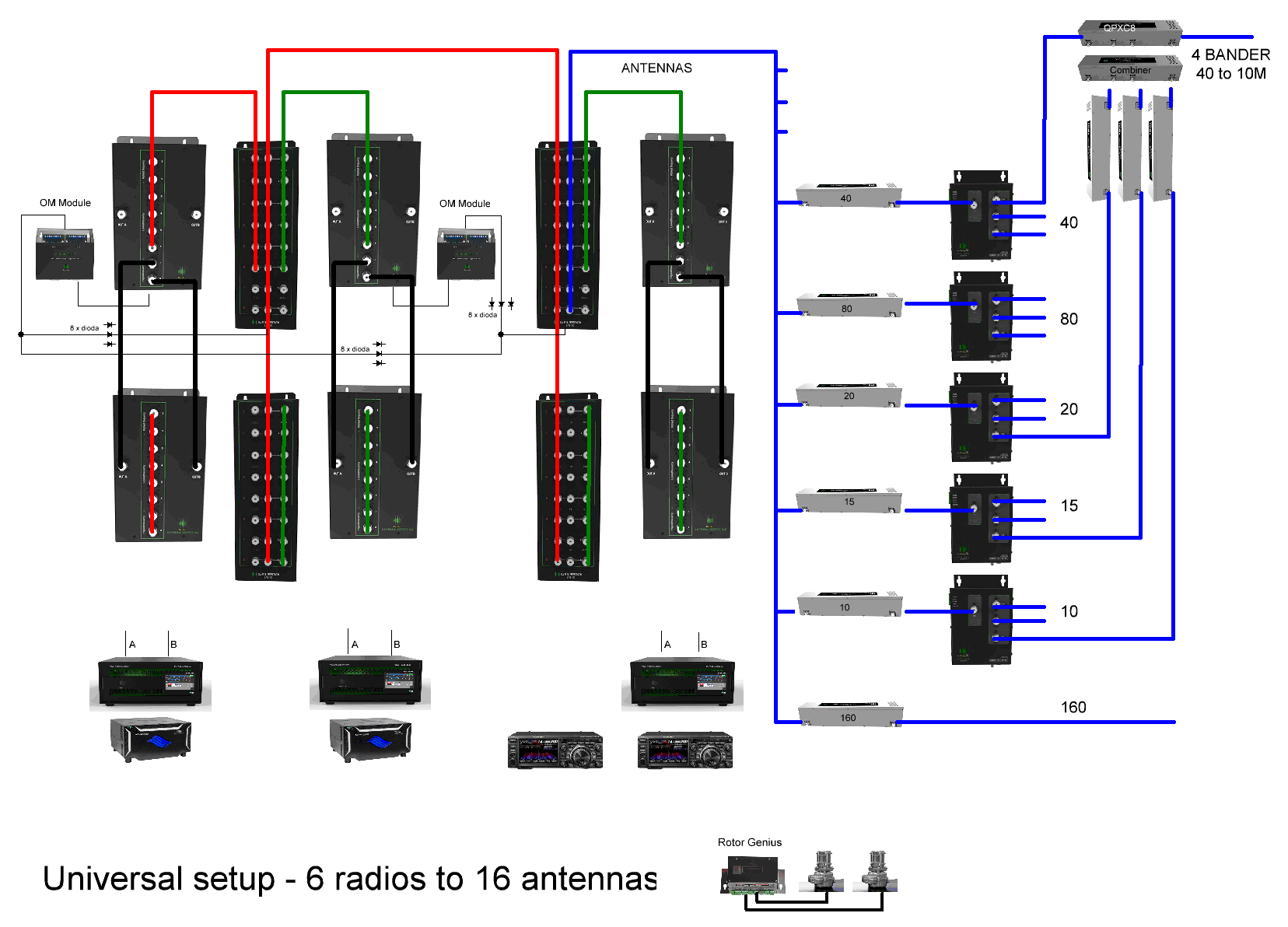

Six radios and 14 antennas with power splitting in 3 directions.

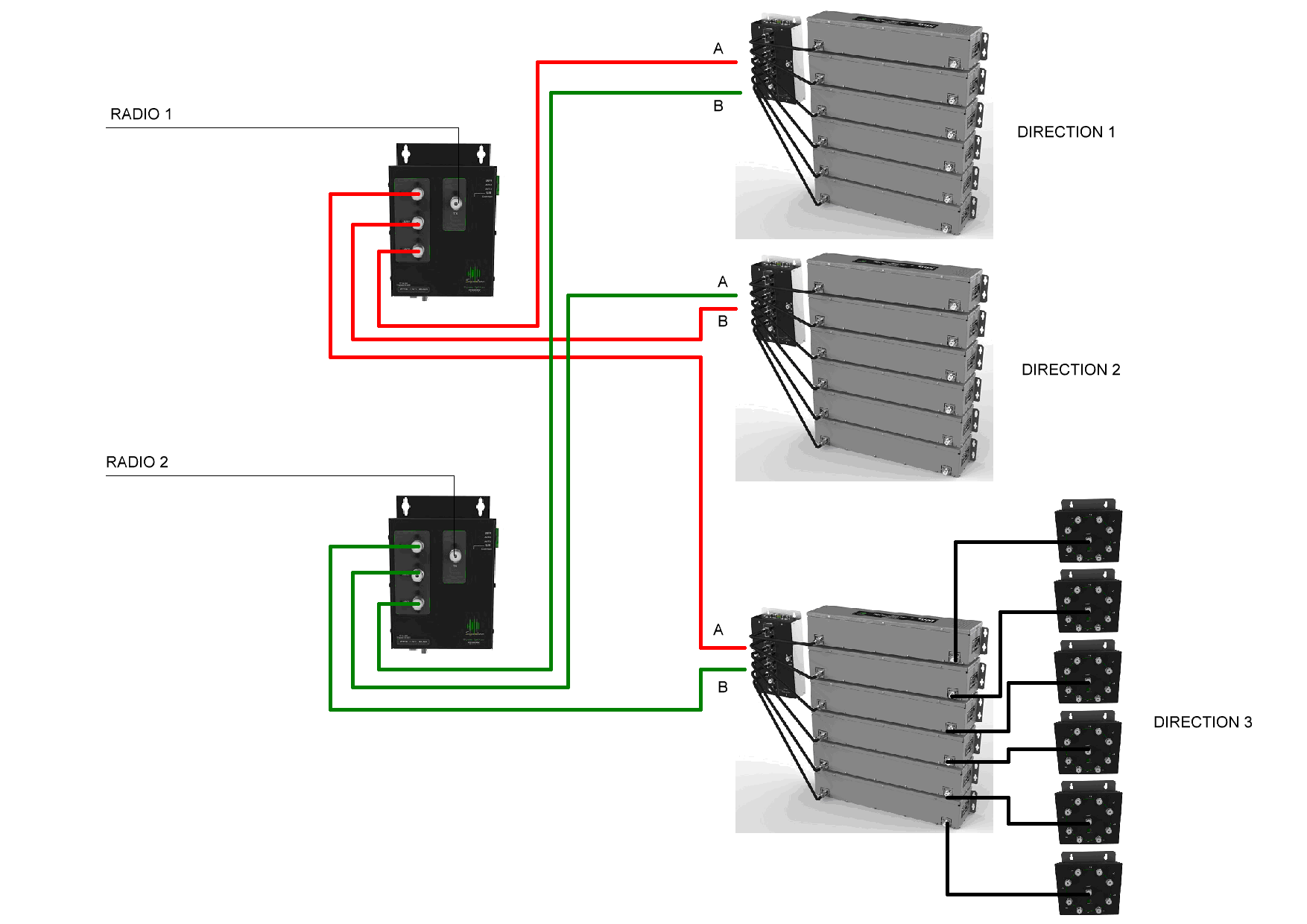

Power splitting in 3 directions - basic
Multi-Multi One band with InBAND radio with Flex and PGXL

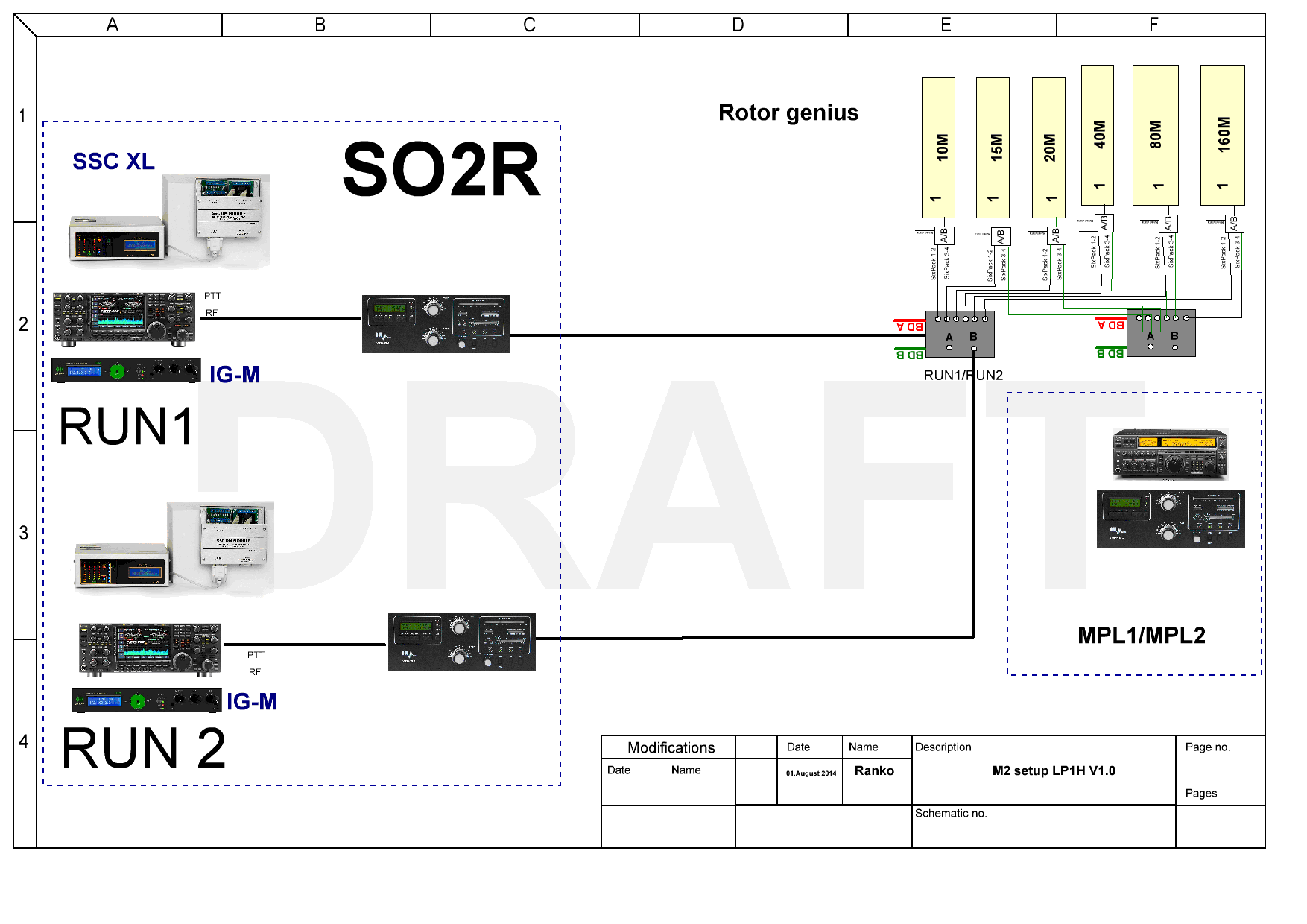

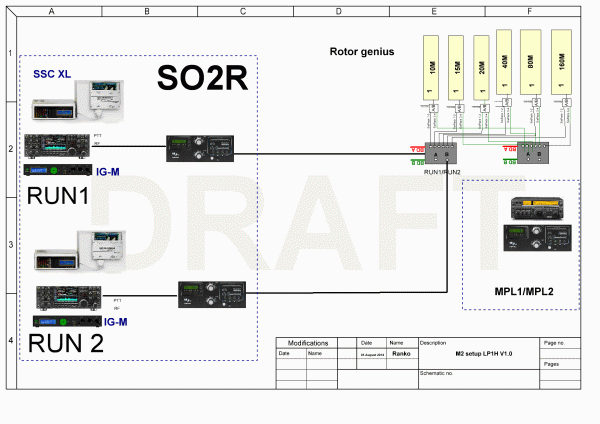

1. Basic SO2R setup with Multi extension

Basic SO2R with 4 radio outputs, making future extension to Multi possible.

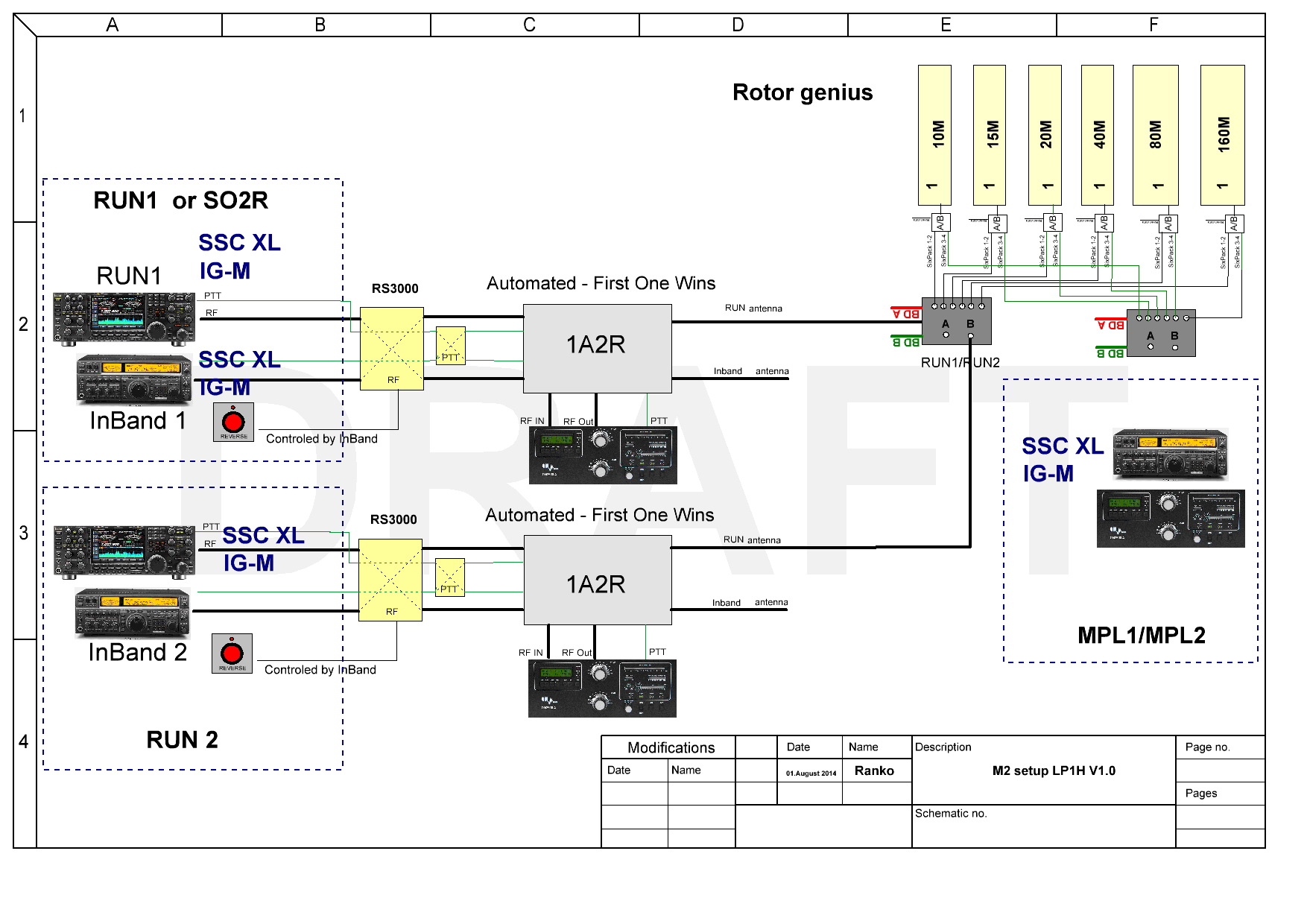

2. Basic SO2R/M2 setup with In Band stations

For serious M2 setup In Band stations are mandatory. This setup is a SO2R or M2 configuration with one In band radio on each RUN band.

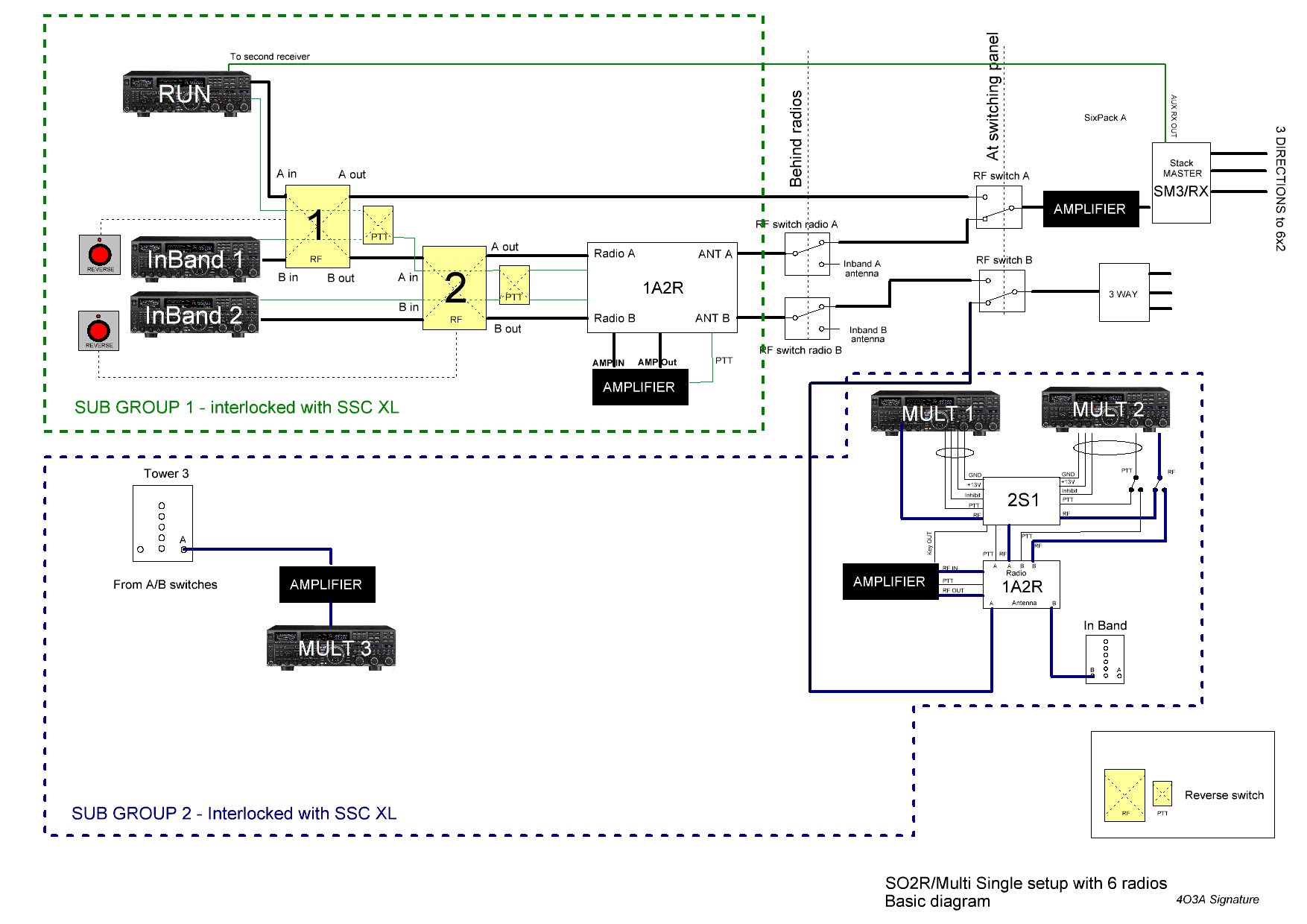

3. SO2R/MS full configuration

This is the 4O3A MS station used in CQWW SSB and CW, winning both contests and setting the new EU record in CQWW CW. Nowdays it is changed as new LAN devices are introduced.

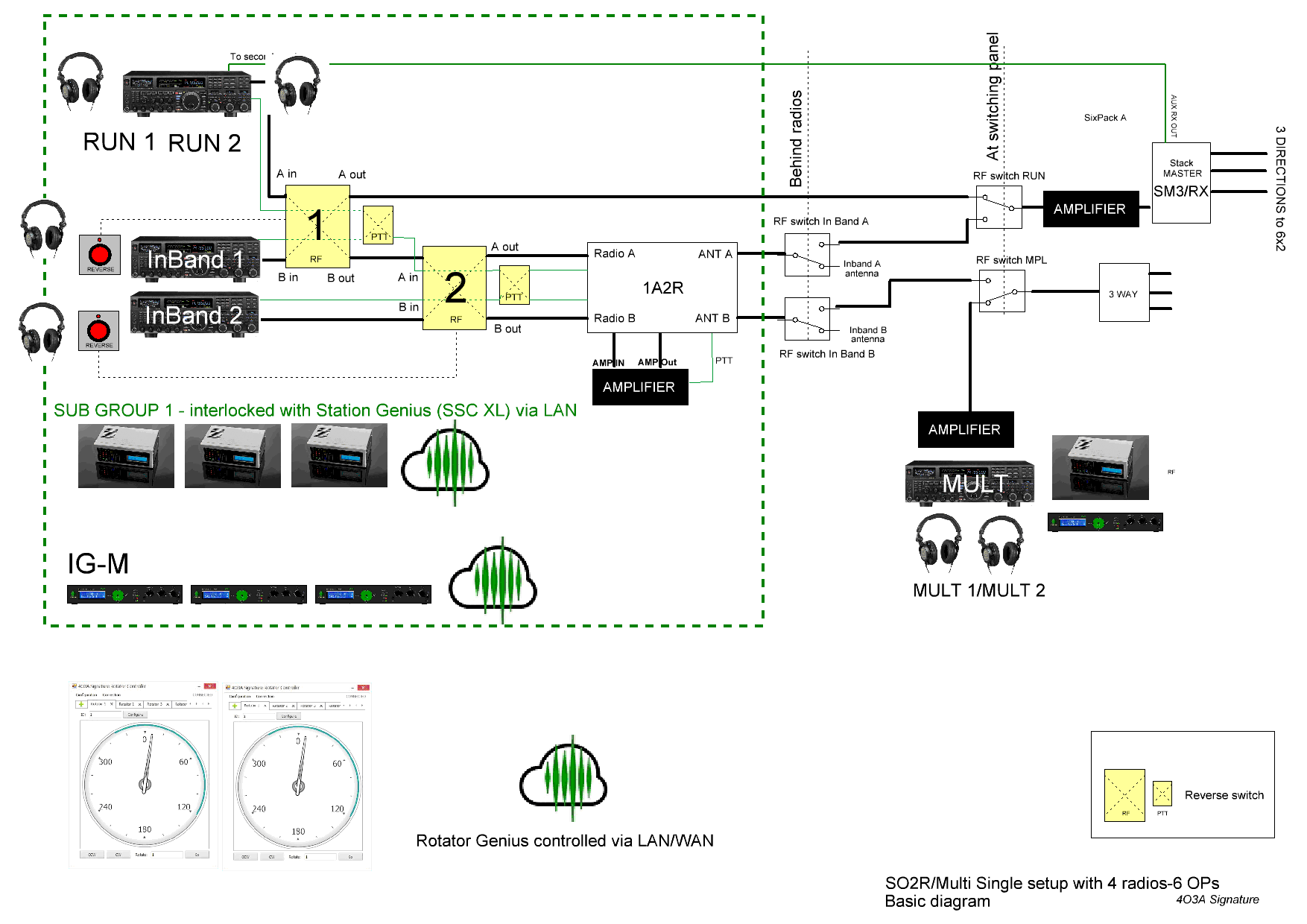

4. SO2R/MS with new Genius products and 4 radios

New Genius family devices introduced in 2015 make significant changes, making the platform more powerful. In diagram attached you have SO2R or MS with 2 In Band stations, and 2 MPL radios (One TRCV with 2 RX build in).

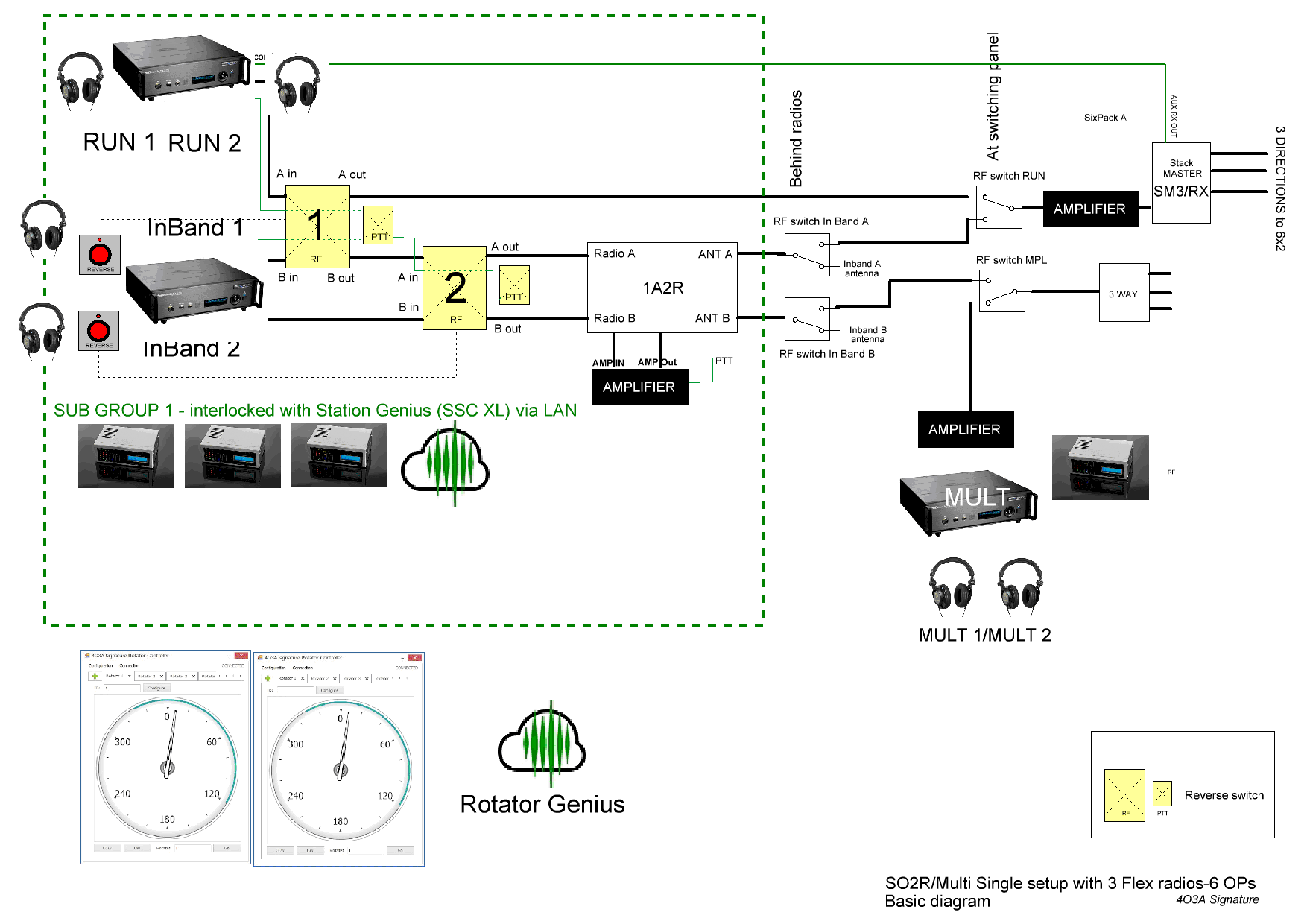

5. SO2R/MS setup with 3 Flex radios and maximum possibilities

This is SO2R/MS setup using 3 Flex radios series 6000. It is simpler, more powerfull and more efficient than configuration with classic radios, whatever model is used.

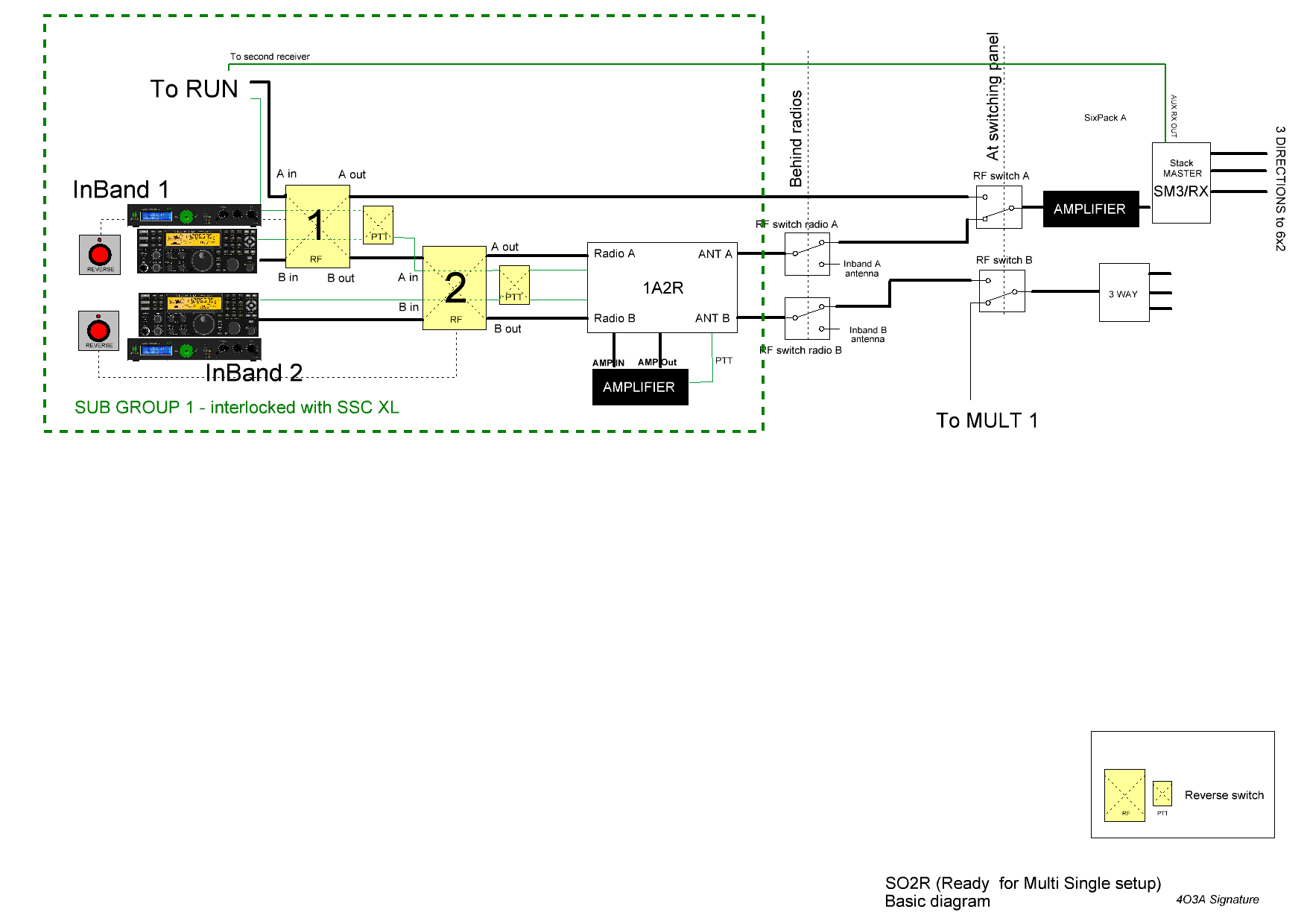

6. SO2R station, ready for MS

If you want SO2R, but you are planning to extend it to MS, then you should make wiring as on the diagram. Future radios are just to be pluged in.

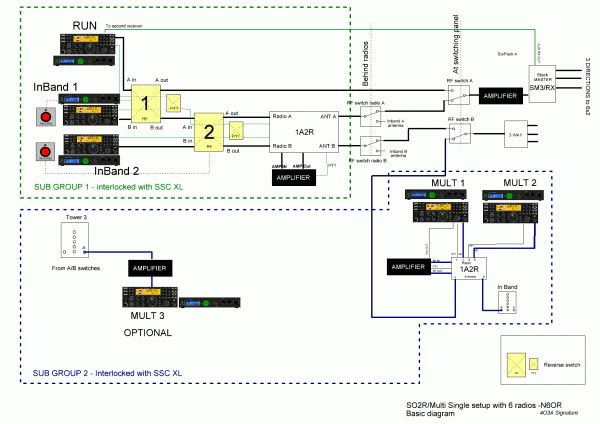

7. SO2R/Multi single with Genius devices and 7 operators at any time

This is the setup which makes you most efficient and flexible. Practicaly, In Band stations will always have one new station on hold to be logged, and MPL stations won’t miss any multipliers.

8. SO2R configuration for a limited space, using one tribander/40M and antennas for 80 and 160

Everything on the station is controlled over the LAN network, and can be remotely controlled as well. Includes radio, antennas and rotators. Also WARC and 6M antennas are conneted, for daily DXing.

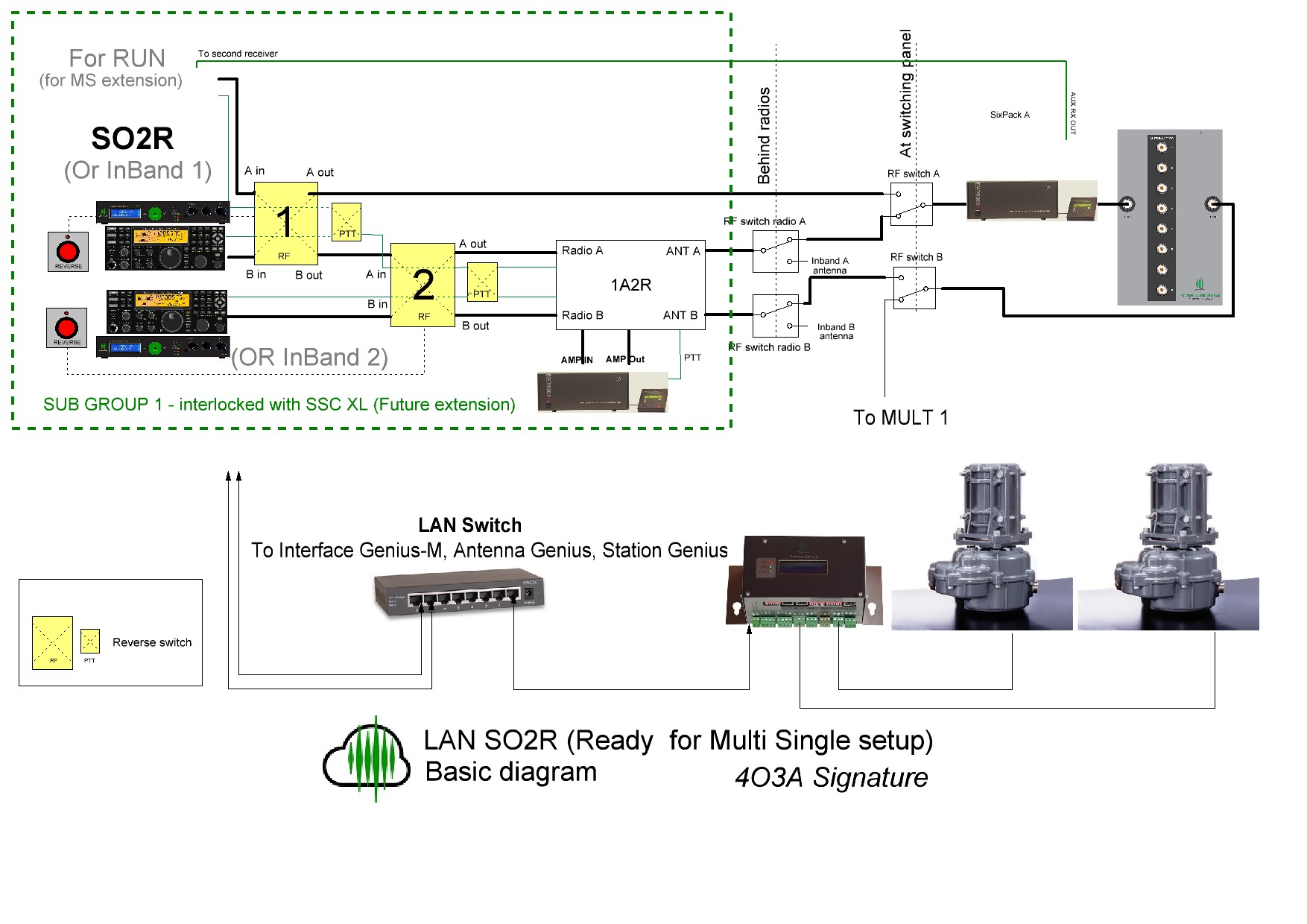

9. SO2R station ready for MS, all on LAN

Simplified diagram of station with new Genius Family devices, extendable for MS. As all is controlled over LAN, the station can be remotely controlled. Future features can be upgraded with firmware. Configuration is made mostly with configuring devices and importing CFG files. No needs to re-wire the station.

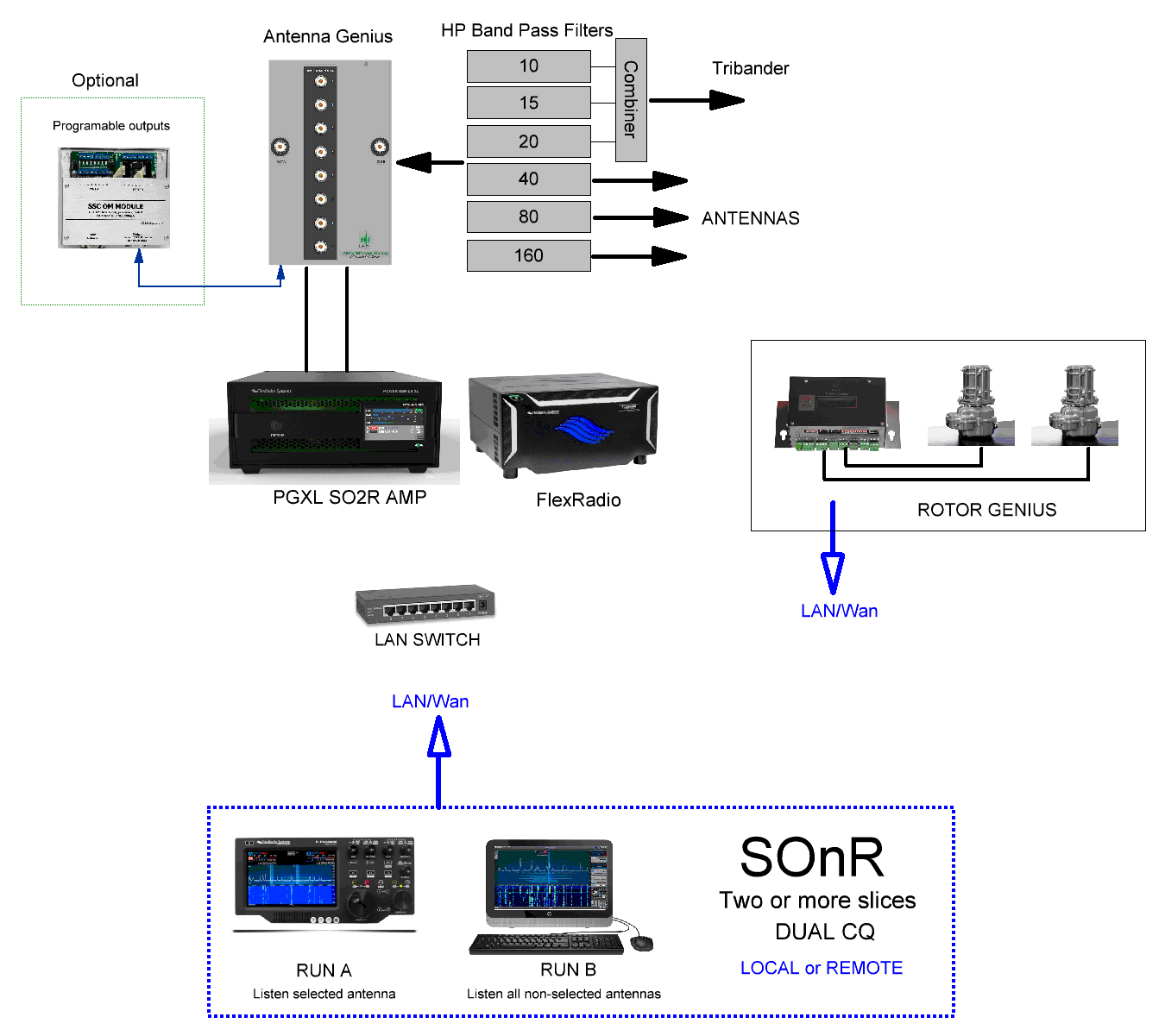

10. SO2R with Flex and PGXL and tribander basic

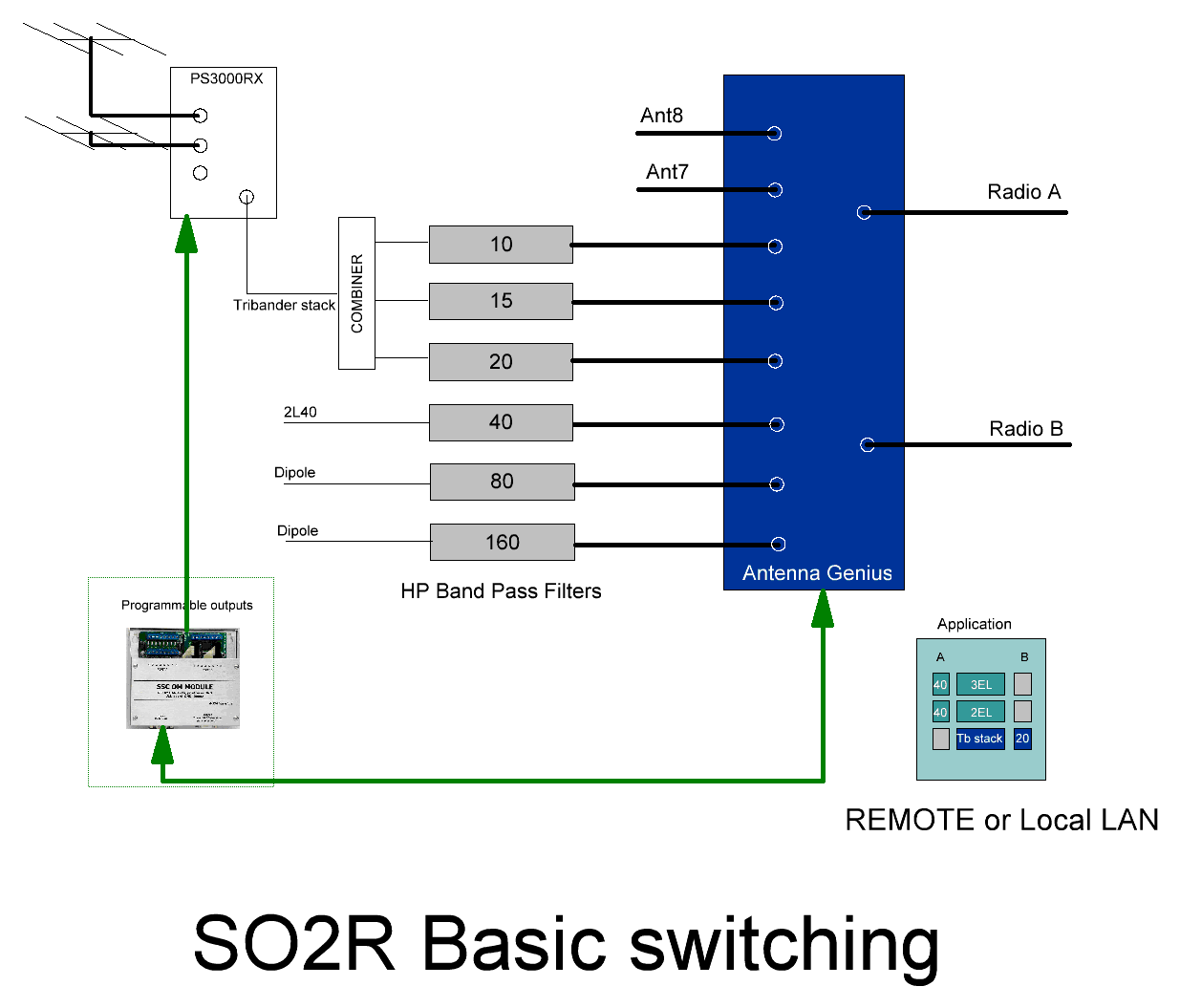

11. SO2R with switching

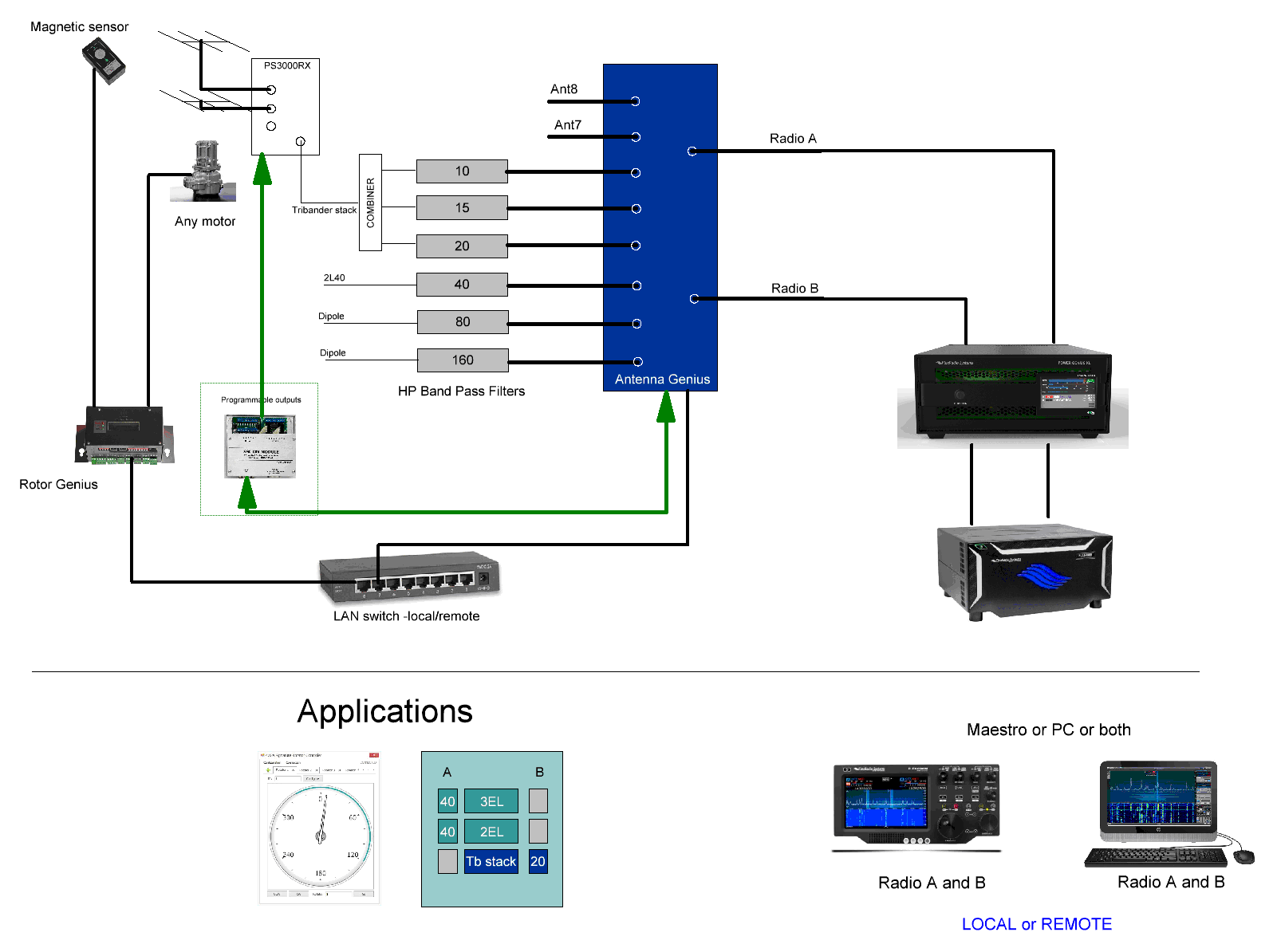

12. SO2R with switching and rotor

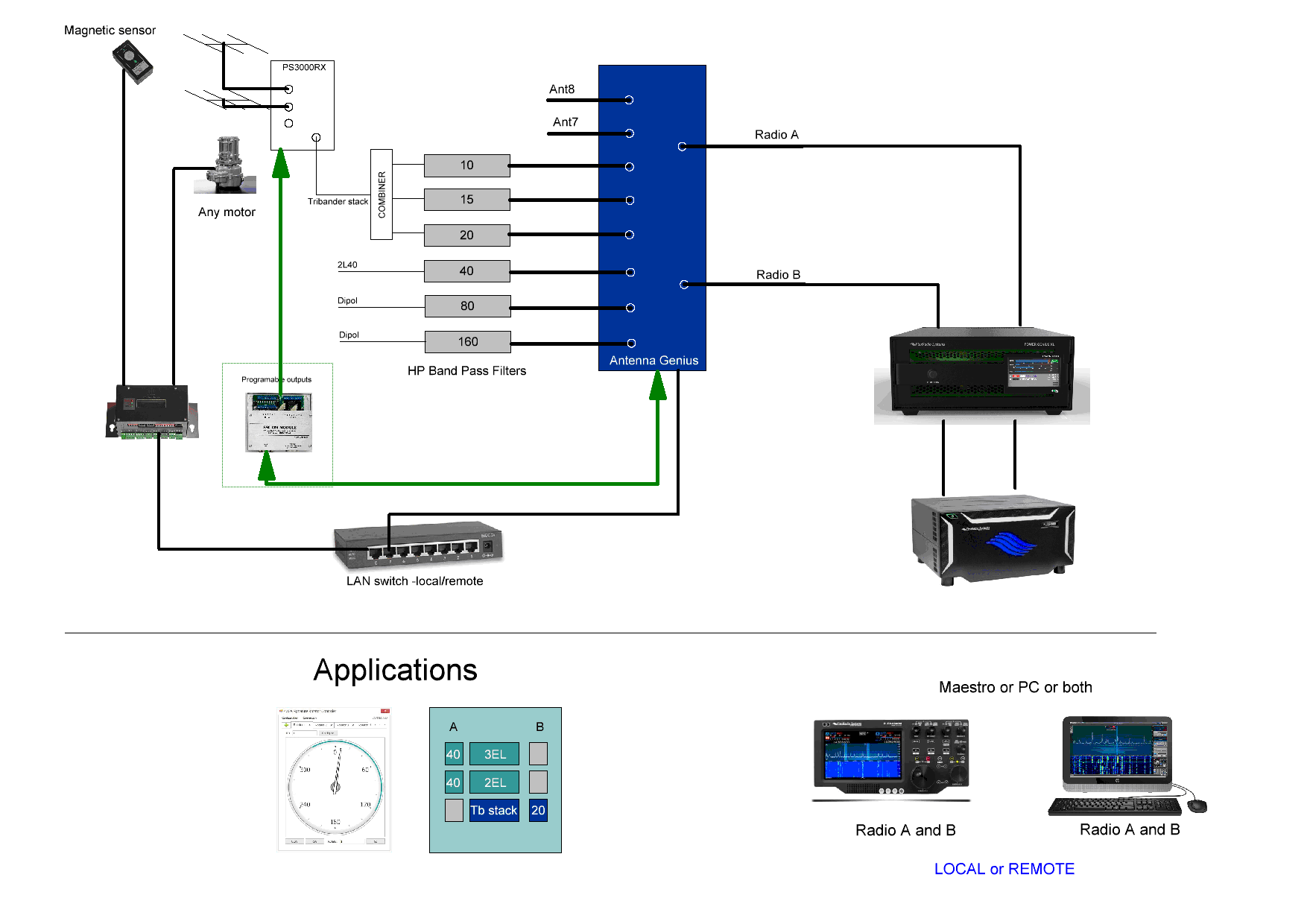

13. SO2R with switching, rotor, PGXL and Flex

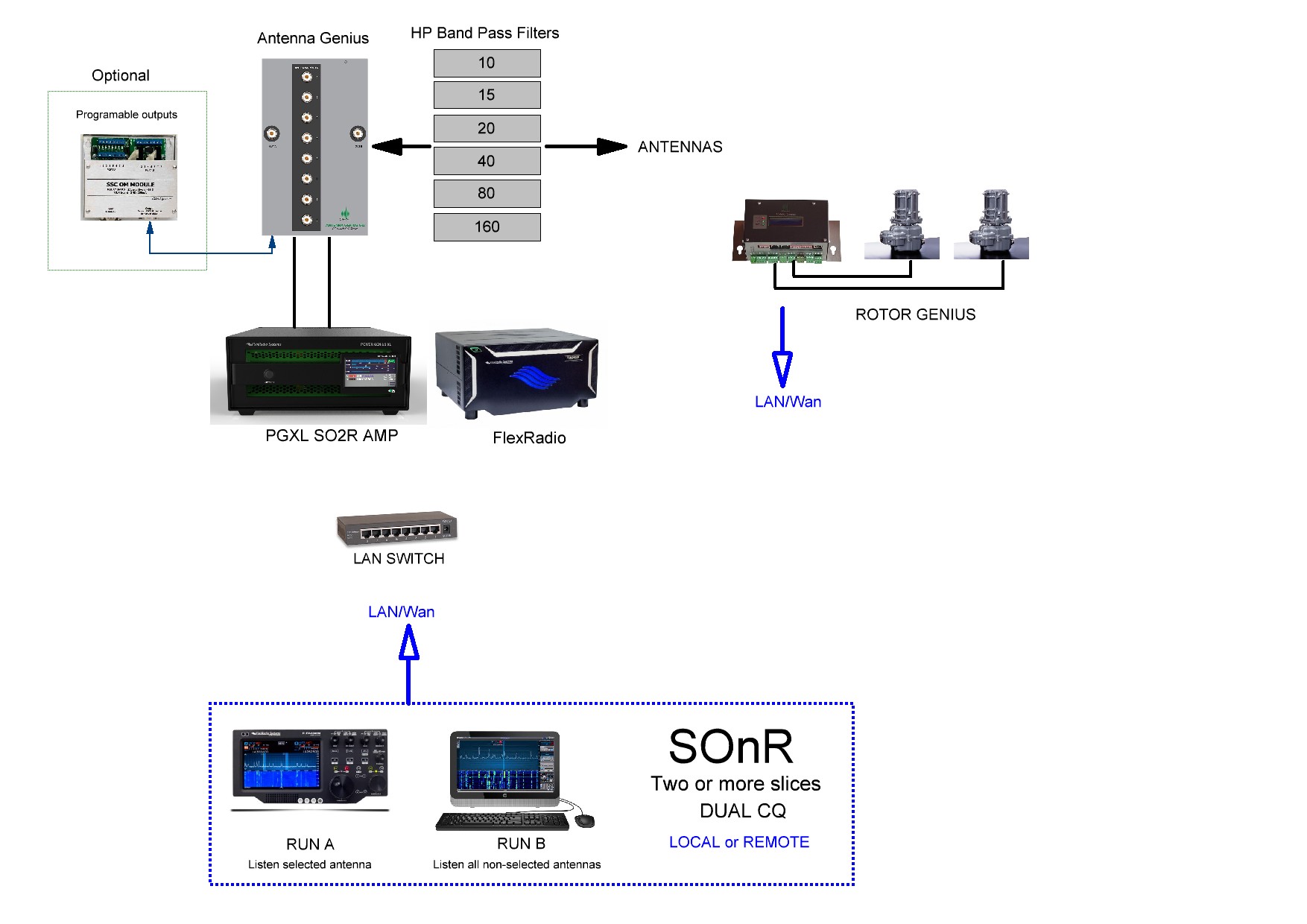

14. SOnR with Flex and PGXL

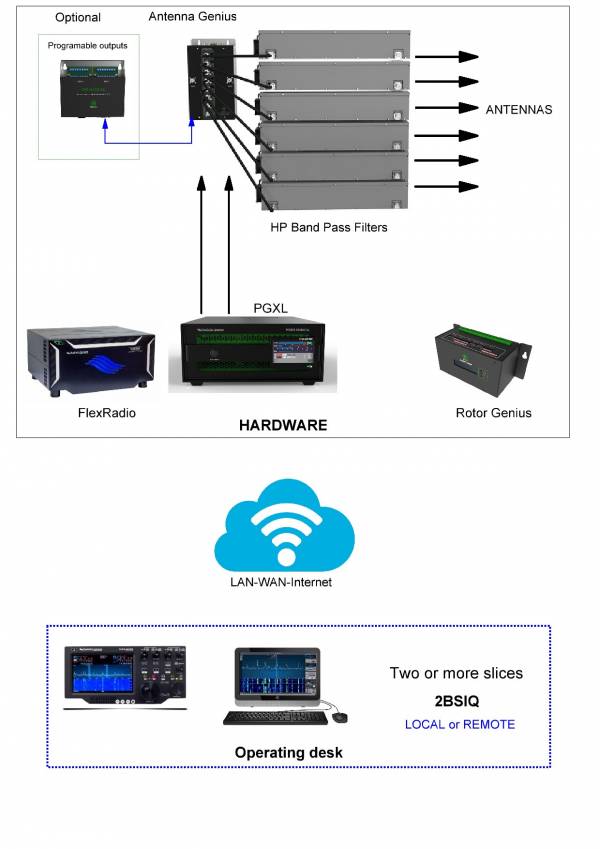

15. SO2R with Flex and BPFs

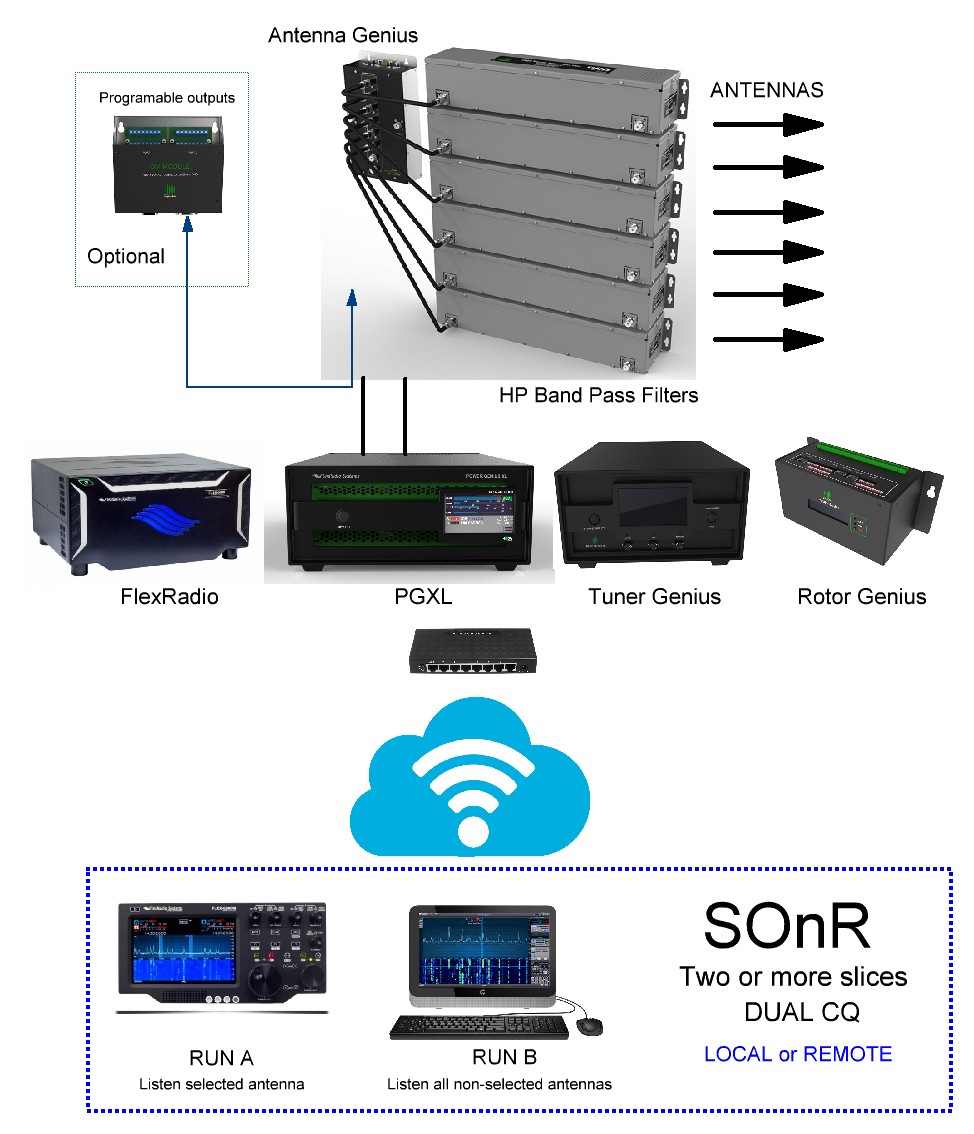

16. SO2R with Flex, PGXL, TGXL and filters basic

17. SO2R MS M2 using two FlexRadios

Advanced LAN controlled configuration with two FlexRadio radios.

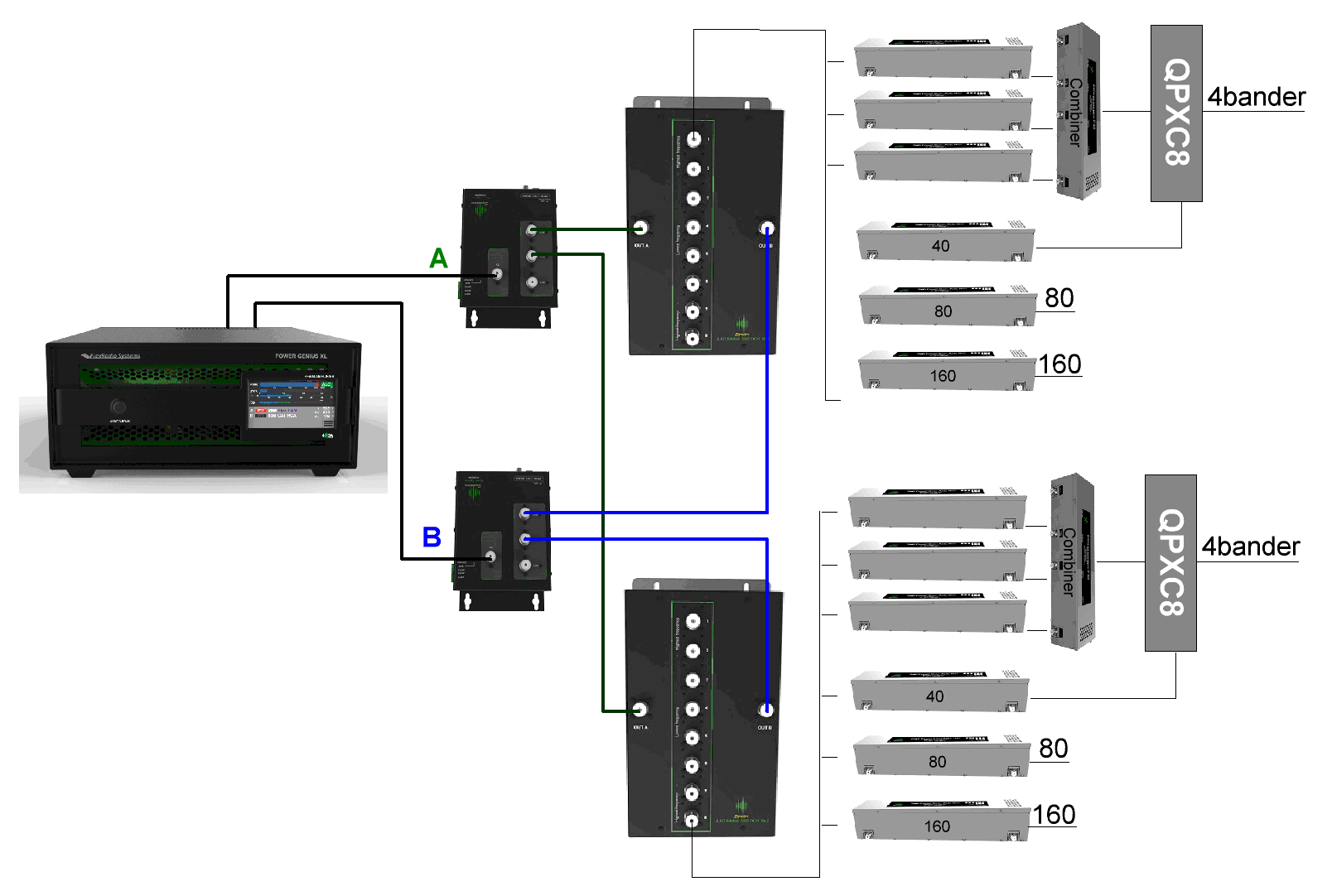

18. SO2R in two directions with four tribanders

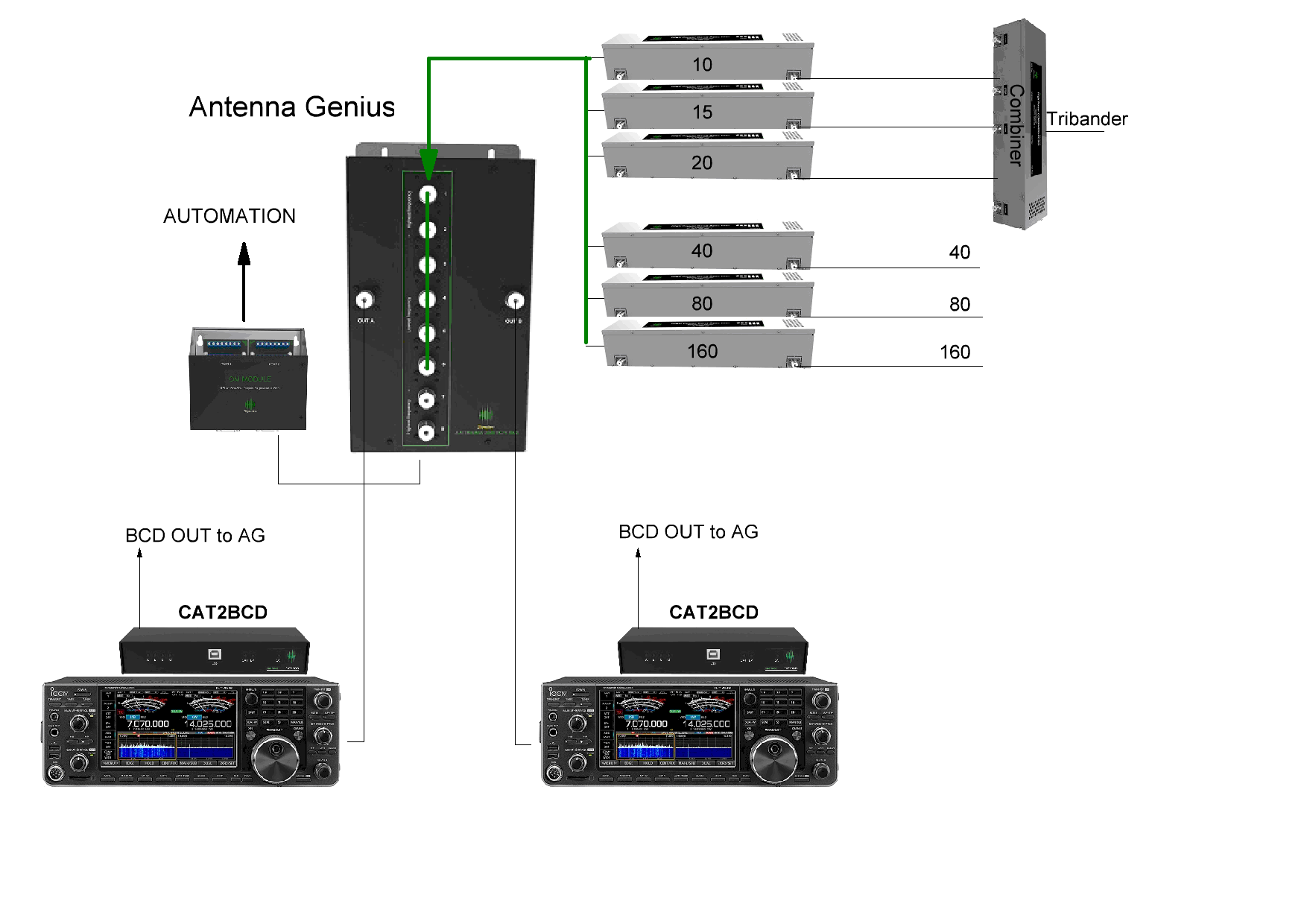

19. SO2R with TB and two IC-7610

20. SO2R with WARC TB and two IC-7610

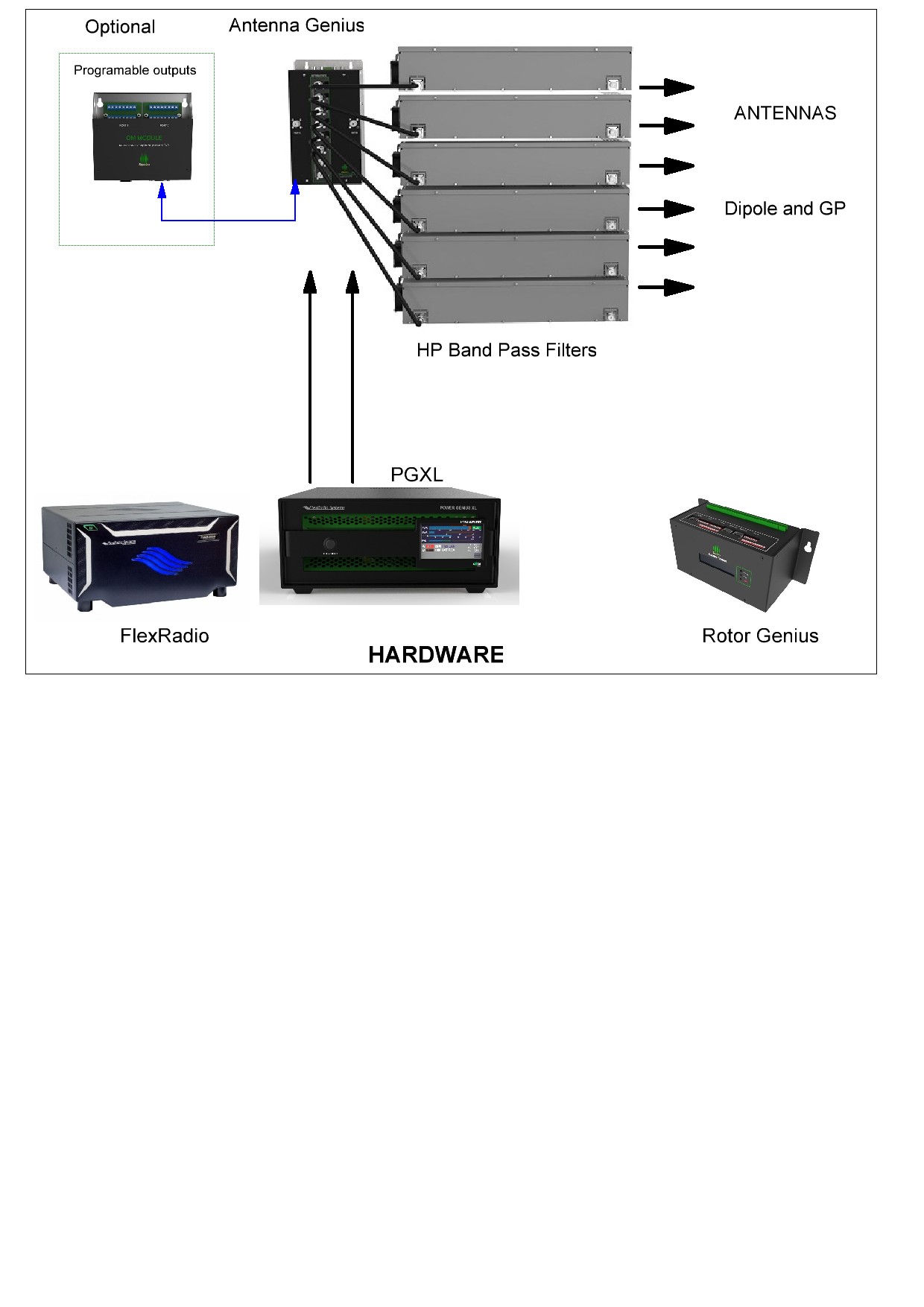

21. SO2R basic setup with AG, PGXL and FlexRadio

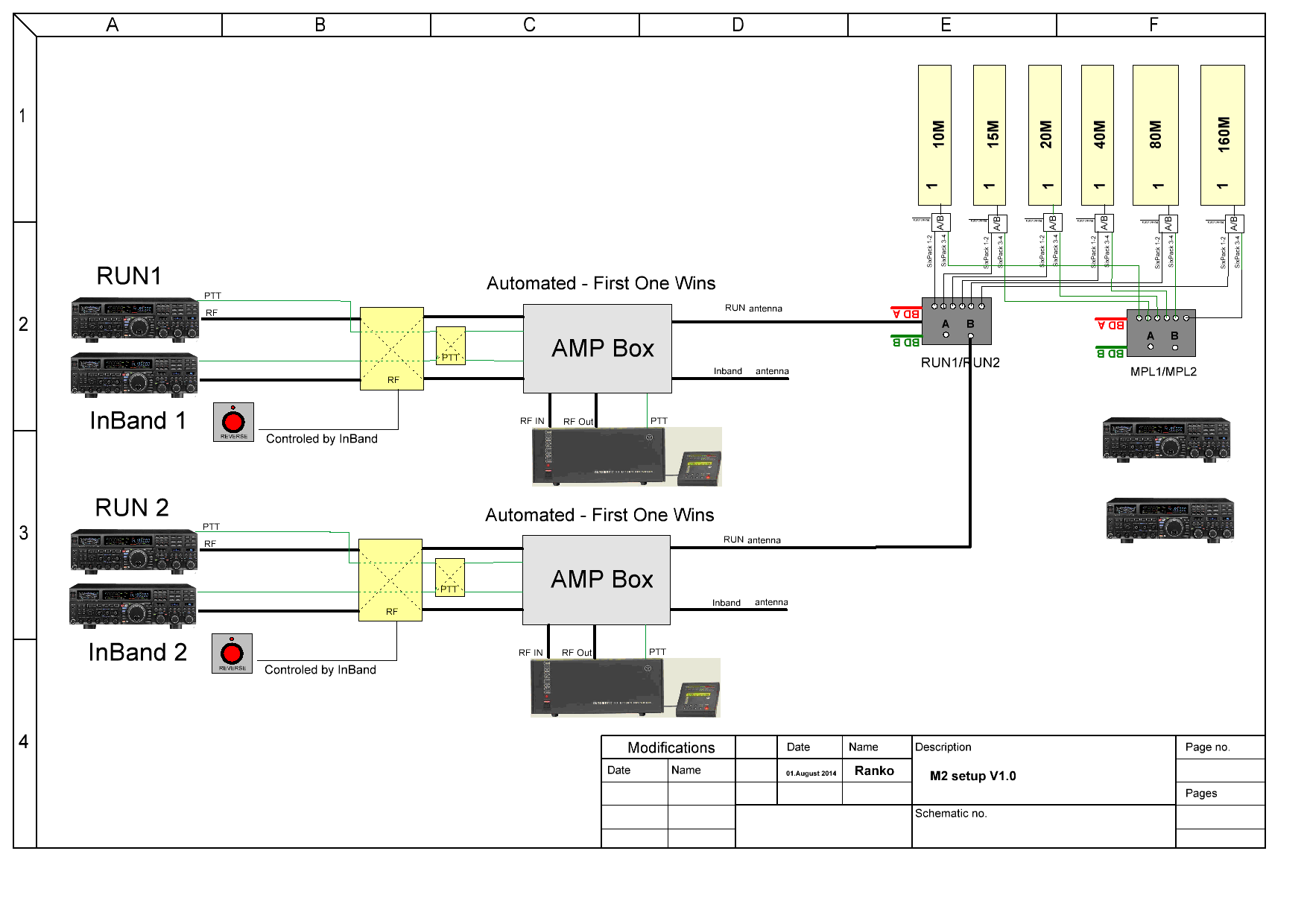

22. Standard M2 setup with two In Band stations on each RUN band

In Band radios are sharing same amplifier with RUN as they can have only one signal at a time. Our 1A2R switch will take care of switching AMP to radio. Which ever pushes PTT first wins (First One Wins). The RS3000 reversible switch, connected before 1A2R can swap antennas in between radios. For example, if In Band radio needs to work a new multiplier, he can take over the big RUN antenna, swapping his antenna with RUN, and when MULT is worked, swap it again to normal position. RS3000 Controller has uC build in and prevents hot switching whenever one of PTTs is active. It makes opetartion of In Band radios much more efficient.

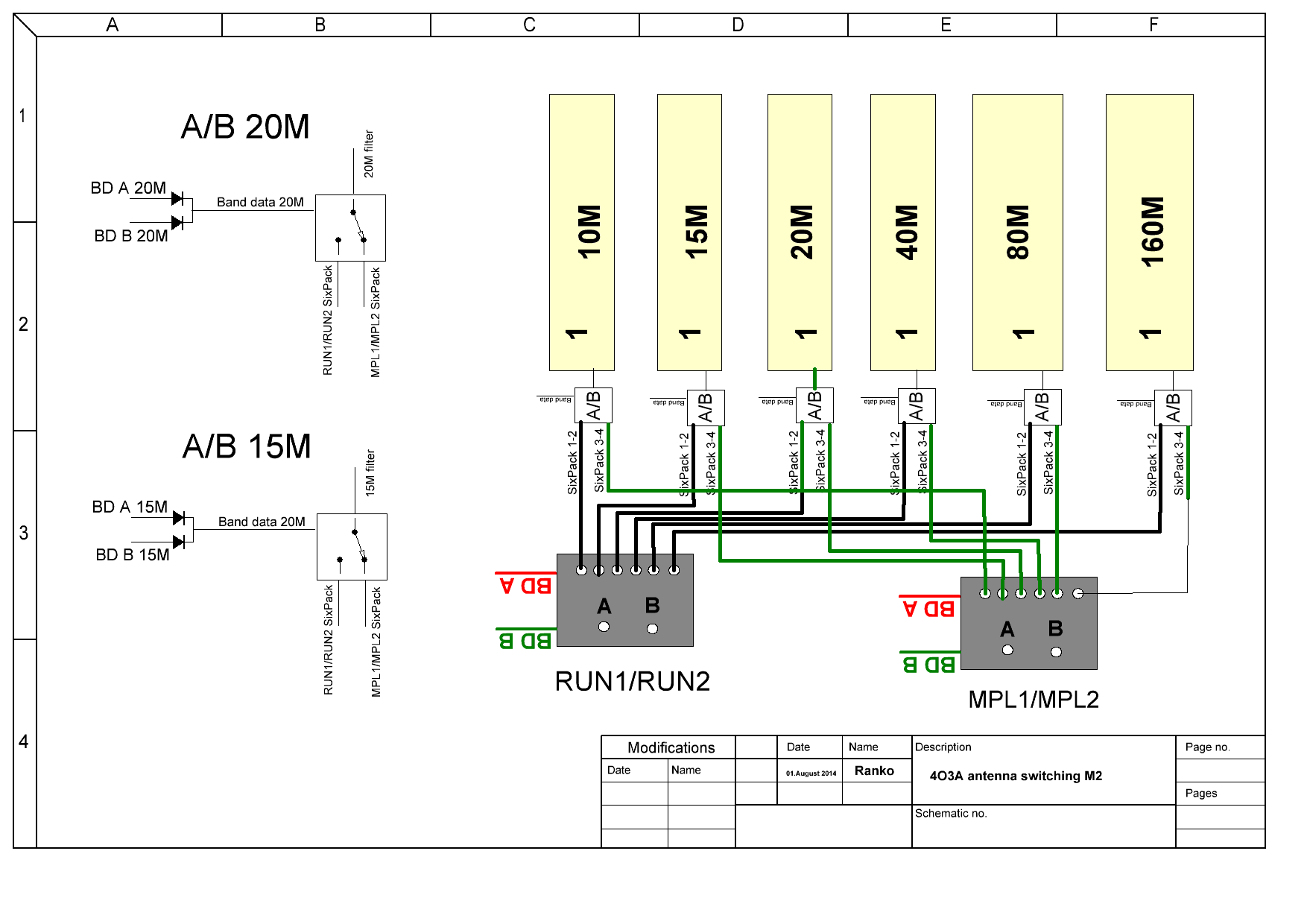

23. M2 antenna / HP BPF switching

Diagram shows switching of filters and antennas for distributing to four radios. It’s very flexible for MS and M2. As shown, you need just one set of HP BPFs, as BPFs are in line with antennas. It’s way to have highest isolation and harmonics suppresion.

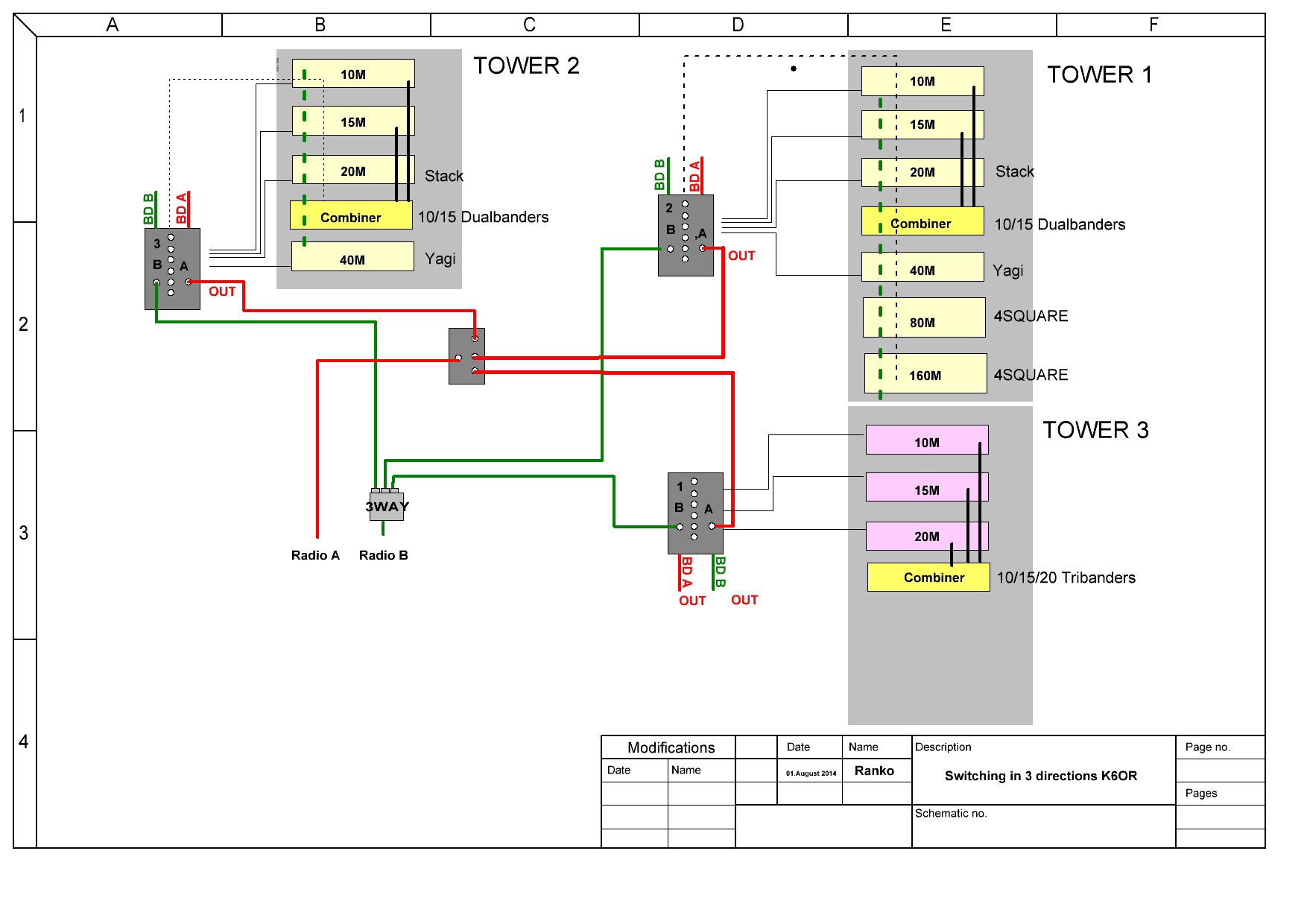

24. Antenna and HP BPF switching for 3 directions

Having 3 directions is very efficient. You do not need to rotate towers often, you can split power in more directions making you loud everywhere. It becones a standard for serious contesting.
