CAT2LAN Interface

Revolutionize your ham radio experience by transforming your traditional setup into a cutting-edge, network-connected powerhouse. This innovative accessory unlocks the full potential of your radio by reading the crucial CAT/CI-V band data and seamlessly converting it into TCP/IP (LAN) format. By doing so, it turns your radio into a versatile network band server, enabling seamless integration with any Genius device, as well as any other third party advanced automation solution.
No longer confined to the limitations of a CAT/CI-V radio, you can now effortlessly connect to a vast network of Genius devices, expanding your communication capabilities and opening up a world of possibilities.

CAT2LAN interface is design to make your CAT or any Rs232 port available on the LAN. It makes possible to integrate any radio over the LAN with all Genius devices - Antenna, Amplifier, Tuner, Rotor and Station Manager (to be announced).

CAT2LAN includes a CAT, radio control interface that supports all common standards (RS-232, CI-V, Kenwood and Yaesu TTL).

CAT2LAN is designed to interface any amateur radio transceivers with any control interface. It is feature rich but easy to install and operate, provides automatic or manual control of CAT commands using dedicated application, or third party applications.

CAT2LAN INTERLOCT FUNCTION
Device can control status of ant transceiver (TX or RX) and based on it can create flexible interloct between radios, with different priority levels. Its easy to set it using display or App.

SPECIFICATION

SPECIFICATIONS
DC INPUT: 12 - 16VDC

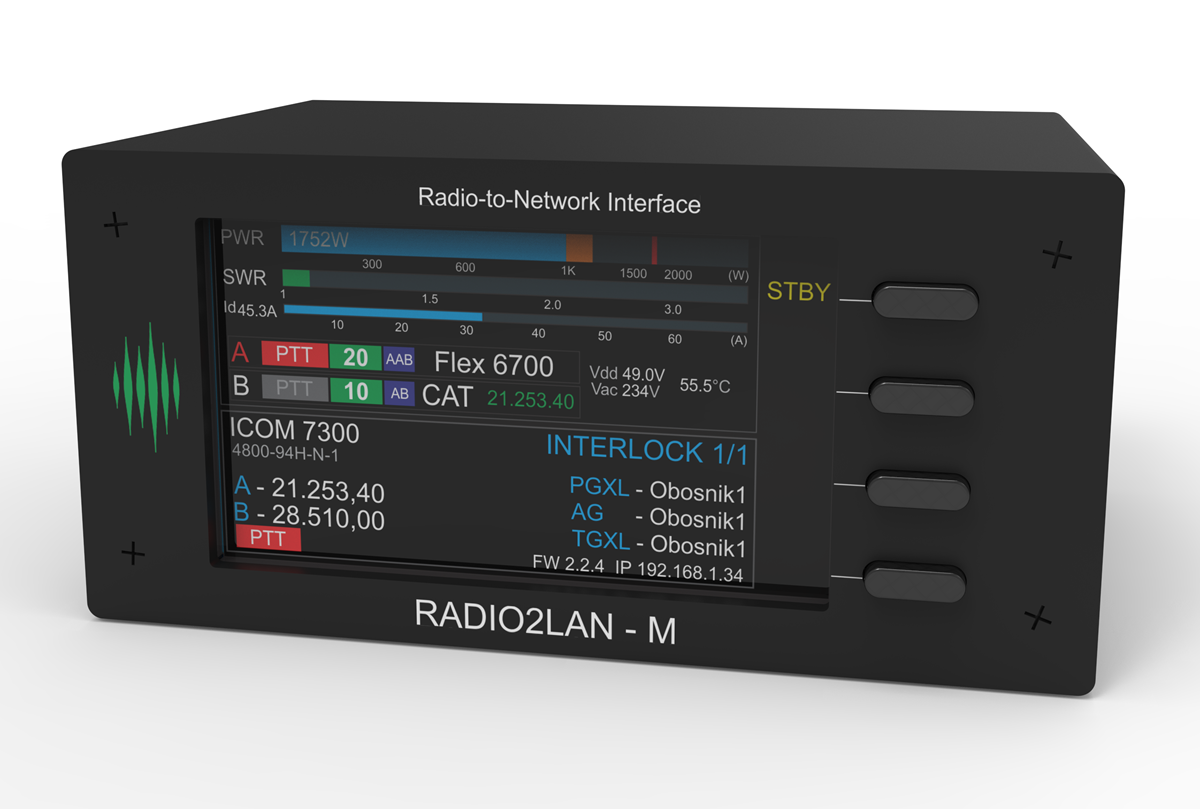

Display: 2,8" touch
PTT IN: To GND
PTT OUT: Controlable by MCU
AUX IN: Adjustable to be + or GND
AUX OUT: Controlable by MCU

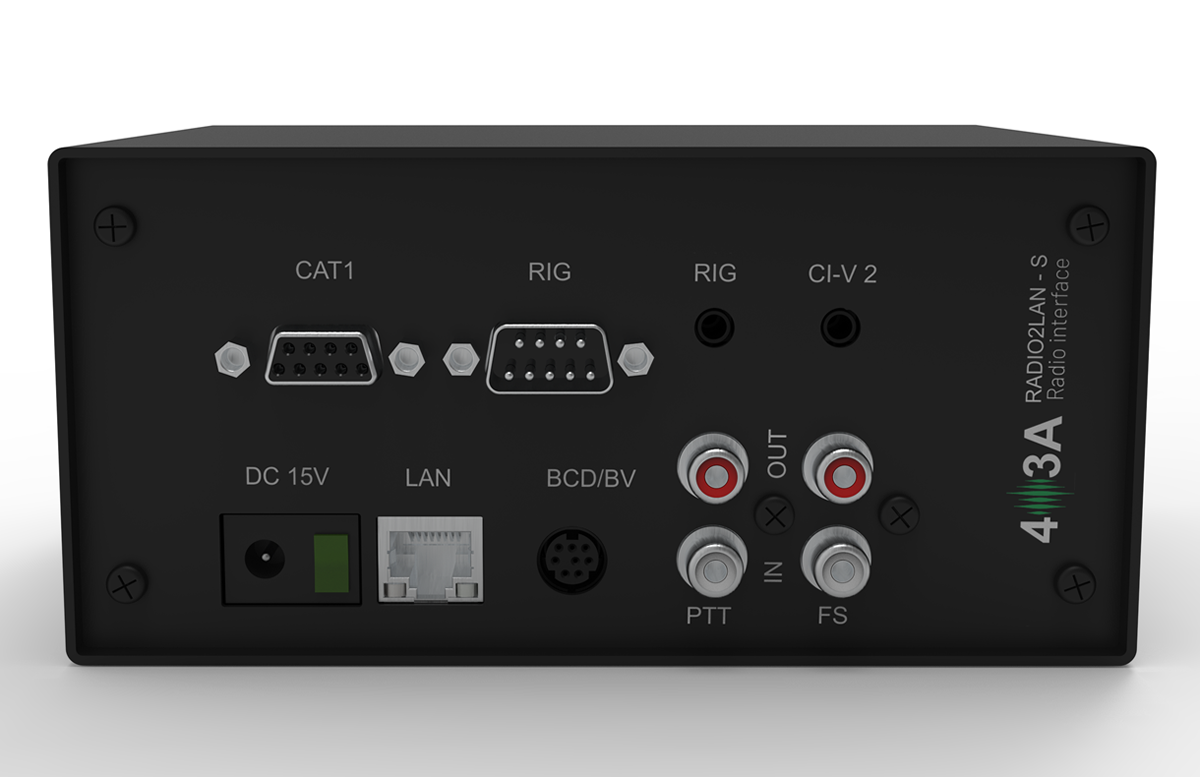

CAT connectors: IN and OUT, DB9
CI-V connectors: IN and OUT, 3,5mm MONO
BCD/P2B connector: DB9
