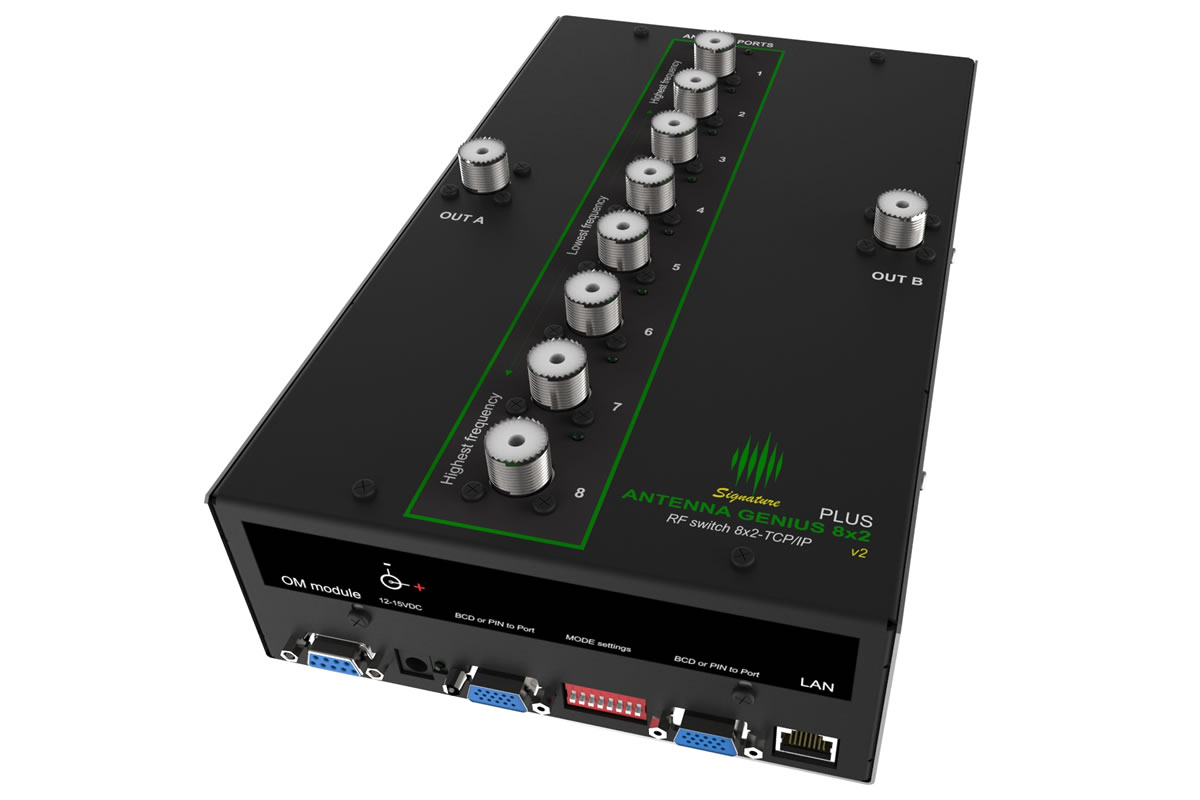

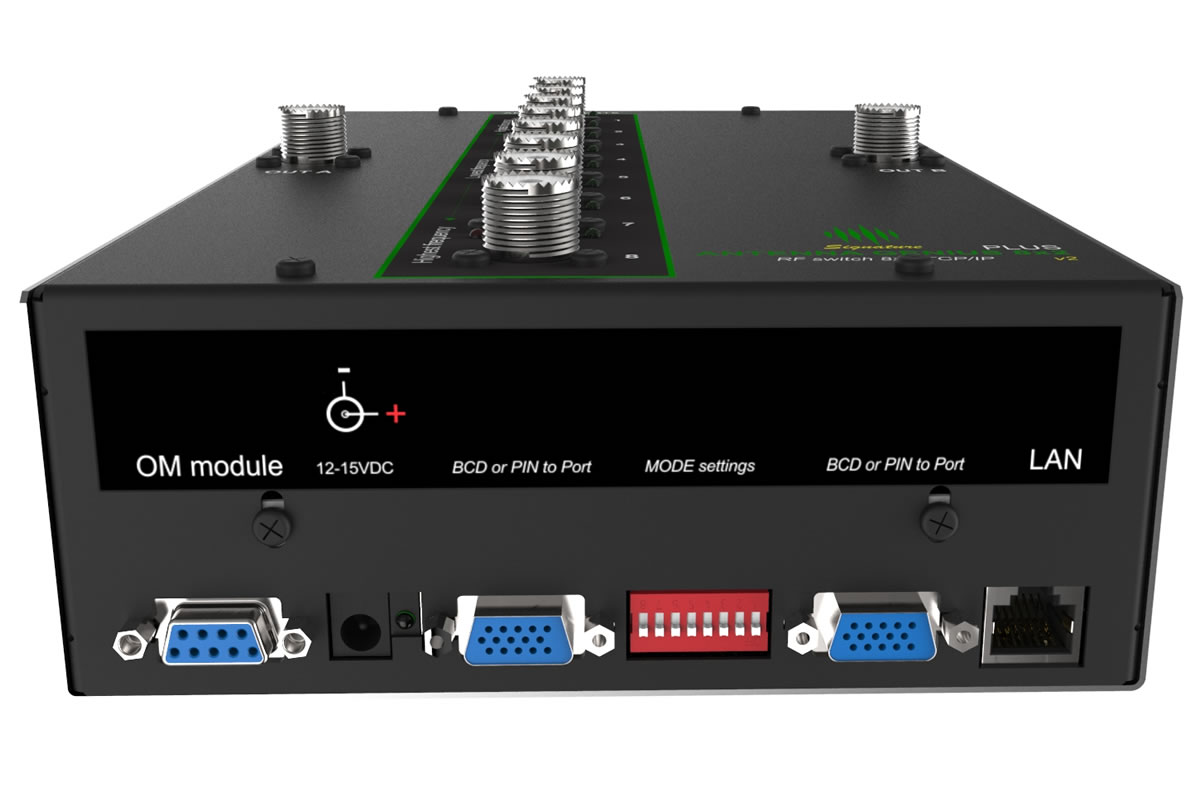

Antenna Genius 8x2

899.00€
Product Code: 226
Brand: 4O3A Signature
* Connector Type:

RS232/CI-V to BCD convertor:

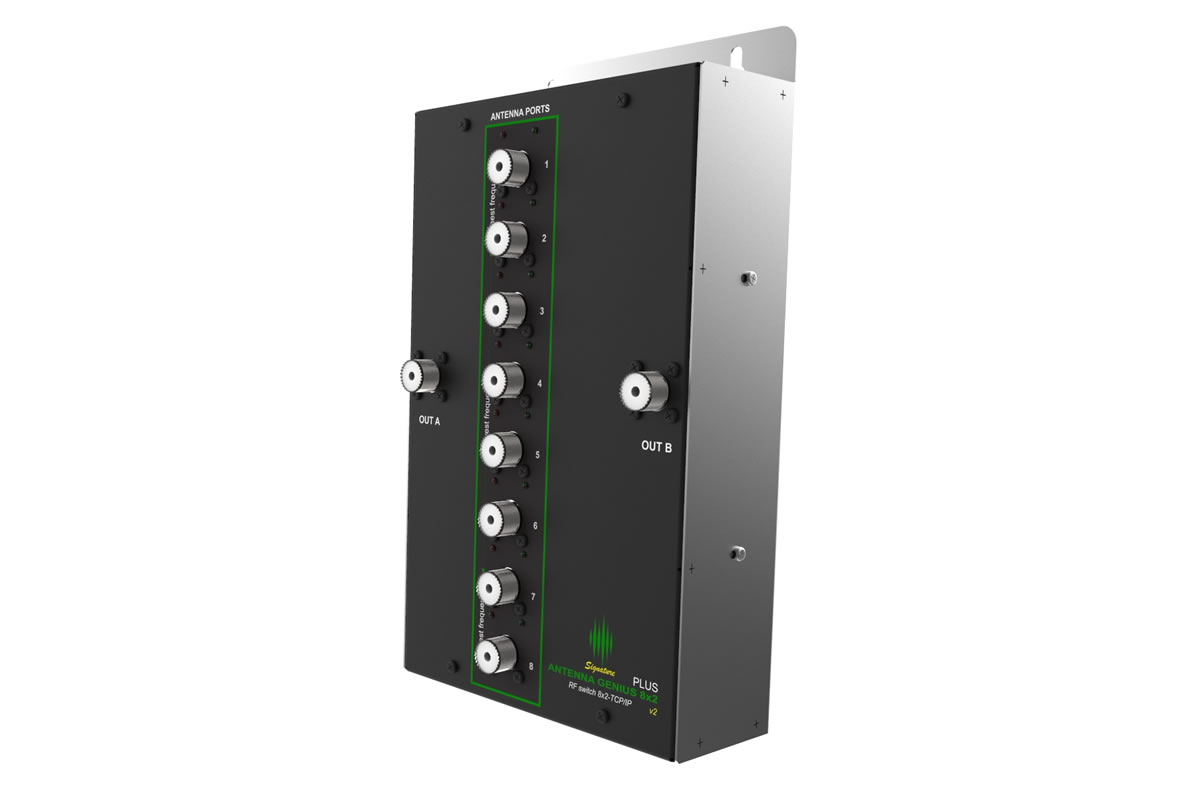

Antenna Genius is a smart antenna switch that features 8 antennas to 2 radios. Perfect for SO2R and multi-op contesting or making the most of your dual RX transceiver.

LAN/WAN capability was a core design capability from day one and not an afterthought. The entire Genius product line: Interface Genius, Antenna Genius, Rotator Genius and Station Genius all work together seamlessly both locally and remotely.

Regular firmware updates will continue add features to all 4O3A Genius devices free of charge for life.

Each 4O3A Genius device has a comprehensive API to allow deep integration with other ham gear and software for logging, contesting, digital modes, etc.

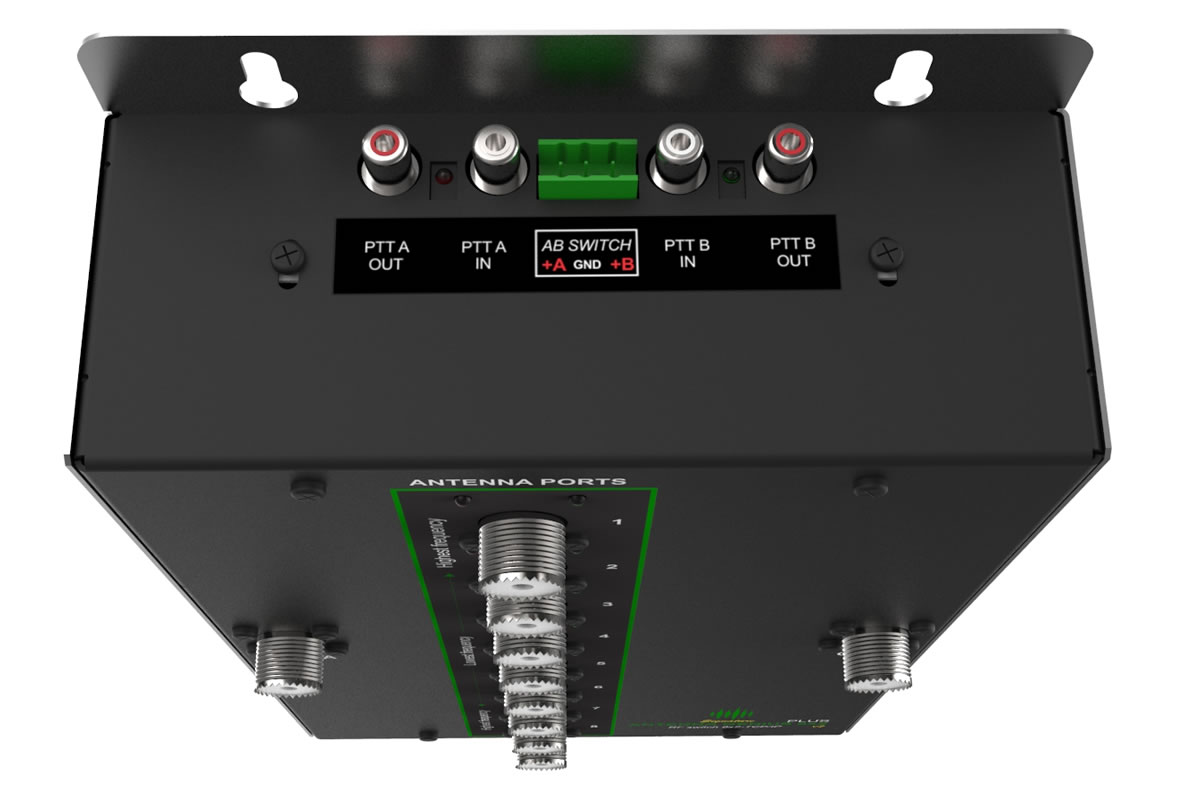

The new version of the AG 8×2+ switch features dedicated PTT IN and PTT OUT ports to prevent hotswitching.


Examples of Setup

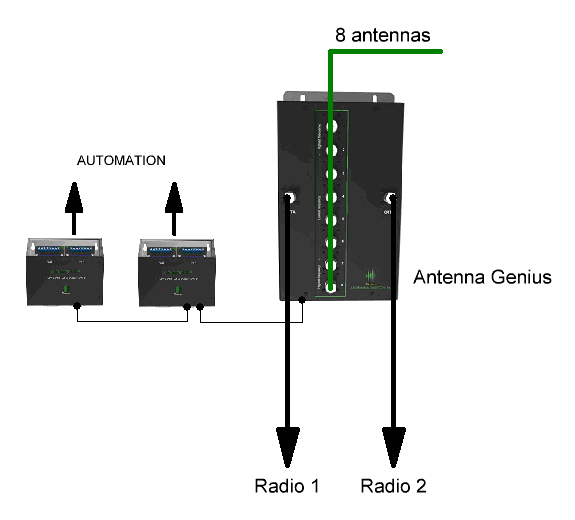

2 radios - 8 antennas

2 radios - 8 antennas

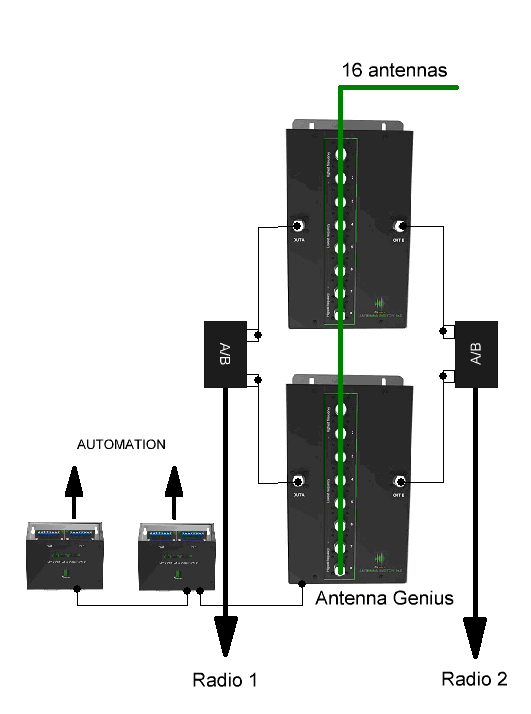

2 radios - 16 antennas

2 radios - 16 antennas

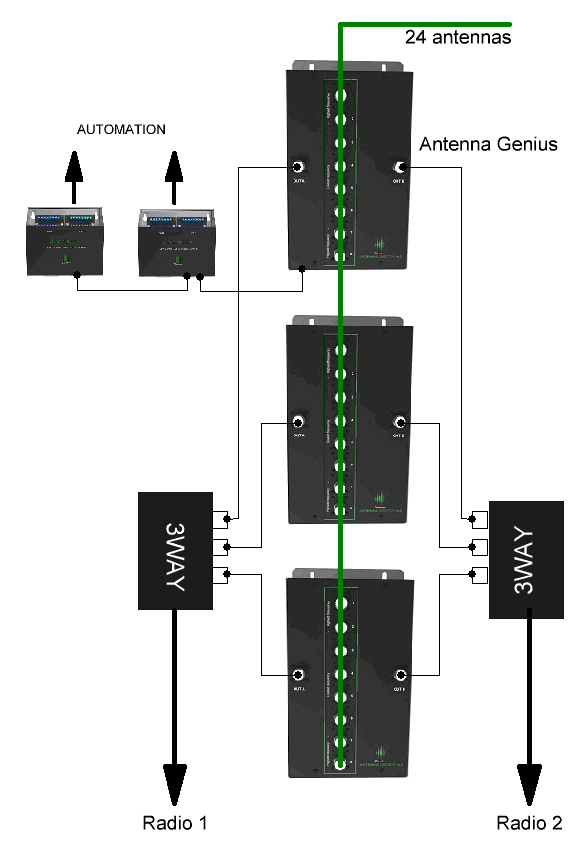

2 radios - 24 antennas

2 radios - 24 antennas

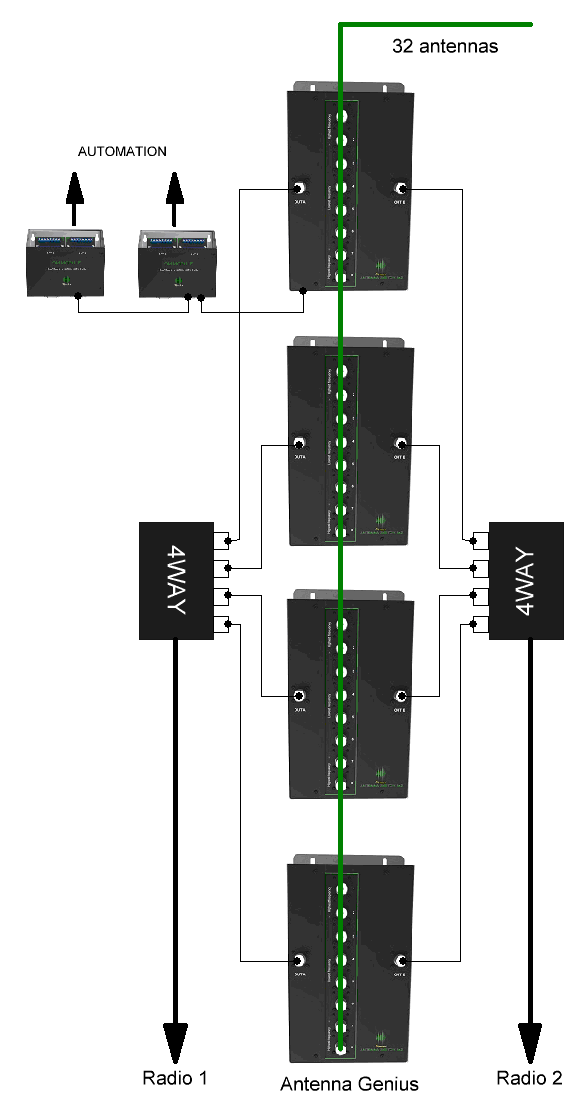

2 radios - 32 antennas

2 radios - 32 antennas

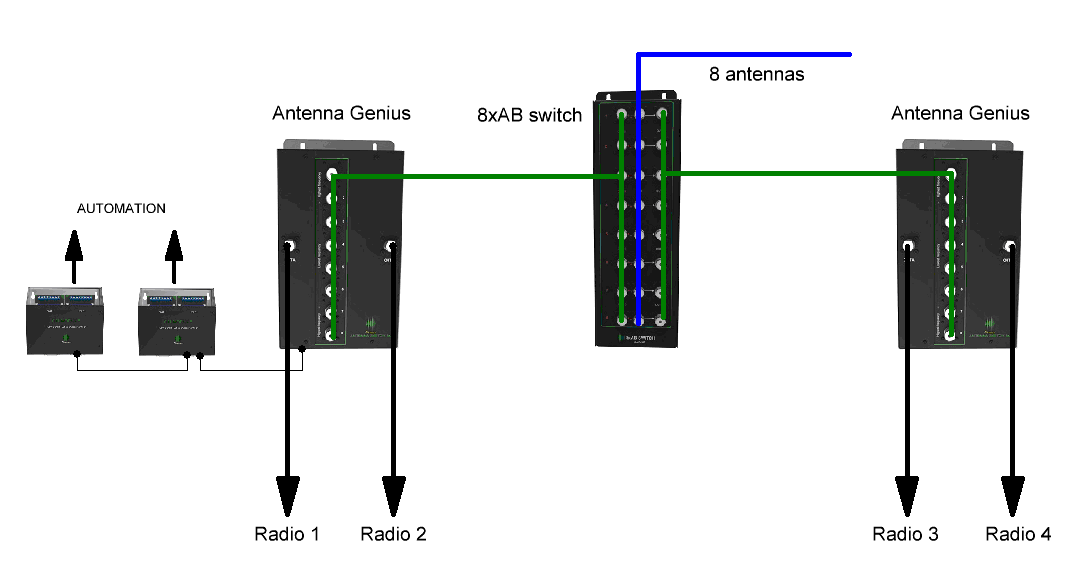

4 radios - 8 antennas

4 radios - 8 antennas

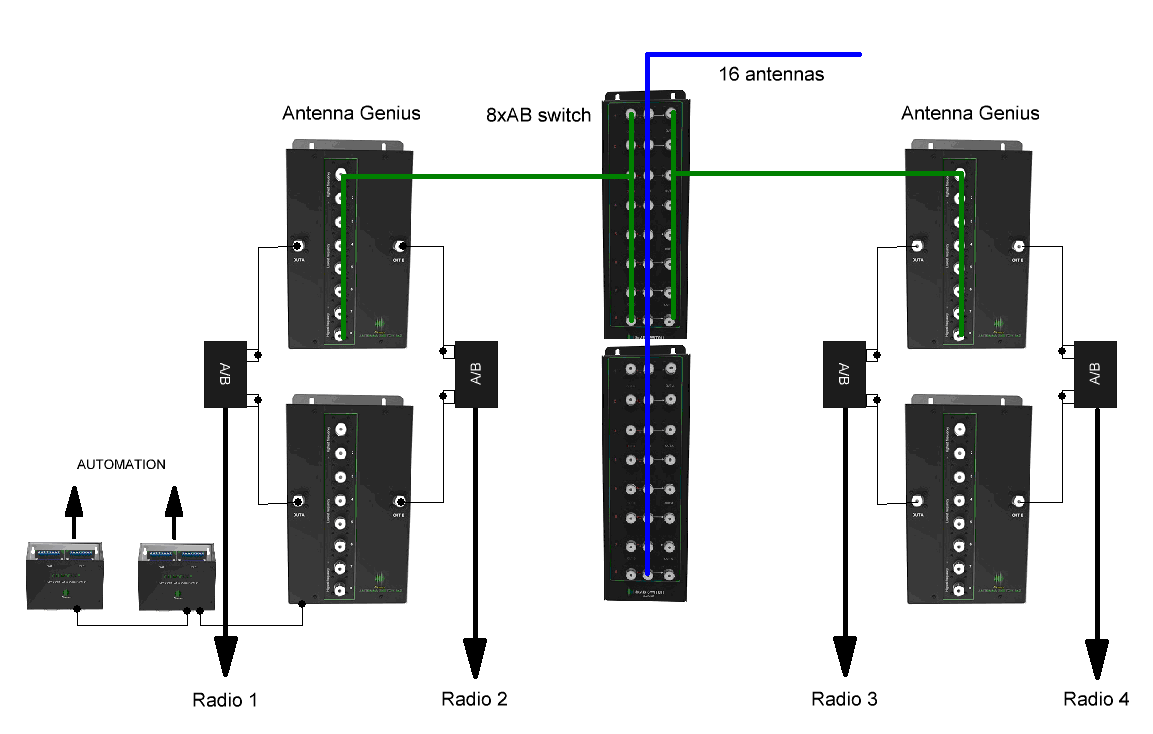

4 radios - 16 antennas

4 radios - 16 antennas

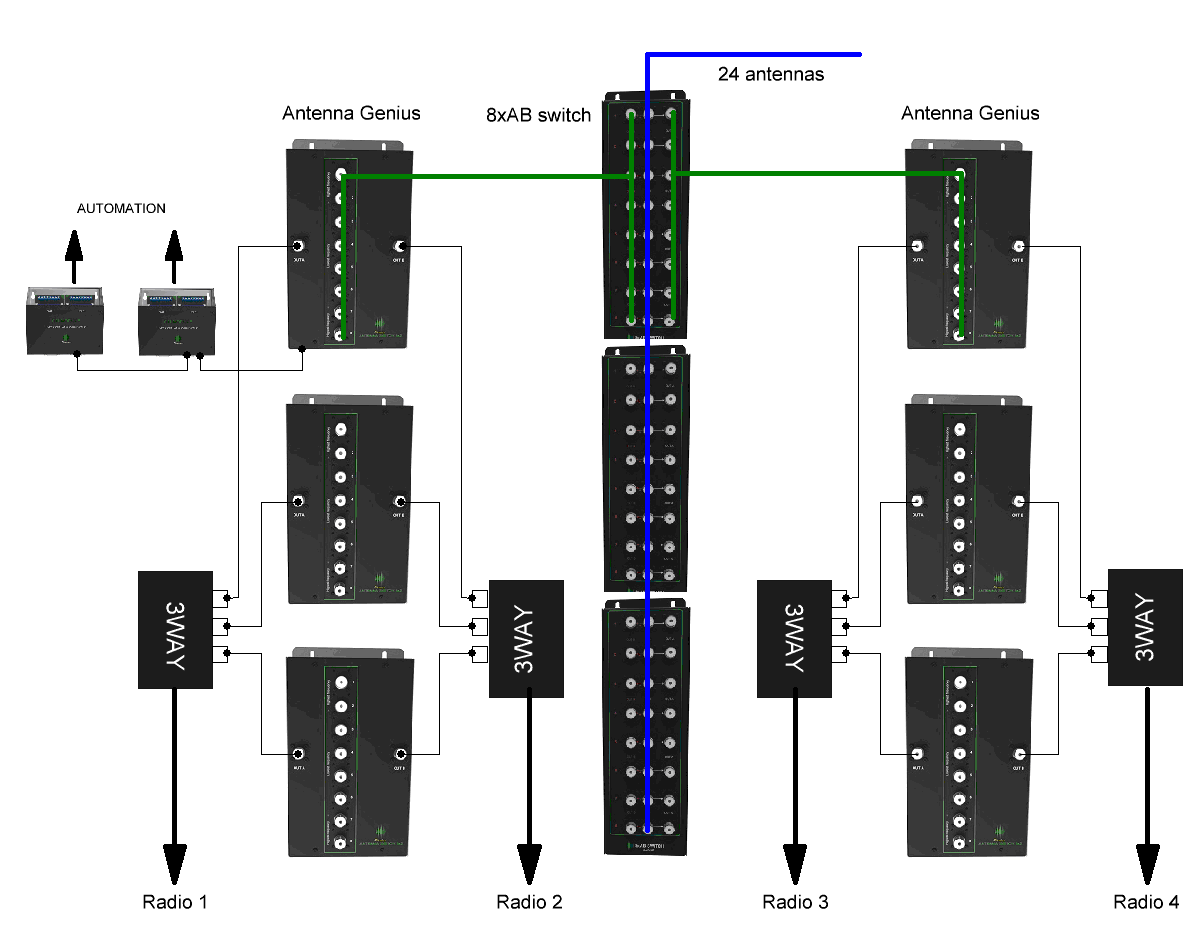

4 radios - 24 antennas

4 radios - 24 antennas

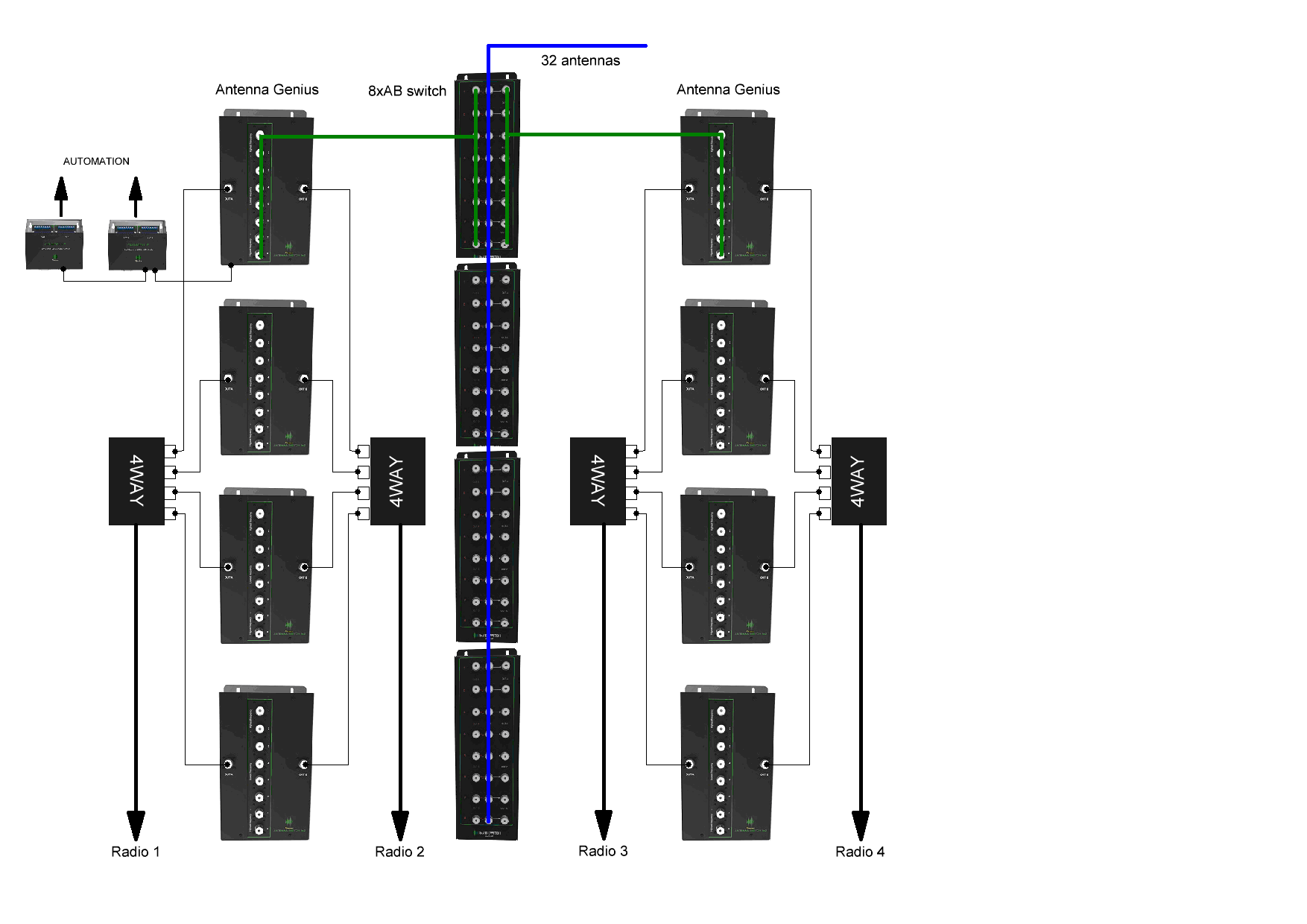

4 radios - 32 antennas

4 radios - 32 antennas



Check our YouTube videos:

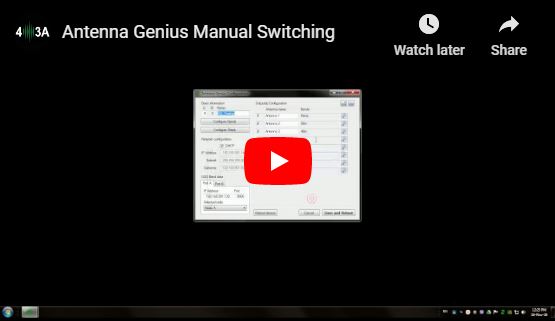

Antenna Genius Manual Switching

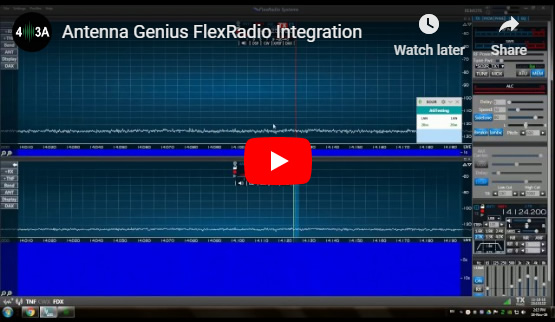

Antenna Genius FlexRadio Integration

Third Party Software Support

Antenna Genius control is officially supported and by N4PY software. Communcation is performed using a TCP/IP connection insuring maximum stabillity and reliability. For more information consult the N4PY help files.
