8x2 Antenna Switch
Product Code
228
449.00€
High performance eight antennas to two radios high isolation antenna switch.
Features:
- A built in hardware interlock system. A signle antenna can not be used on both radios at the same time.
- 4000W power rated.
- Wire controlled by a mechanical switch, Station Genius, SAC X or any other band decoder.
- The mechanical antenna switch, Station Genius and SAC X are not included but can be purchased separately.
- Control connectors on bottom of the case makes installing, replacing and repairing fast and easy.
- LED control diodes for visual monitoring of device.
- 4O3A style high isolation.
- Easy to install anywhere in the shack.
- Input conectors are SO 239 or N type conectors. (notify on order)
- Compatible with all +12V source driver band decoders.
- Factory preset on +12V signals.
- Unselected antenna ports are grounded.
- Without power all antenna ports are grounded.
- Each device is individualy trimed and tuned for best performance.
| Specifications | |
| Connectors: | N or SO-239 (PL, UHF) |
| Power Handling: | 4000 W |
| Isolation between ports: | 70 dB nominal |
| Unused ports: | Grounded |
| Dimenzions: | 30H x 17.5W x 7D (cm) |
| Weight: | 1.5 kg |
| Control signal: | +12 V |
| Power requirement: | 100 mA |

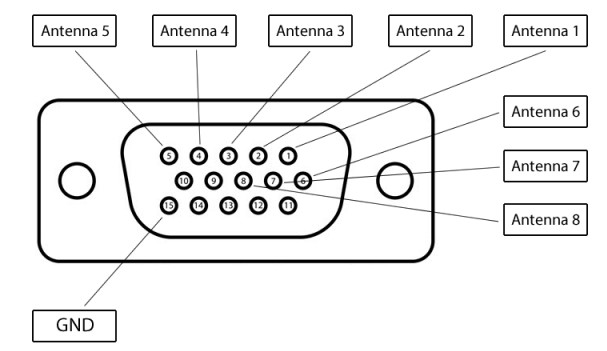

| Control connectors: | DB9 with LED indication |
| Interlock: | Built in with relay system which prevents connection of antennas to more than one output |
